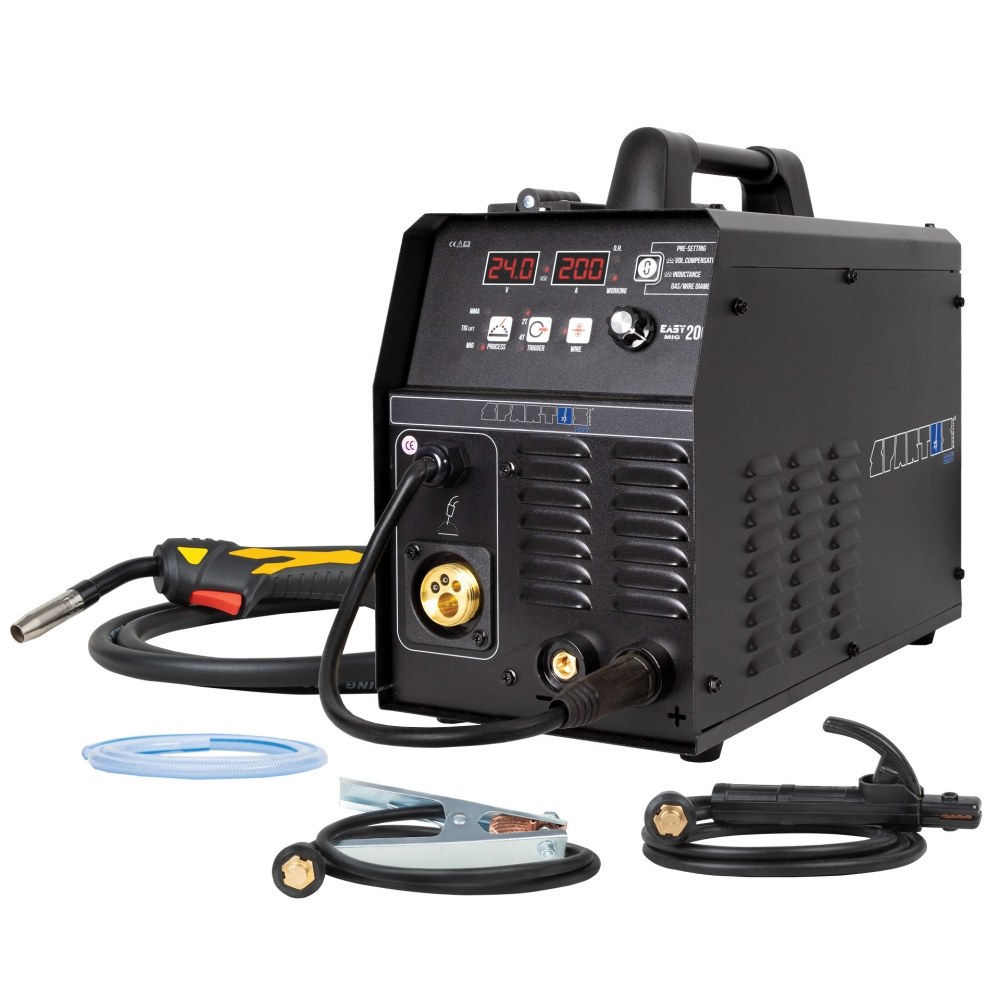

EasyMIG 200 package
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.6, 0.8, 1.0mm |
| MIG welding current | 40 – 200A |
| MIG duty cycle | 60% |
| Output working voltage | 16 – 24V |
| Wire feeder | built-in, 2-roll gear |
| Wire feeding speed | 3 – 18m/min |
| Welding wire spool | ≤ 5kg / ∅200mm |
| Synergy | 1 |
| TIG Lift | 1 |
| 2T/4T Control | 1 |
| TIG welding current | 20 – 160A |
| MMA welding current | 20 – 160A |
| Power factor (cosφ) | 0.93 |
| Additional MIG functions | Burn Back, Pre-gaz, Post-gaz, regulacja indukcyjności |
| Efficiency η | 85% |
| Insulation class | F |
| Protection class | IP21S |
| Weight | 10kg |
| Dimensions | 400 x 195 x 270mm |
| Down slope | 60% |
| Current consumpiton | MIG 26.4A / TIG 14.4A / MMA 23.2A |
Περιγραφή
SYNERGIC MIG 3 in 1
SPARTUS® EasyMIG 200 is a semi-automatic welding machine made in inverter technology. Allows welding in an inert and active gas shield (MIG/MAG), coated electrode (MMA) and TIG Lift with arc ignition.
Maximum welding current for MIG method is 200A, and for MMA and TIG Lift – 160A. The unit is powered from a single-phase network 230V.
The easy-to-use control panel allows for quick adjustment of welding parameters. EasyMIG 200 is characterized by a simple synergy in which only the wire diameter is determined for the selected gas. The machine has functions supporting the welding process:
- 2T/4T,
- Burn Back,
- inductance adjustment,
- voltage compensation.
Light EasyMIG is equipped with a two-roll welding wire feeder, which ensures smooth and even feeding of the welding wire. Exemplary applications: workshop works, outside site repairs, automotive.
