EasyMIG 210LED package
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.6 / 0.8 / 1.0mm |
| MIG welding current | 50 – 200A |
| MIG duty cycle | 60% |
| Wire feeder | built-in, 2-roll gear |
| Output working voltage | 16.5 – 24V |
| Wire feeding speed | 2 – 12.5m/min. |
| Hot Start | 1 |
| Welding wire spool | ≤ 5kg / ∅200mm |
| Synergy | 1 |
| 2T/4T Control | 1 |
| Power factor (cosφ) | 0.73 |
| Efficiency η | 77% |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 10kg |
| Dimensions | 470 x 190 x 330mm |
| VRD | 1 |
| Arc Force | 1 |
| Current consumpiton | MIG 39 / TIG 29 / MMA 34 |
Περιγραφή

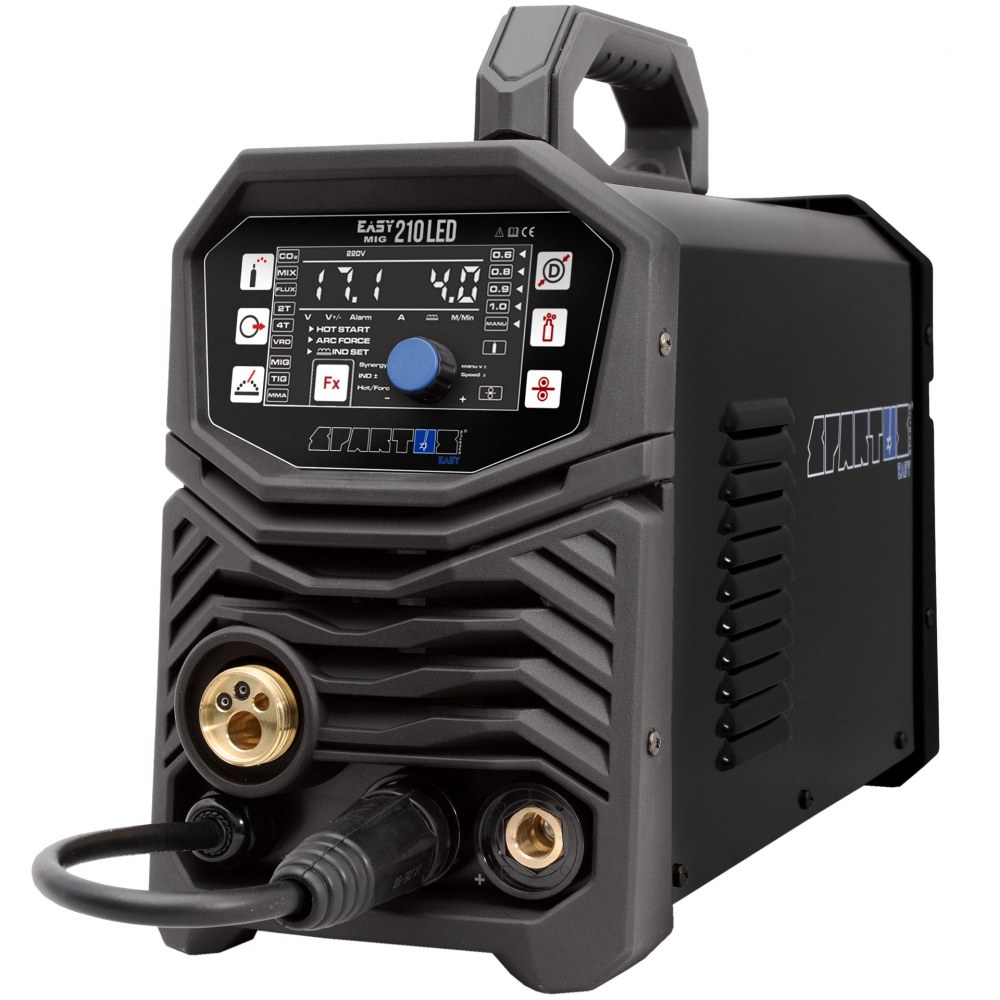

EasyMIG 210LED – A SMALL AND SIMPLE SYNERGIC INVERTER WELDING MACHINE
SPARTUS® EasyMIG 210LED is a small semi-automatic welding machine made of inverter technology using IGBTs. Enables welding methods: MIG/MAG, TIG Lift current up to 200A and MMA to 160A. It is powered from single phase 230V source power.
A PORTABLE INVERTER WELDING MACHINE FOR EVERYONE
EasyMIG 210LED is an intuitive welding device characterized by simplicity that novice welders will certainly appreciate. Thanks to its low weight and compact design, it is perfect as a portable semi-automatic welding machine. Any maintenance work in the field is the perfect job for this machine.

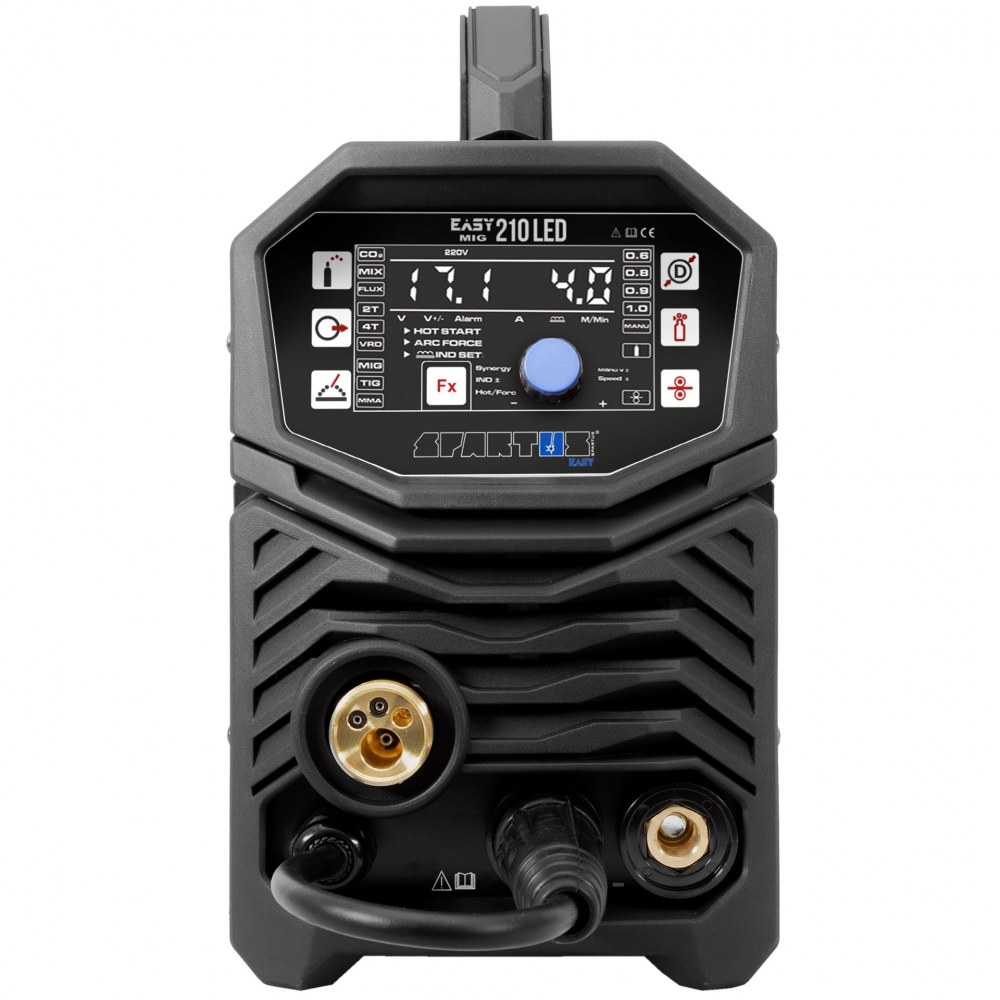

A simple and intuitive LED display allows you to easily manage the parameters of the welding machine.
3 WELDING METHODS IN ONE MACHINE
MIG SYNERGY
SPARTUS® EasyMIG210LED is equipped with synergistic programs for MIG / MAG welding with steel wires in the range diameter 0,6 / 0,8 / 1,0 mm. In addition, the machine has an ability to manually adjust set parameters. Other parameters will be adjusted by the device automatically.
Devices have a number of functions that support MIG / MAG welding processes:
- Inductance – control the width and depth of fusion, reduce the amount of welding splashes
- Possibility of welding in two operating modes: 2T/4T.
Manual mode
The device also works in manual mode. It allows you to set all welding parameters in accordance with the individual requirements of the user.
Polarity change
External change of welding polarity in EasyMIG 210LED, enables welding with self-shielding wires without gas.

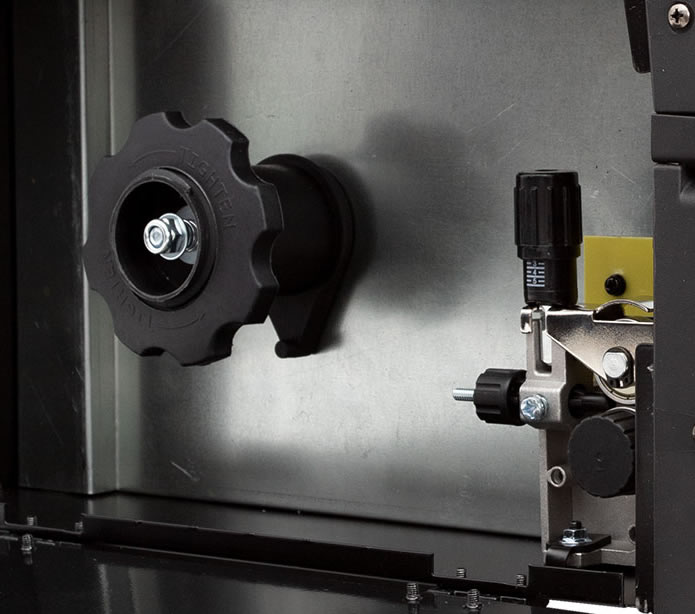

Wire feeder
Built-in two-roll wire feeder ensures stable feeding of welding wire. A small spool significantly relieves the machine, which is an undoubted advantage during transport.
TIG Lift welding
EasyMIG 210LED enables welding with the TIG Lift method at a high 60% duty cycle. The device works with a TIG gun with a valve (recommended SPE17V-4-H100-X-SK35)
MMA welding
The machine allows for basic MMA welding. Built-in functions to support this process include:
-
Hot Start – for easier electrode ignition
-
Arc Force – for easier welding in forced positions
-
VRD – lower no-load voltage, increased work safety.
APPLICATION
SPARTUS® EasyMIG 210LED is made in accordance with the latest trends in the production of welding equipment. Compact size and simplicity make this machine a perfect device for minor repairs and renovations. It is also used in widely understood hobby and workshop works.

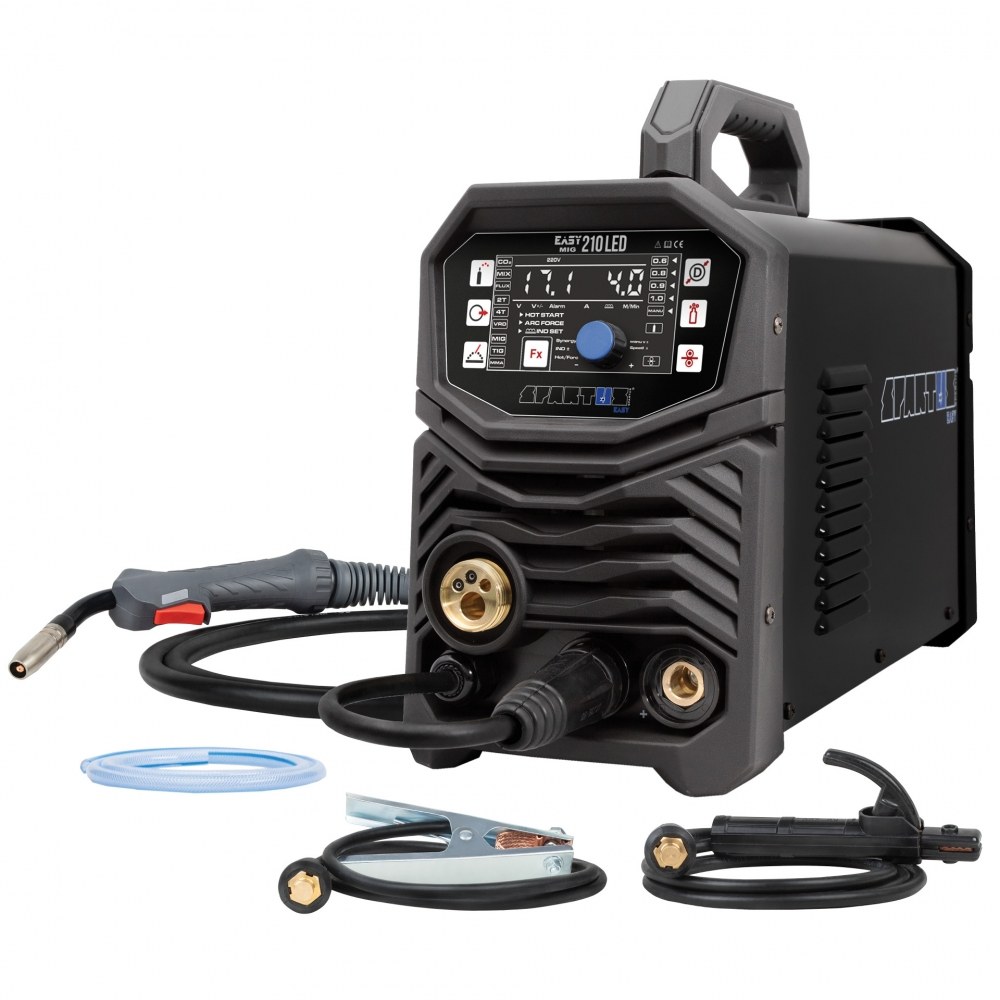

EQUIPMENT
SPARTUS® EasyMIG 210LED is available in a dedicated package. In addition to the source, the package includes a set of MMA cables, gas hose and EasyMIG 150 MIG gun. Such a package makes the EasyMIG 210LED machine is fully ready to work.
