EasyMIG 215 package
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.6, 0.8, 1.0mm |
| MIG welding current | 50 – 200A |
| MIG duty cycle | 60% |
| Wire feeder | built-in, 2-roll gear |
| Output working voltage | 16.5 – 24V |
| Wire feeding speed | 2 – 12.5m/min |
| Hot Start | 1 |
| Welding wire spool | ≤ 5kg / ∅200mm |
| Synergy | 1 |
| TIG Lift | 1 |
| 2T/4T Control | 1 |
| TIG welding current | 10 – 200A |
| MMA welding current | 10 – 180A |
| Power factor (cosφ) | 0.76 |
| Additional MIG functions | regulacja indukcyjności, spool gun, test drutu, zmiana biegunowości |
| Efficiency η | 85% |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 12kg |
| Dimensions | 490 x 230 x 330mm |
| VRD | 1 |
| Arc Force | 1 |
| Current consumpiton | MIG 32A / TIG 26A / MMA 33A |
Περιγραφή
SYNERGIC MIG WITH LCD DISPLAY

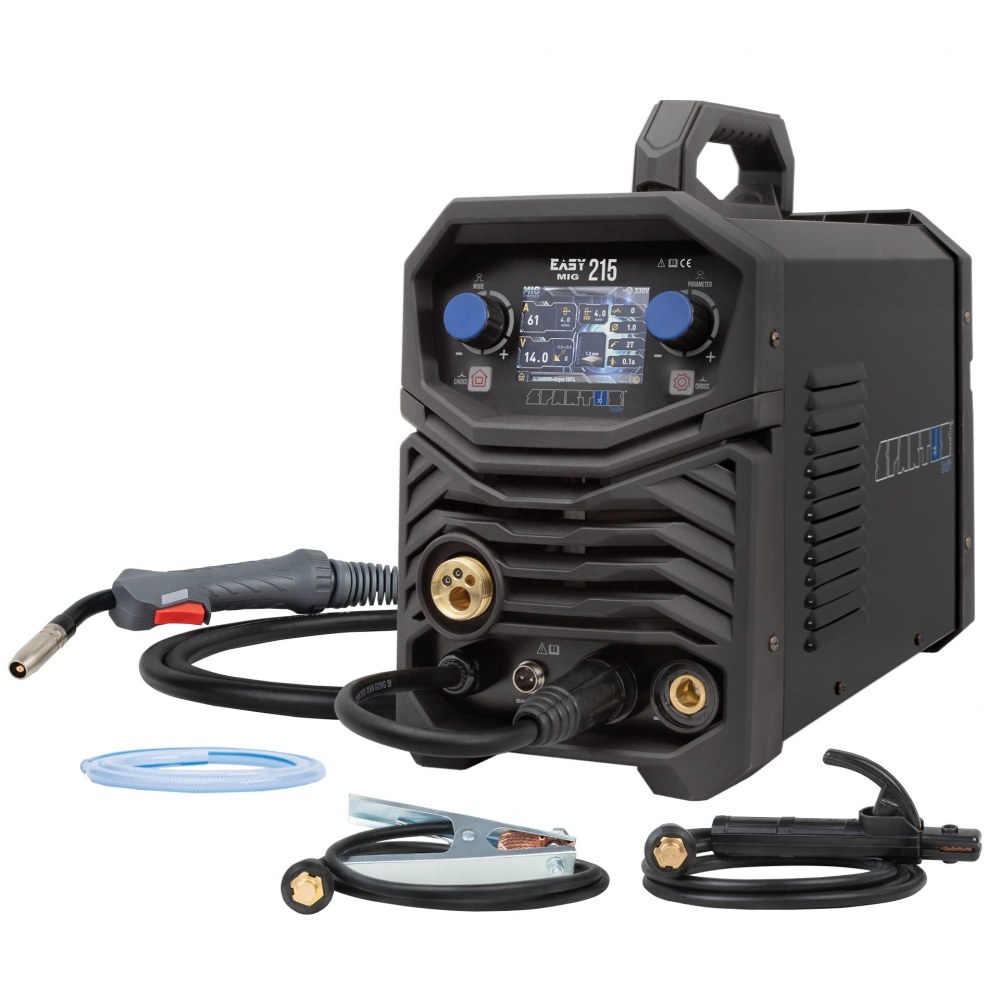

SPARTUS® EasyMIG 215 is a modern, inverter welding semi-automatic machine, based on IGBT transistors. It enables welding by means of a consumable electrode shielded by inert (MIG) or active (MAG) gases, welding with coated electrode (MMA) and TIG lift welding. In addition, the machine thanks to the ability to change the polarity of welding, enables welding with flux cored welding wire without gas.
SPARTUS® EasyMIG 215 is equipped in synergy system for MIG/MAG welding with steel wire of 0.6 / 0.8 /1.0 mm diameter and 1.0mm aluminium wire with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, aluminium, core wire welding. The machine works also in manual welding mode.
Easy change of polarity allows a gas-free self-shielding wire welding.
Thanks to the use of modern technological solutions, the welder is equipped with a number of functions supporting the welding process:
- 2T / 4T – possibility to choose one of two operating modes (MIG/ MAG)
- Welding inductivity regulation — face fusion width and deep control (MIG/MAG), reduction of welding splinters
- Hot Start – an easier electrode ignition (MMA)
- Arc Force – an easier welding in forced positions (MMA)
- VRD – reduced no-load voltage (MMA)
The modern LCD allows an easy and quick setting of the welding voltage and to manage the machine functions. When the parameters are corrected, the display suggests the weld shape and shows graphically the recommended thickness of the material for the given current.
Professional two-roller feeder allows smooth and uniform feed of the welding wire. Stable output parameters ensure obtaining high-quality weld.
Examples of use: workshop, portable repair, automotive, exhaust silencer welding.
