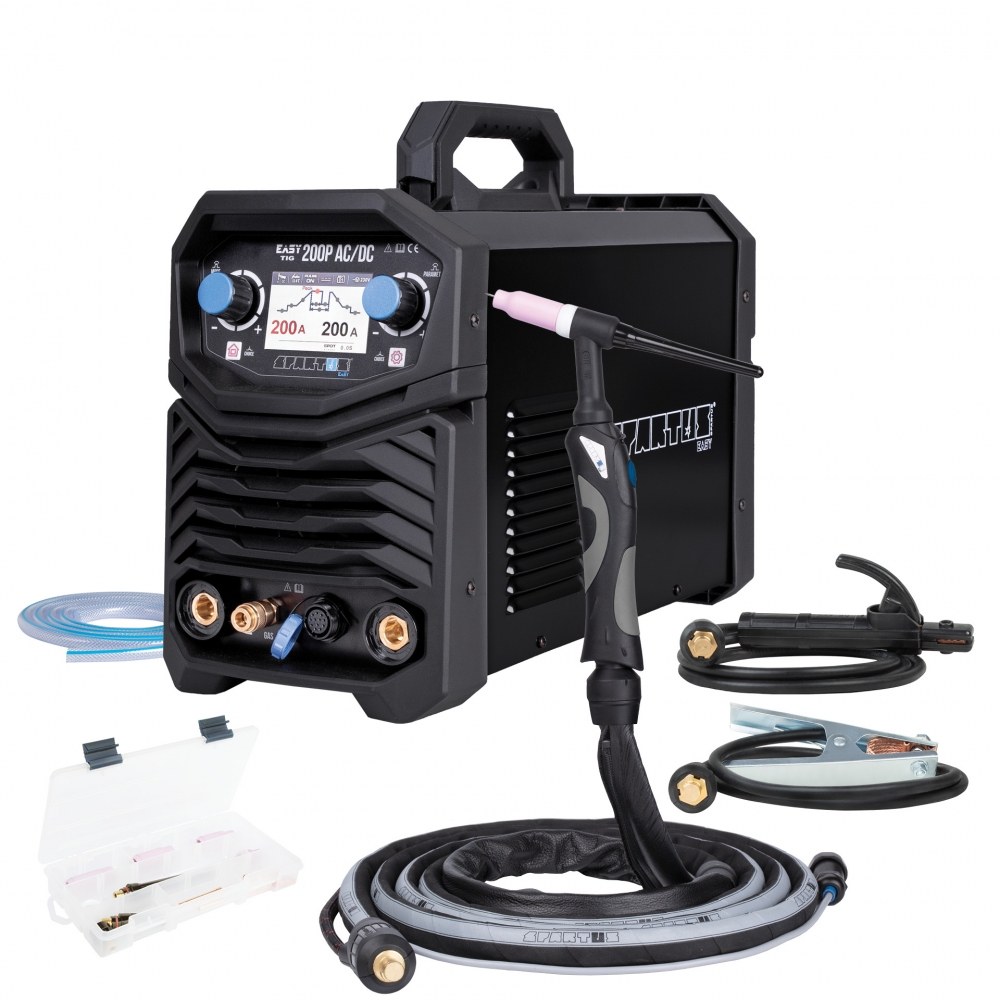

EasyTIG 200P AC/DC package with TIG torch mini SPE 17 – 8m
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| TIG duty cycle | 35% |
| Up slope | 0 – 5s |
| Hot Start | 1 |
| 2T/4T Control | 1 |
| TIG welding current | AC HF 10 – 200A / AC Lift 30 – 200A / DC 10 – 200A |
| SPOT welding | 1 |
| MMA welding current | 10 – 200A |
| Power factor (cosφ) | 0.73 |
| Efficiency η | 85 |
| AC wave forms | prostokątny, sinusoidalny, trójkątny |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 11 |
| Arc ignition | HF, bez HF |
| Dimensions | 490 x 225 x 340mm |
| Gas pre flow | 0 – 1s |
| Gas post flow | 0.1 – 10s |
| Down slope | 0 – 5s |
| TIG Pulse | 1 |
| Pulse Amps | 10 – 200A |
| No-load voltage | 60V |
| Pulse Width | 5 – 100% |
| Pulse frequency | 0.5 – 200Hz |
| AC frequency | 40 – 250 |
| AC balance | 20 – 80% |
| Arc Force | 1 |
| Current consumpiton | TIG 36 / MMA 43A |
| TIG | AC/DC |
Περιγραφή
SPARTUS® EasyTIG 200P AC/DC is digitally controlled inverter welding machine, constructed on the basis of IGBTs and PWM technology. Allows welding AC/DC TIG and AC/DC MMA. It is powered with single-phase 230V source power.
Machine enables two methods of arc ignition: TIG HF and TIG Lift. In addition, it has a built-in pulse welding function, which is useful to join very thin elements.
The easy-to-use function panel allows precise control of all the most important welding parameters. The modern display, using the TIG function waveform, facilitates the management of advanced parameters:
-pre-gas and post–gas,
– start amps, peak current and end amps,
– up slope and down slope,
– AC frequency (with mileage control),
– AC balans (20 – 80%),
– SPOT welding
and during welding with pulsed current:
– pulse width ( 5-100%),
– base current (10-200A),
– pulse frequency (0.5 – 200Hz).
Depending on the welder’s preferences EasyTIG 200P AC/DC can work in 2T or 4T mode.
MMA welding mode (to 200A) is assisted by functions: Arc Force and Hot Start.
The machine has 6 channels on which you can set and save your own welding parameters in the device memory.
SPARTUS® EasyTIG 200P AC/DC is designed and manufactured in order to fieldwork. Despite its small dimensions and weight, it allows for advanced welding TIG method.
Examples of use: portable repair, workshop, maintenance, light constructions.
