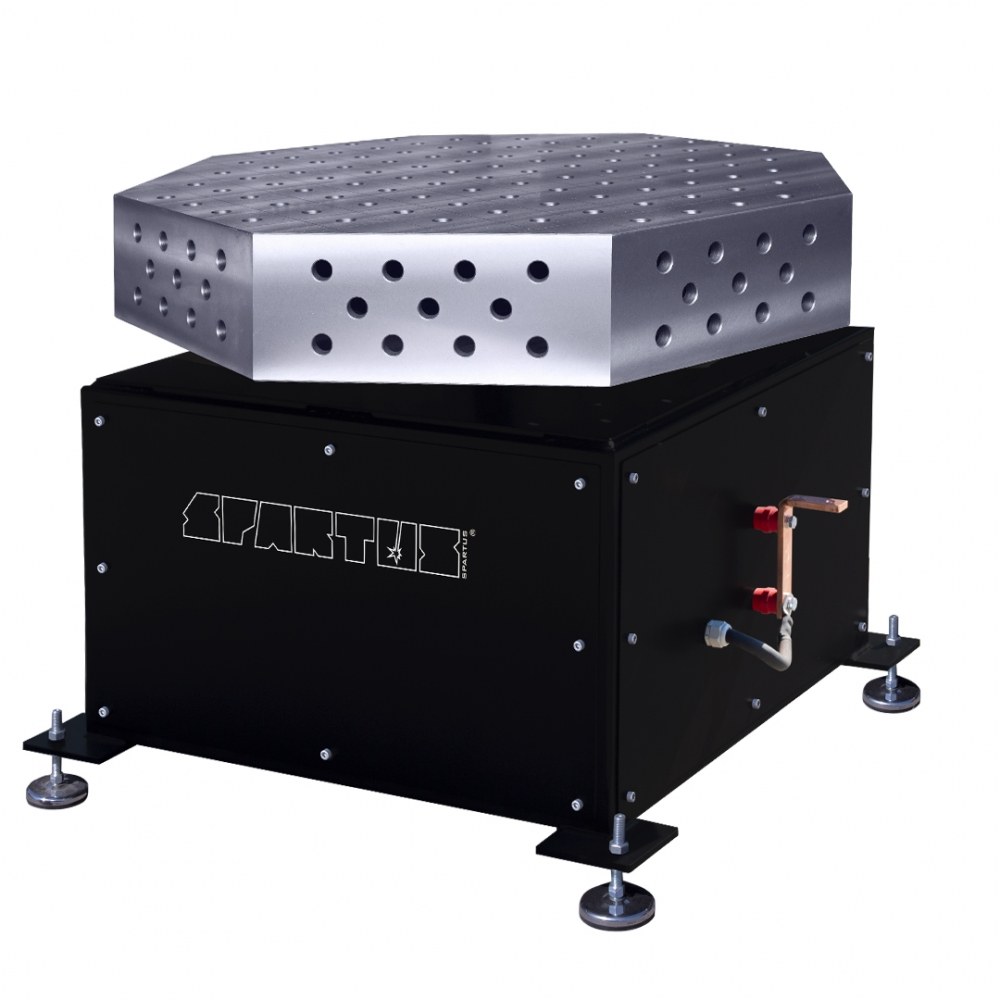

FERROS 3D 1200 x 1200 x 200 octagonal with rotary table SPARTUS® RT2000
| Size of the work surface | 1200 x 1200 x 200mm |
|---|---|
| Input | ~3× 400V ± 10% 50 / 60 Hz |
| Made | casted |
| Material | EN-GJL-300 cast iron acc. to EN 1561 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.1/1000mm |
| Table vertical precision | 0.1/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Supporting structure | Rotary table |
| Carrying capacity | 2000kg/rotary table |
| Carrying capacity with tabletop | 1520kg |
| Table top weight | 480kg |
Περιγραφή
INCREASE WORK EFFICIENCY THANKS TO MODERN SOLUTIONS!
|
|
 |
1200 x 1200 x 200mm (octagonal)
- 3D SIDE
It allows to expand the working surface and joining the table tops.
- D28 SYSTEM
Drilled and chamfered holes 28mm.

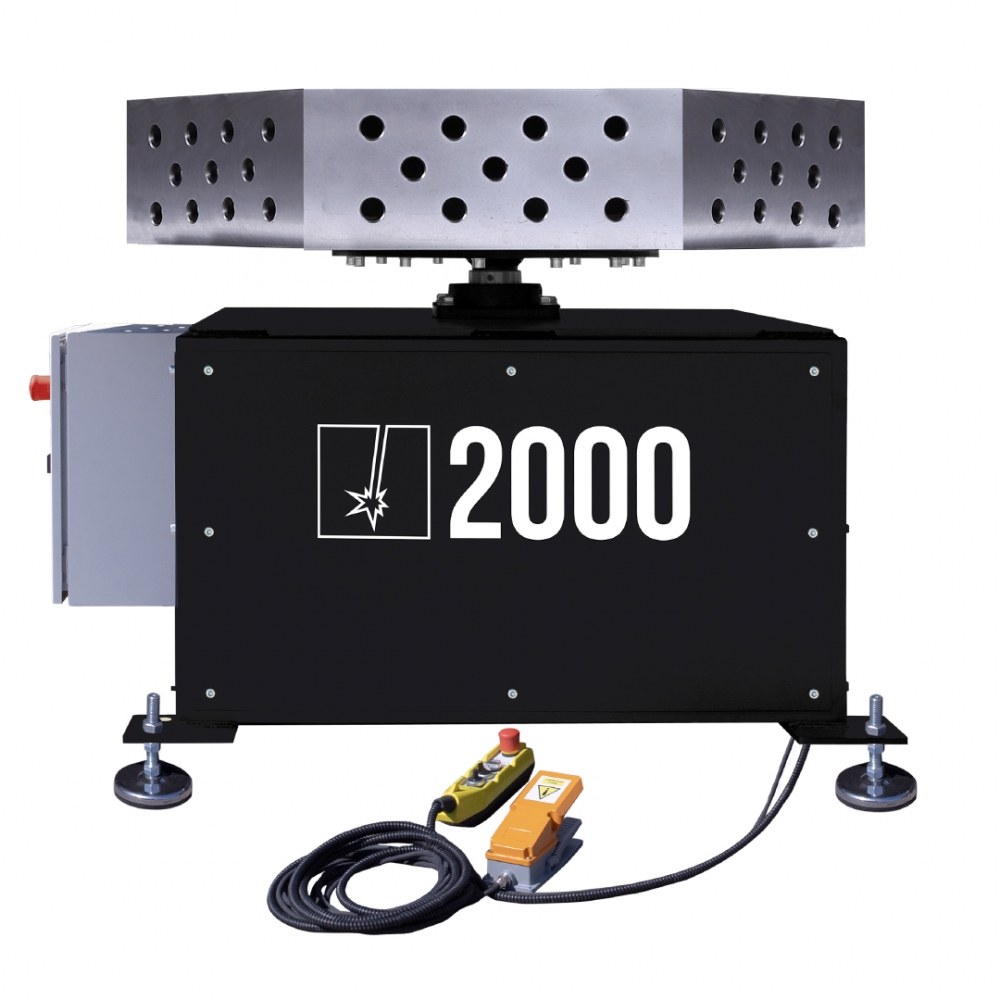

SPARTUS® ROTARY TABLES with a countertop size of 1200 x 1200 x 200.
The SPARTUS® rotary tables have been specially designed to work in a vertical position. Adjustable start at smooth rotation with smooth braking is due to the use of the highest class inverter-controlled motors. The compact and compact design of the device provides good access to the workpiece, allowing for precise and comfortable work.
Control interface: manual control panel + foot switch (on separate wires).
Advantages:
- inverter-based motor control
- control pendant for work control
- foot switch
- safety button
ACCESSORY SETS
|
Accessories SET 1 includes: SP010-30-005 Angle Bracket 175x50x75mm hole/slot 8pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 6 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 22 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 2 includes: SP010-30-002 Angle bracket 175x50x175mm hole/slot 6 pcs SP010-30-005 Angle bracket 175x50x75mm hole/slot 2 pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 8 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 20 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Olistone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 3 includes: SP010-23-300L Angle bracket 275x100x300mm left 1 pc. SP010-23-300R Angle bracket 275x100x300mm right 1 pc. SP010-23-600L Angle bracket 375x100x600mm left 1 pc. SP010-23-600R Angle bracket 375x100x600mm right 1 pc. SP010-30-002 Angle bracket 175x50x175mm hole/slot 4 pcs SP010-30-005 Angle brecket 175x50x75mm hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 6 pcs SP010-70-001 180° mounting clamp witch 300x300mm holder 10 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 22 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brush fi 30x80mm 1 pc. SP010-90-001 Olistone 200x50x25mm 1 pc. SP010-90-002 1l dispencer bottle 1 pc.
|
  |
  |
  |
|
Accessories SET 4 includes: SP010-23-600L Angle bracket 375x100x600mm left 2 pcs SP010-23-600R Angle bracket 375x100x600mm right 2 pcs SP010-30-005 Angle bracket 175x50x75 hole/slot 4 pcs SP010-30-013 Angle bracket 175x50x275mm hole/slot 6 pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-65-001A Prysm fi 60 90° 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 10 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 28 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 5 includes: SP010-23-300L Angle bracket 275x100x300mm left 1 pc. SP010-23-300R Angle bracket 275x100x300mm right 1 pc. SP010-23-600L Angle bracket 375x100x600mm left 1 pc. SP010-23-600R Angle bracket 375x100x600mm right 1 pc. SP010-23-800L Angle bracket 375x100x800mm left 1 pc. SP010-23-800R Angle bracket 375x100x800mm right 1 pc. SP010-30-002 Angel bracket 175x50x175mm hole/slot 6 pcs SP010-30-005 Angle bracket 175x50x75 hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 6 pcs SP010-50-014 Universal stop 500x100x25mm hole/slot 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 12 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 40 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 6 includes: SP010-20-050 U-shape block 500x200x200mm 2 pcs SP010-20-100 U-shape block 1000x200x200mm 2 pcs SP010-23-300L Angle bracket 275x100x300mm left 2 pcs SP010-23-300R Angle bracket 275x100x300mm right 2 pcs SP010-23-600L Angle bracket 375x100x600mm left 2 pcs SP010-23-600R Angle bracket 375x100x600mm right 2 pcs SP010-30-002 Angle bracket 175x50x175mm hole/slot 8 pcs SP010-30-005 Angle bracket 175x50x75mm hole/slot 8 pcs SP010-30-013 Angle bracket 175x50x275mm hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 8 pcs SP010-50-014Iniversal stop 500x100x25mm hole/slot 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 20 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 46 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
