FERROS 3D 1400 x 1400 x 200 octagonal with rotary positioner SPARTUS® 2000
| Size of the work surface | 1400 x 1400 x 200mm |
|---|---|
| Made | casted |
| Material | EN-GJL-300 cast iron acc. to EN 1561 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.1/1000mm |
| Table vertical precision | 0.1/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Supporting structure | Positioner |
| Carrying capacity | 1000kg/positioner |
| Carrying capacity with tabletop | 350kg |
| Total table height | 1090mm |
| Table top weight | 650kg |
| Total weight | 1210kg |
Περιγραφή
INCREASE WORK EFFICIENCY THANKS TO MODERN SOLUTIONS!
|
|
 |
1400 x 1400 x 200mm (octagonal)
- 3D SIDE
It allows to expand the working surface and joining the table tops.
- D28 SYSTEM
Drilled and chamfered holes 28mm.

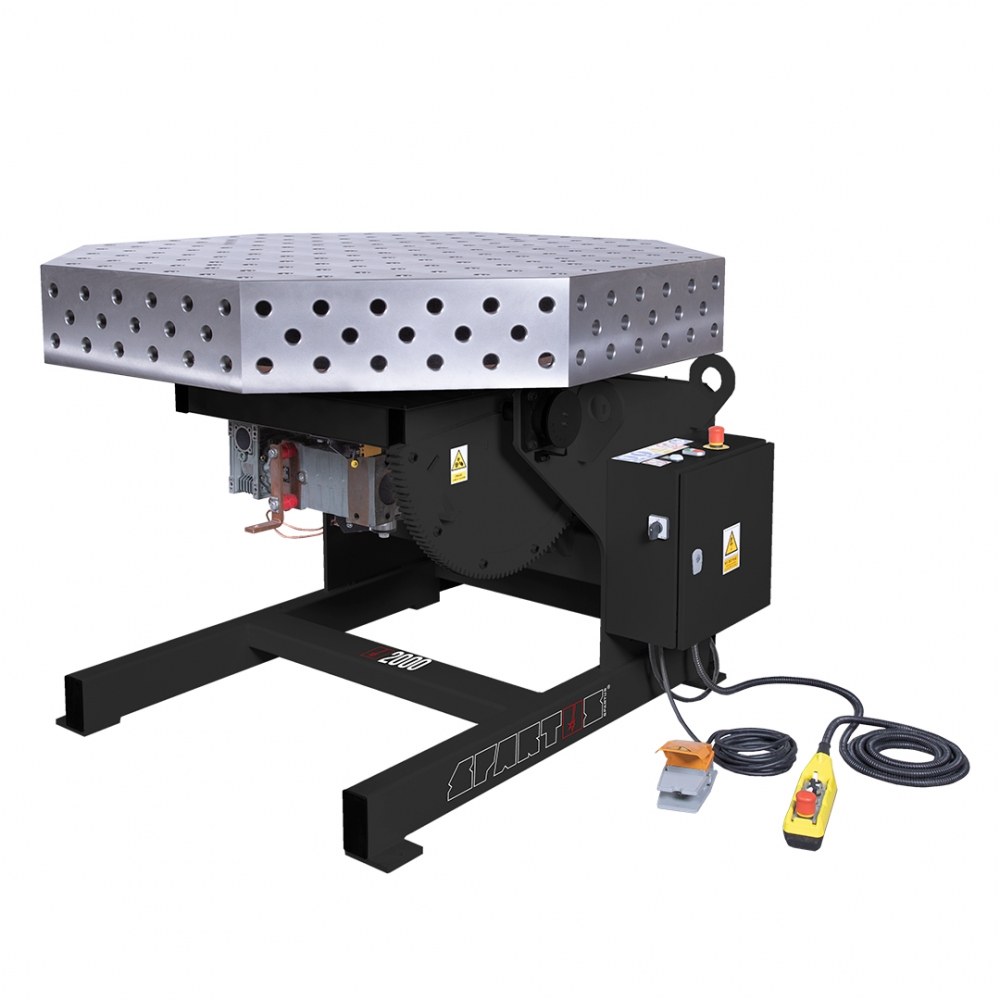

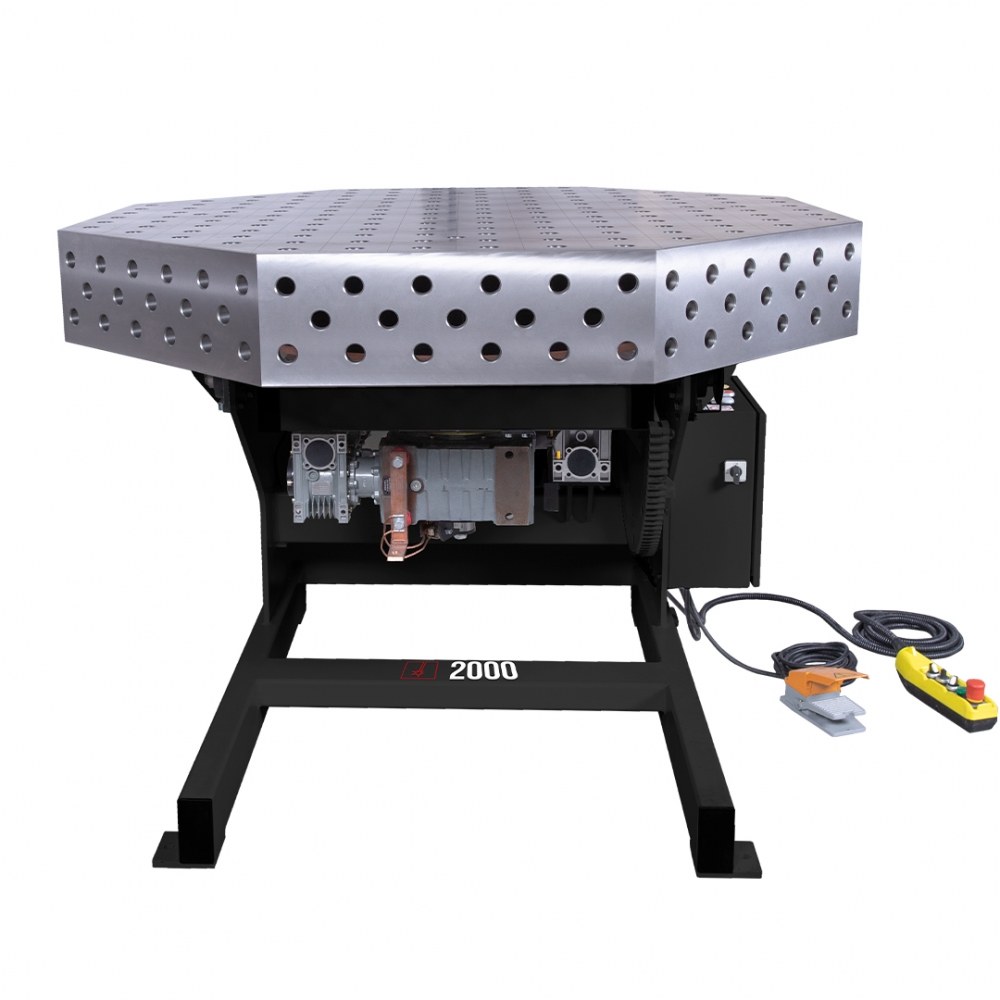

SPARTUS® welding positioners with a countertop size of 1400 x 1400 x 200.

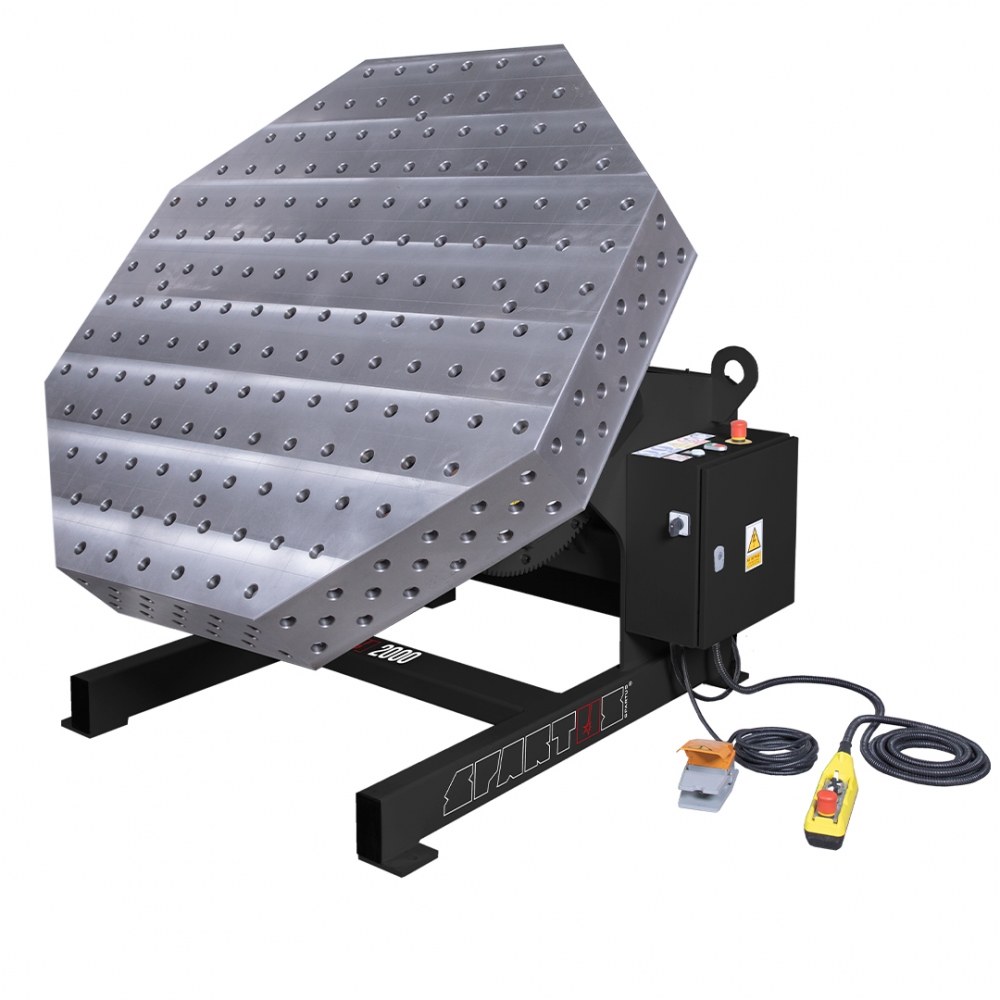

The table with a positioner allows for adjusting the workstation position according to the worker's needs. The positioner provides the ability to rotate the worktable with variable speed in both directions and change the angle of the main frame. Control is achieved through a foot pedal. The self-locking drive ensures that the rotating disc halts in any position. The positioner's mechanisms enable rotation around its own axis and deviation of the rotator up to 140° from the horizontal, while the tilt angle after mounting the tabletop is 90°. Control interface: manual panel + foot pedal (on separate cables).
Advantages:
- rotating worktable (in both directions)
- tilt angle adjustment
- smooth speed adjustment
- intuitive and convenient control
ACCESSORY SETS
|
Accessories SET 1 includes: SP010-30-005 Angle Bracket 175x50x75mm hole/slot 8pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 6 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 22 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 2 includes: SP010-30-002 Angle bracket 175x50x175mm hole/slot 6 pcs SP010-30-005 Angle bracket 175x50x75mm hole/slot 2 pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 8 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 20 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Olistone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 3 includes: SP010-23-300L Angle bracket 275x100x300mm left 1 pc. SP010-23-300R Angle bracket 275x100x300mm right 1 pc. SP010-23-600L Angle bracket 375x100x600mm left 1 pc. SP010-23-600R Angle bracket 375x100x600mm right 1 pc. SP010-30-002 Angle bracket 175x50x175mm hole/slot 4 pcs SP010-30-005 Angle brecket 175x50x75mm hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 6 pcs SP010-70-001 180° mounting clamp witch 300x300mm holder 10 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 22 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brush fi 30x80mm 1 pc. SP010-90-001 Olistone 200x50x25mm 1 pc. SP010-90-002 1l dispencer bottle 1 pc.
|
  |
  |
  |
|
Accessories SET 4 includes: SP010-23-600L Angle bracket 375x100x600mm left 2 pcs SP010-23-600R Angle bracket 375x100x600mm right 2 pcs SP010-30-005 Angle bracket 175x50x75 hole/slot 4 pcs SP010-30-013 Angle bracket 175x50x275mm hole/slot 6 pcs SP010-50-002 Universal stopper 225x50x25mm 4 pcs SP010-65-001A Prysm fi 60 90° 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 10 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 28 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 5 includes: SP010-23-300L Angle bracket 275x100x300mm left 1 pc. SP010-23-300R Angle bracket 275x100x300mm right 1 pc. SP010-23-600L Angle bracket 375x100x600mm left 1 pc. SP010-23-600R Angle bracket 375x100x600mm right 1 pc. SP010-23-800L Angle bracket 375x100x800mm left 1 pc. SP010-23-800R Angle bracket 375x100x800mm right 1 pc. SP010-30-002 Angel bracket 175x50x175mm hole/slot 6 pcs SP010-30-005 Angle bracket 175x50x75 hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 6 pcs SP010-50-014 Universal stop 500x100x25mm hole/slot 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 12 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 40 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
Accessories SET 6 includes: SP010-20-050 U-shape block 500x200x200mm 2 pcs SP010-20-100 U-shape block 1000x200x200mm 2 pcs SP010-23-300L Angle bracket 275x100x300mm left 2 pcs SP010-23-300R Angle bracket 275x100x300mm right 2 pcs SP010-23-600L Angle bracket 375x100x600mm left 2 pcs SP010-23-600R Angle bracket 375x100x600mm right 2 pcs SP010-30-002 Angle bracket 175x50x175mm hole/slot 8 pcs SP010-30-005 Angle bracket 175x50x75mm hole/slot 8 pcs SP010-30-013 Angle bracket 175x50x275mm hole/slot 4 pcs SP010-50-002 Universal stopper 225x50x25mm 8 pcs SP010-50-014Iniversal stop 500x100x25mm hole/slot 4 pcs SP010-70-001 180° mounting clamp with 300x300mm holder 20 pcs SP010-60-001 Rapid locking bolt fi 28x50mm 46 pcs SP010-90-003A Hexagon allen wrench 150mm 1 pc. SP010-90-004 Nylon brusch fi 30x80mm 1 pc. SP010-90-001 Oilstone 200x50x25mm 1 pc. SP010-90-002 1l dispenser bottle 1 pc.
|
