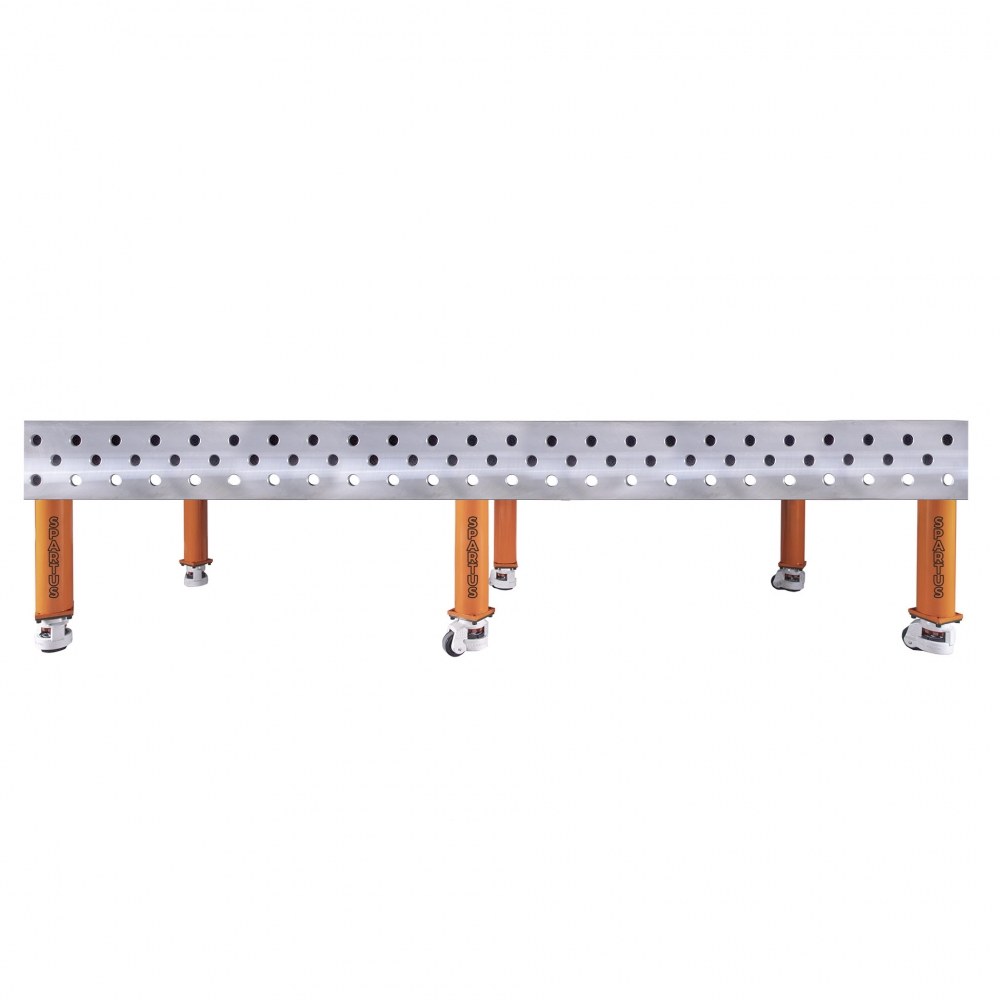

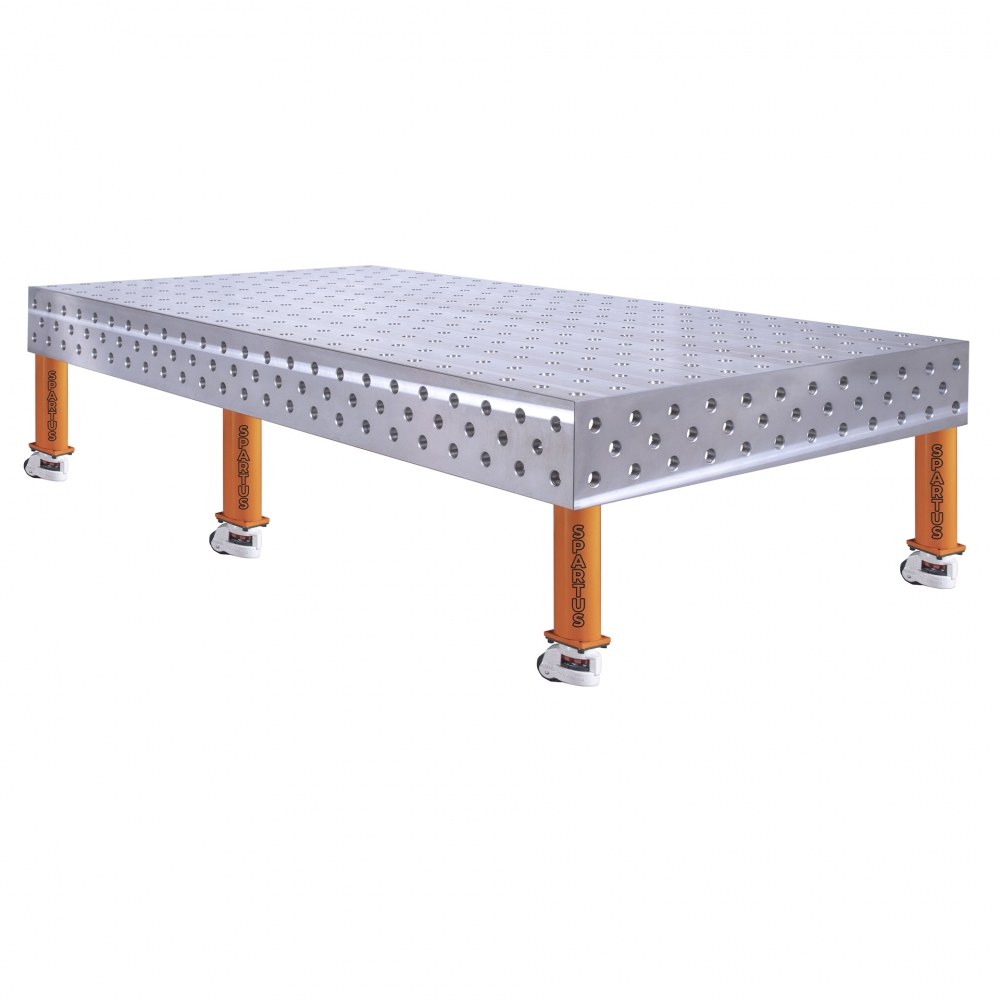

FERROS 3D 2400 x 1200 x 200 [6 table legs with wheels L=350]
| Size of the work surface | 2400 x 1200 x 200mm |
|---|---|
| Made | casted |
| Material | EN-GJL-300 cast iron acc. to EN 1561 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.1/1000mm |
| Table vertical precision | 0.1/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Carrying capacity | 2000kg/leg |
| Type of leg | with a wheel |
| Leg length | 350mm |
| Number of legs | 6pcs. |
| Total table height | 670mm |
| Table top weight | 960kg |
Περιγραφή
USE THE SPACE FOR MORE EFFECTIVE WORK OFFERED BY FERROS TABLES!
- MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.
- 3D SIDE
It allows to expand the working surface and joining the table tops.
- D28 SYSTEM
Drilled and chamfered holes 28mm.
