HERMES 3D 1200 x 1200 x 200 (+4 table legs with feet L=200)

Κωδικός προϊόντος: SP28W-12-12-200 Κατηγορίες: SPARTUS, ΔΙΑΦΟΡΑ, ΤΡΑΠΕΖΙΑ ΣΥΓΚΟΛΛΗΣΗΣ

Size of the work surface	1200 x 1200 x 200mm
Made	welded
Material	S355J2+N steel acc. to EN 10025-2
Table top thickness	25mm
Table horizontal precision	0.1/1000mm
Table vertical precision	0.1/200mm
Standard	D28 (drilled and milled holes 28mm diameter)
Carrying capacity	2000kg/leg
Type of leg	with foot
Leg length	200mm
Number of legs	4pcs.
Total table height	450mm
Table top weight	514kg

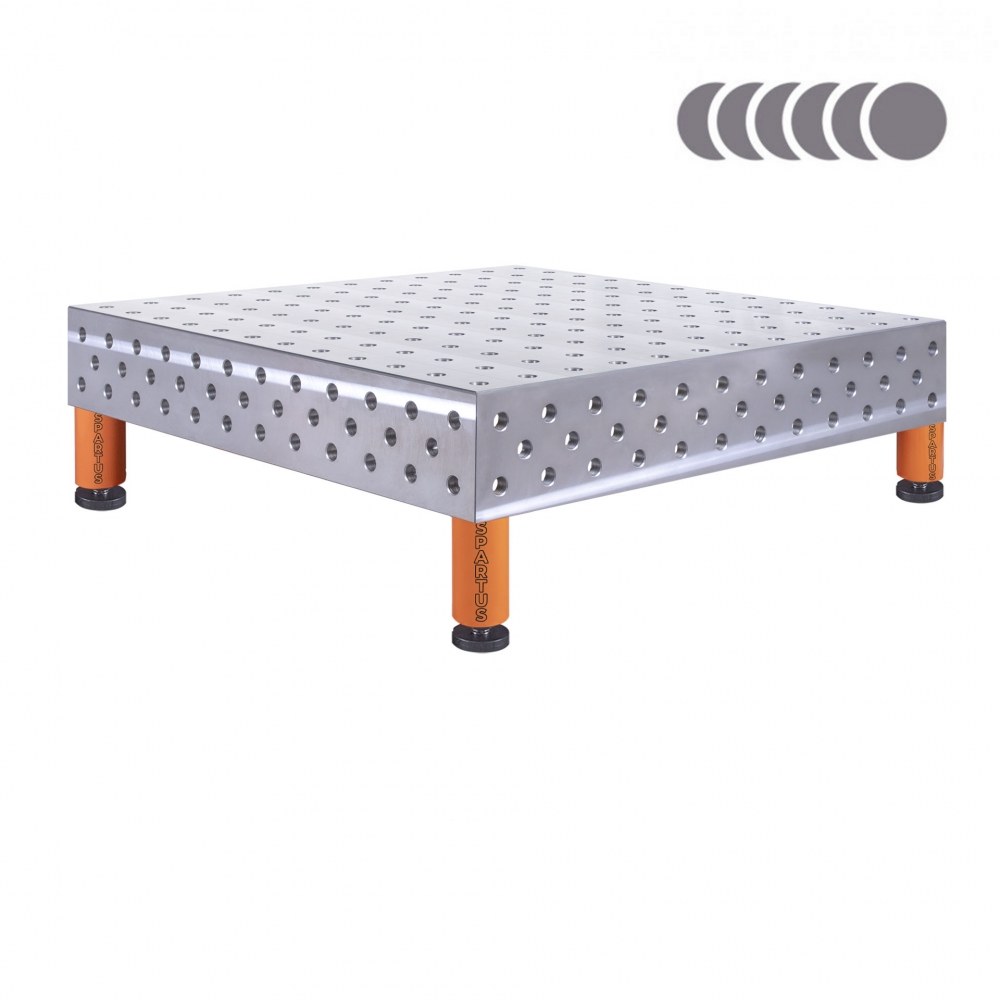

sp28w-12-12-200_01

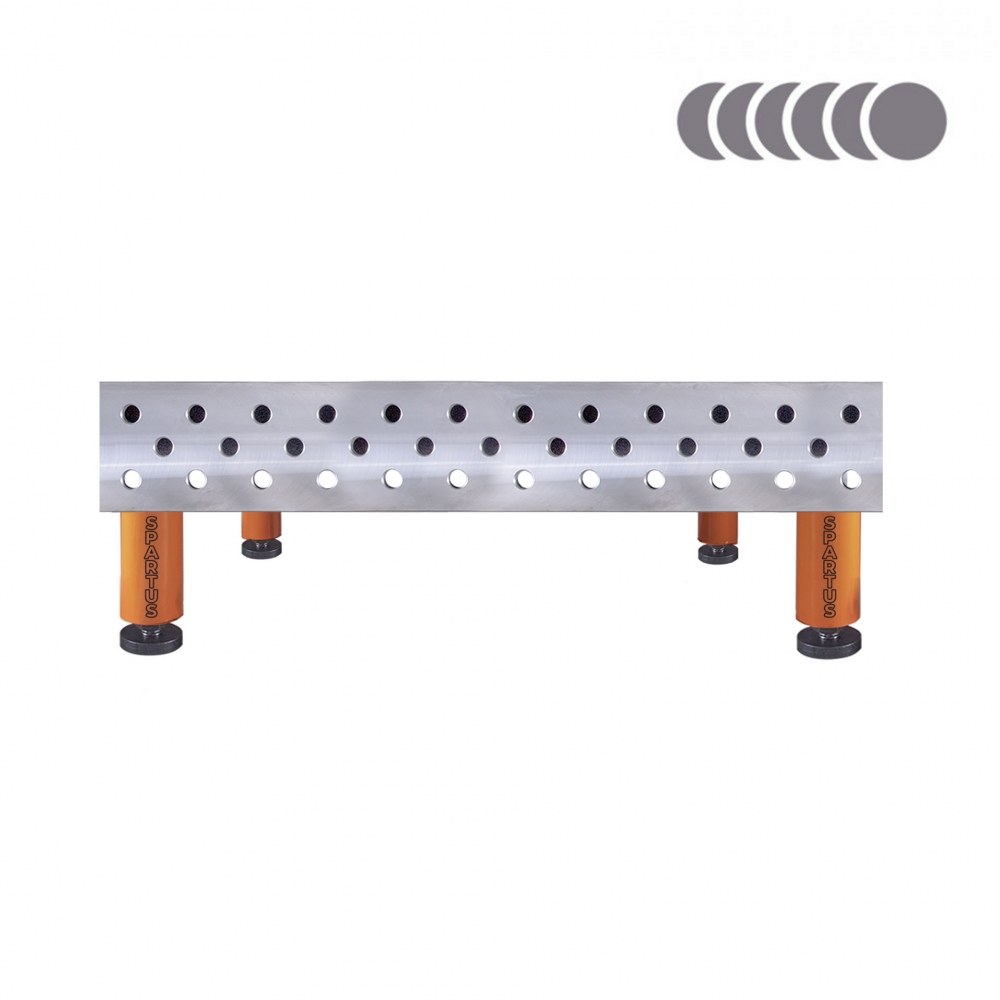

sp28w-12-12-200_02

zz99ferros-i-hermes_03

zz99ferros-i-hermes_04

Περιγραφή

RELY ON COMFORT DURING WELDING, BY USING THE HERMES TABLES!

S355J2+N STEEL
Welding table top is made of S355J2+N steel grade, which is characterized by high strength and resistance to impact and deformation,

and also provides protection against corrosion and weld spatter.

25mm TABLE TOP
The table top with a thickness of 25 mm guarantees the durability of the table and resistance to mechanical damage.

MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.

3D SIDE
It allows to expand the working surface and joining the table tops.

D28 SYSTEM
Drilled and chamfered holes 28mm.
