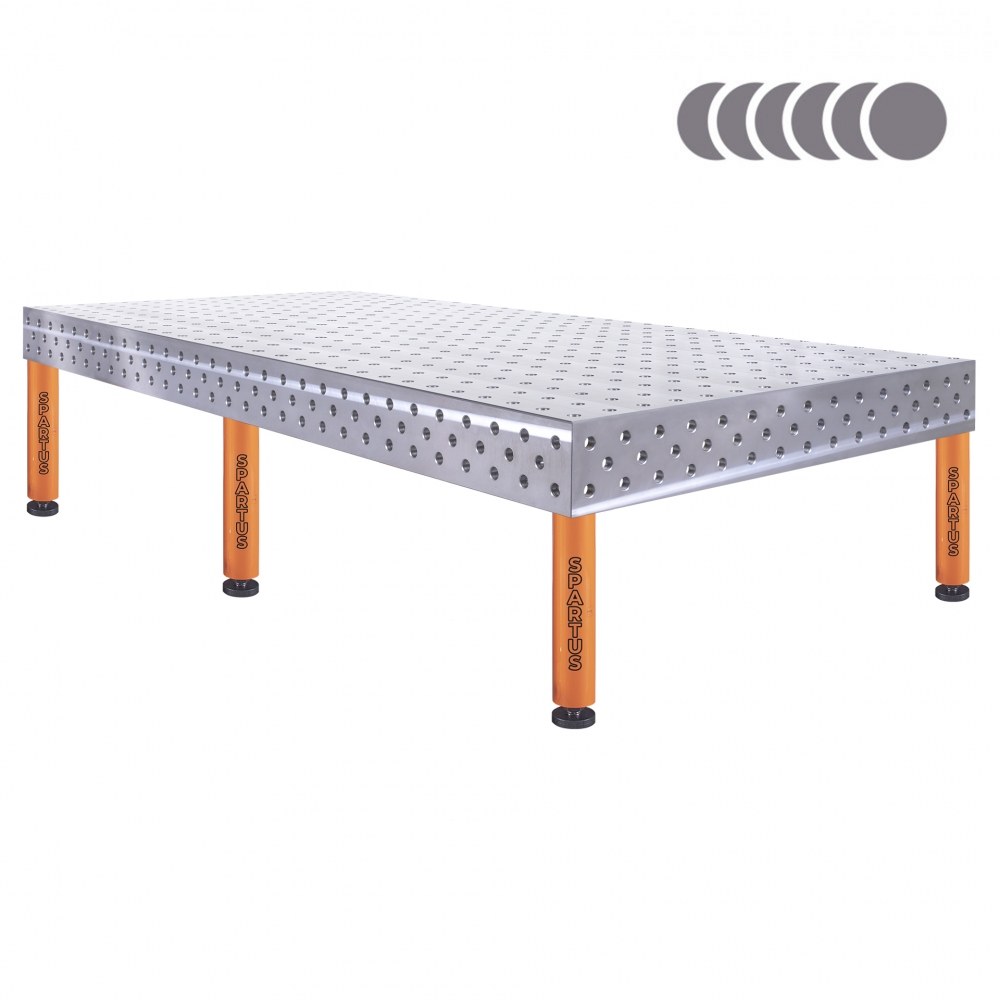

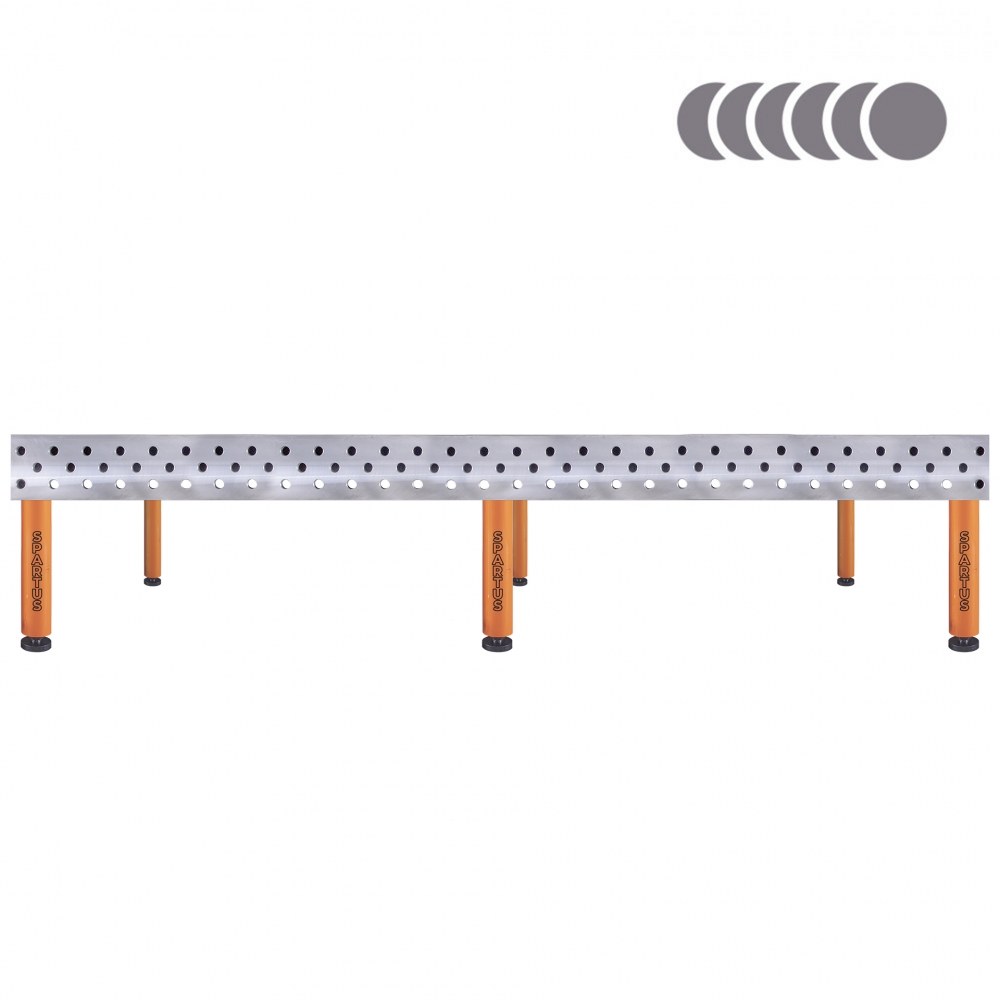

HERMES 3D 3000 x 1500 x 200 [6 table legs with feet L=450]

Size of the work surface	3000 x 1500 x 200mm
Made	welded
Material	S355J2+N steel acc. to EN 10025-2
Table top thickness	25mm
Table horizontal precision	0.1/1000mm
Table vertical precision	0.1/200mm
Standard	D28 (drilled and milled holes 28mm diameter)
Carrying capacity	2000kg/leg
Type of leg	with foot
Leg length	450mm
Number of legs	6pcs.
Total table height	700mm
Table top weight	1500kg

S355J2+N STEEL
Welding table top is made of S355J2+N steel grade, which is characterized by high strength and resistance to impact and deformation,

and also provides protection against corrosion and weld spatter.

25mm TABLE TOP
The table top with a thickness of 25 mm guarantees the durability of the table and resistance to mechanical damage.

MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.
