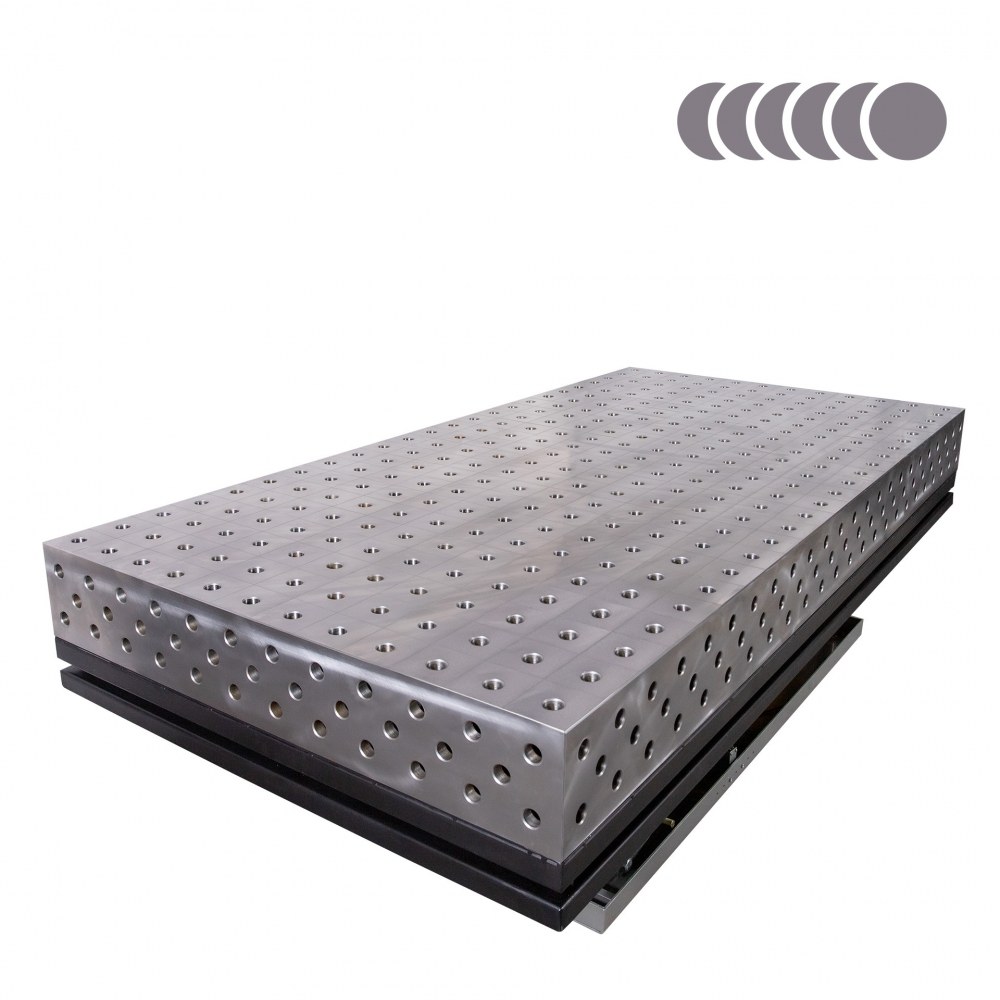

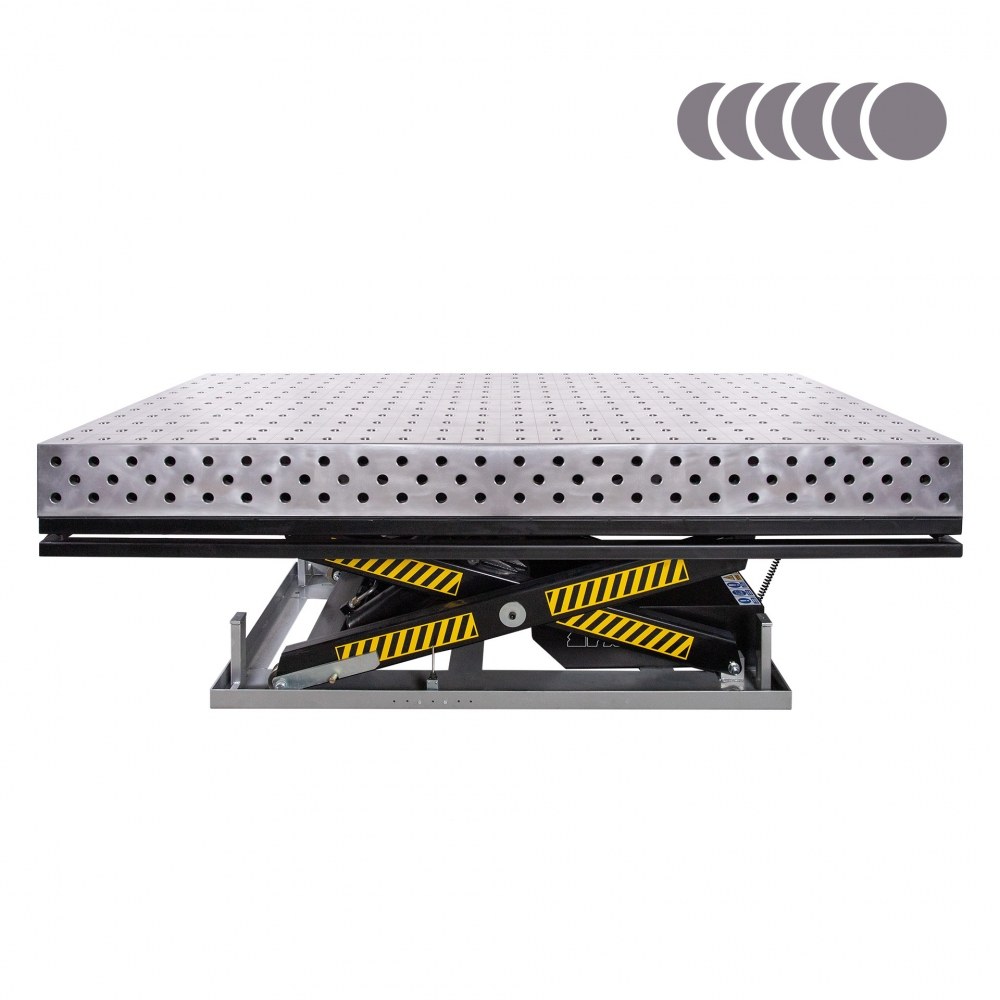

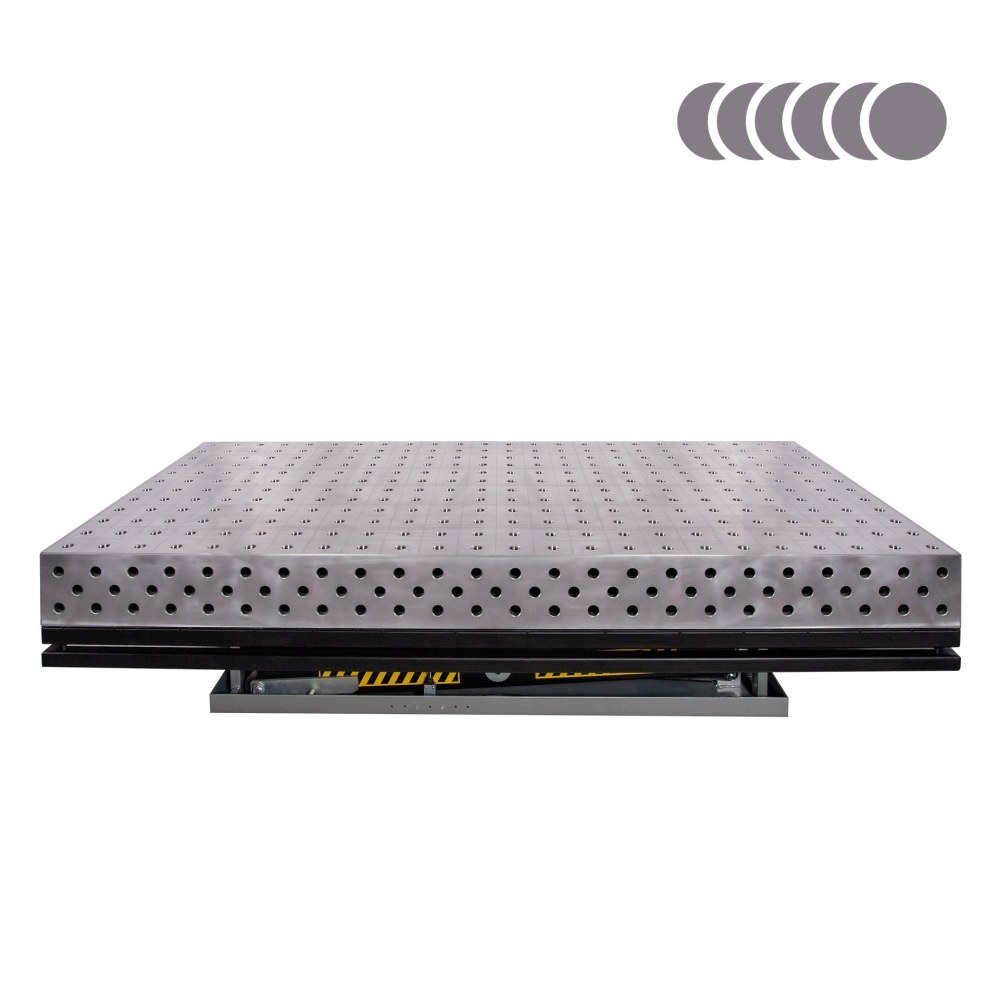

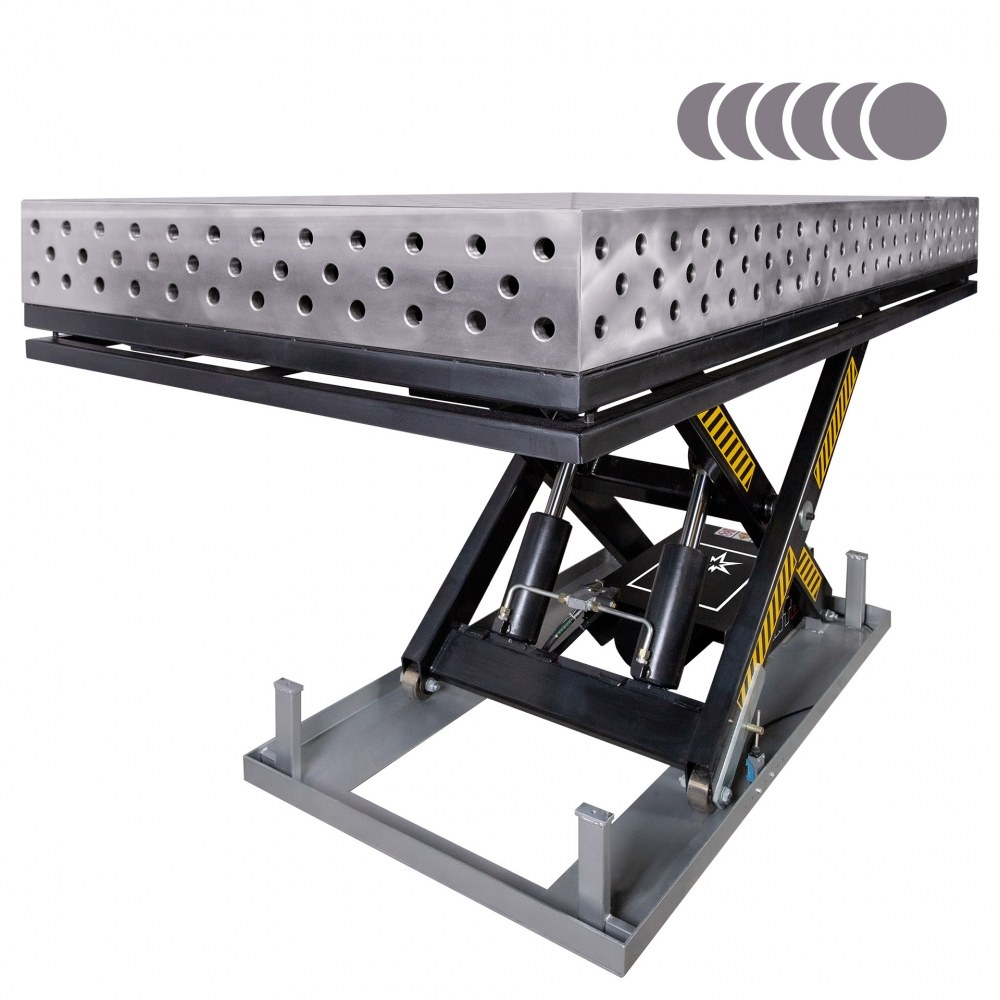

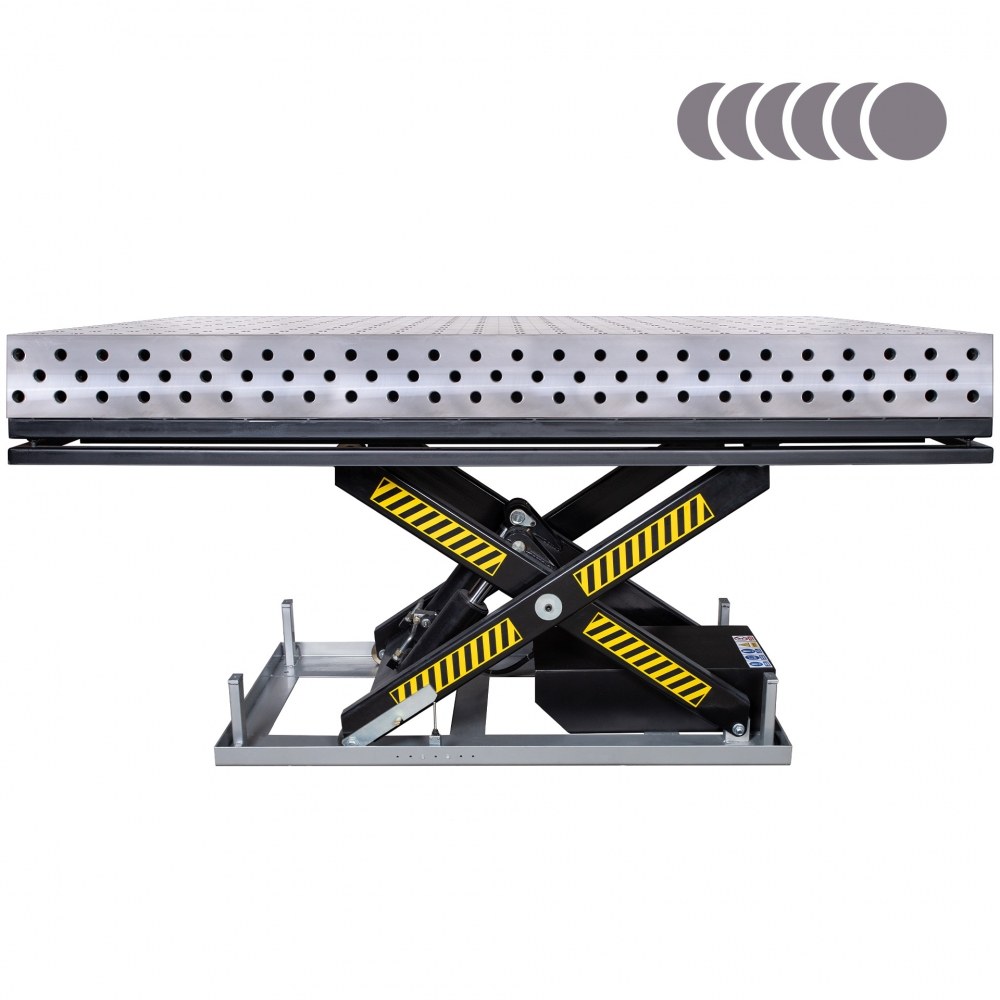

HERMES 3D mobile lift welding table 2400 x 1200 (electrohydraulic version)
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Size of the work surface | 2400 x 1200 x 200mm |
| Made | welded |
| Material | S355J2+N steel acc. to EN 10025-2 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.1/1000mm |
| Table vertical precision | 0.1/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Supporting structure | Table lift |
| Nominal capacity (table top + details) | 3000 kg |
| Carrying capacity with tabletop | 2040 kg |
| Total table height | 730 – 1200mm |
| Lifting | electro-hydraulic |
| Lifting speed | 30 mm/s |
| Lowering speed | 40 mm/s |
| Maximum number of lifting cycles | 10/h |
| Table top weight | 960kg |
| Jack weight | 570kg |
Περιγραφή
RELY ON COMFORT DURING WELDING, BY USING THE HERMES TABLES!
S355J2+N STEEL
Welding table top is made of S355J2+N steel grade, which is characterized by high strength and resistance to impact and deformation, and also provides protection against corrosion and weld spatter.
25mm TABLE TOP
The table top with a thickness of 25 mm guarantees the durability of the table and resistance to mechanical damage.
MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.
D28 SYSTEM
Drilled and chamfered holes 28mm.
The use of SPARTUS® mobile lift welding tables brings many benefits that translate into more effective and comfortable work.
HEIGHT PRECISE ADJUSTMENT
Setting the table top at the right customised height enhances the level of comfort during the performance of lengthy tasks, which has a significant impact on the work efficiency and welding quality. The working height of the lift (without the table top) is adjustable in the range from 525mm to 1325mm.
LIFT CAPACITY
Lifting system with a high capacity of maximum 3000kg (without the table top) allows you to load the unit with large-size elements and apply accessories to facilitate element assembly.
SAFETY
The mobile lift is equipped with two protections:

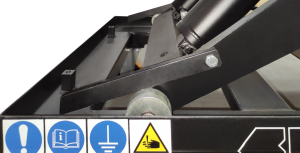

| maintenance interlocking system
|

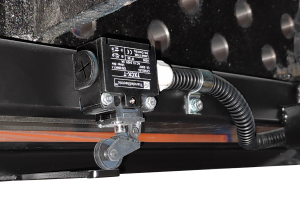

limit switch – crushing protection
|
