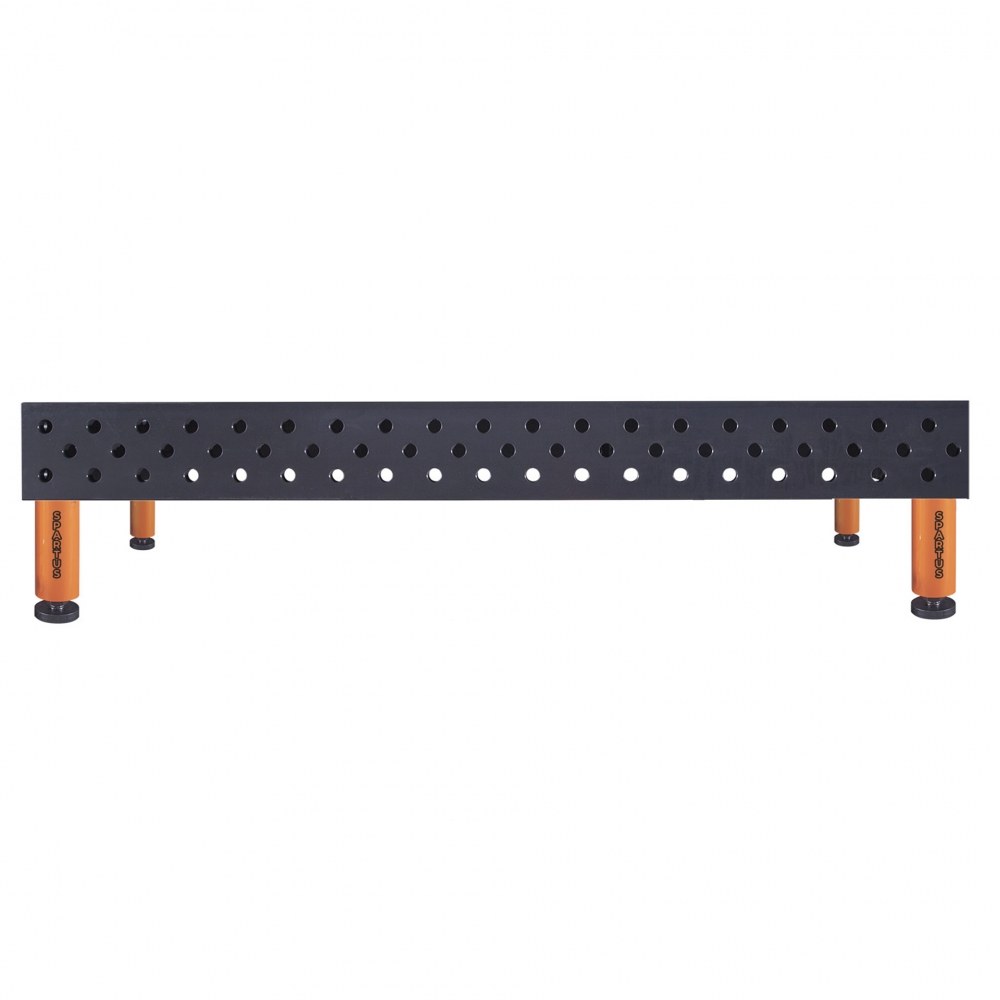

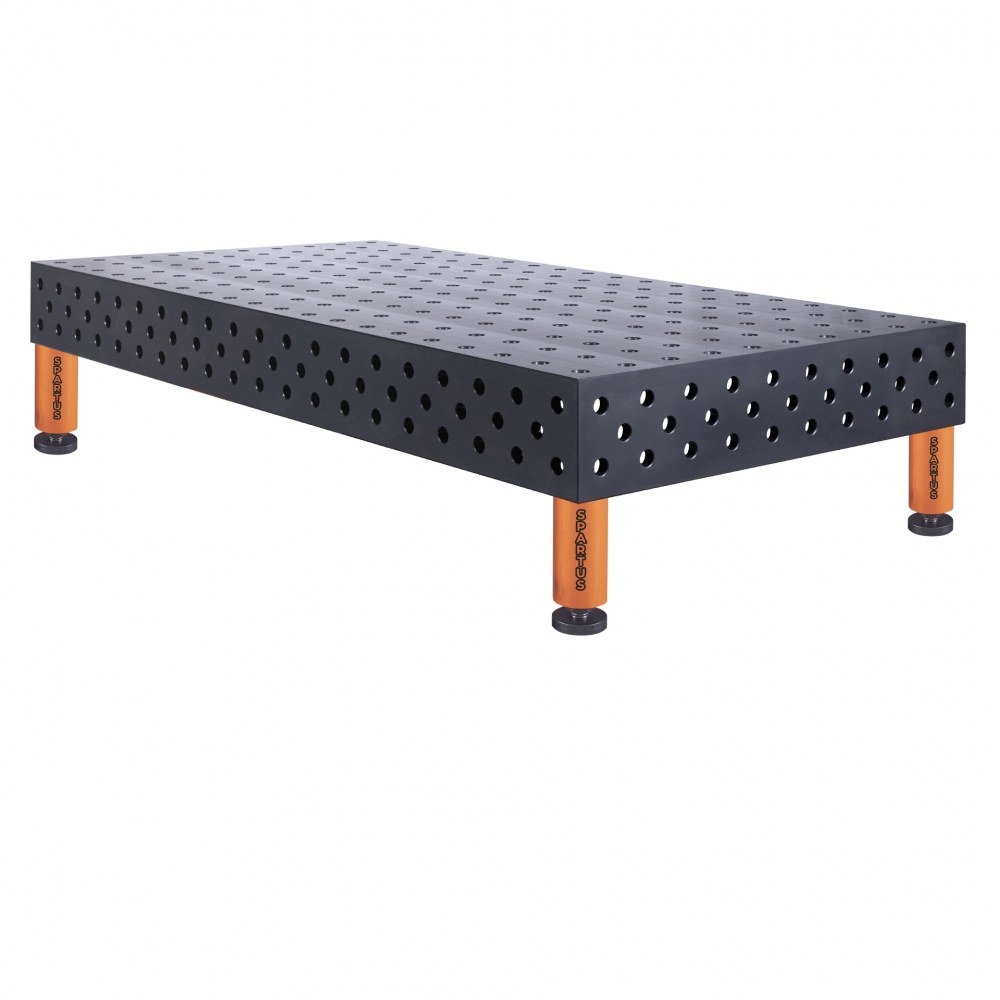

MAXIMUS 3D 2000 x 1000 x 200 [4 table legs with feet L=200]
| Size of the work surface | 2000 x 1000 x 200mm |
|---|---|
| Made | welded with a protective coating (nitrided) |
| Material | S355J2+N steel acc. to EN 10025-2 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.3/1000mm |
| Table vertical precision | 0.3/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Carrying capacity | 2000kg/leg |
| Type of leg | with foot |
| Leg length | 200mm |
| Number of legs | 4pcs. |
| Total table height | 450mm |
| Table top weight | 720kg |
Περιγραφή
GUARANTEE YOURSELF CONSTANT SUPPORT WITH MAXIMUS TABLES!
- 25mm TABLE TOP
The table top with a thickness of 25 mm guarantees the durability of the table and resistance to mechanical damage.
- MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.
- 3D SIDE
It allows to expand the working surface and joining the table tops.
- D28 SYSTEM
Drilled and chamfered holes 28mm.
