ProCUT 100CNC package – MULTIPACK
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Cutting current | 20 – 100A |
| Max. cutting thickness | 16mm |
| Duty cycle | 40% |
| Output working voltage | 88 – 120V |
| Recommended work pressure | 3 – 6bar |
| Gas post flow | 1 |
| Power factor (cosφ) | 0.85 |
| Efficiency η | 80 |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 20 |
| Dimensions | 555 × 270 × 441mm |
Περιγραφή

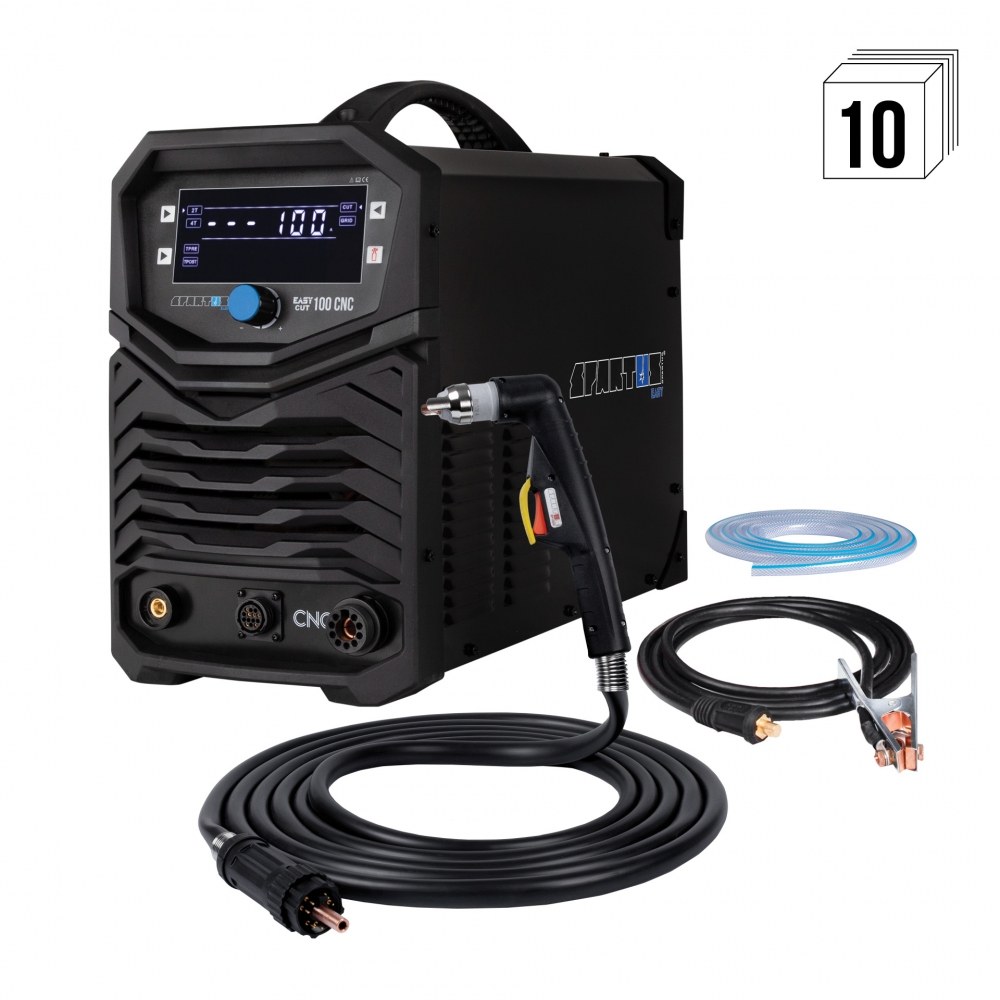

ProCUT 100CNC package SP100H 6m: machine, plasma torch SPARTUS® 100H 6m, PLASMA toolbox (consumable kit, air filter with the pressure control, work clamp 3m, air hose, user’s manual
