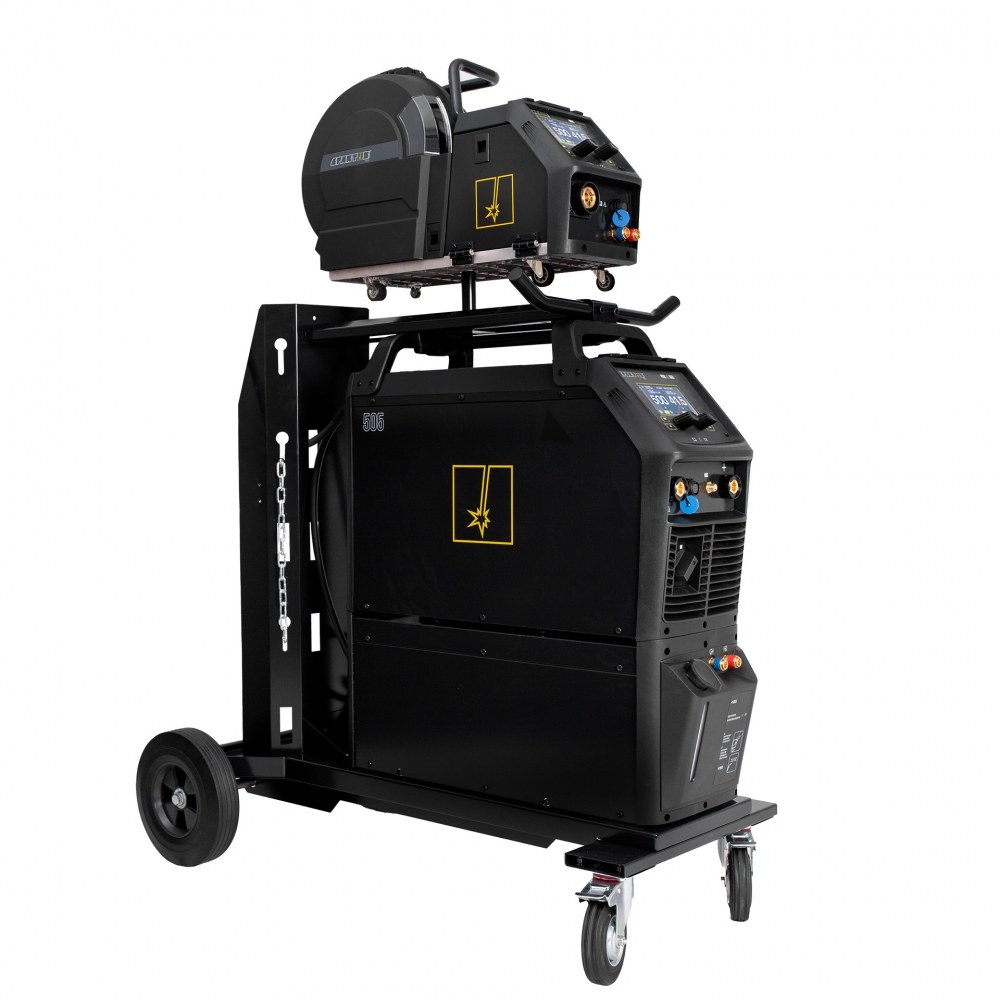

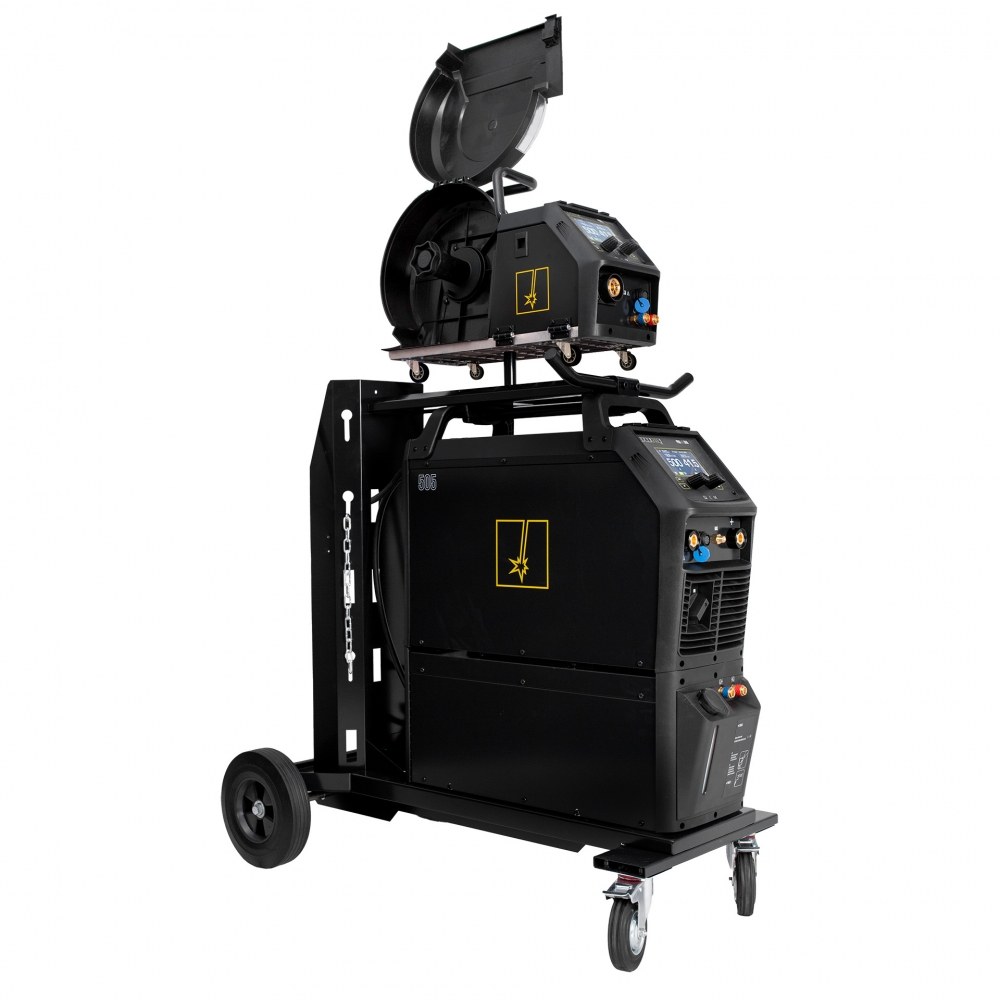

ProMIG 505 [source, cooler, wire feeder, connection cable set, driving set] package with MIG gun SPP501 – 4m
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.6 / 0.8 / 1.0 / 1.2 / 1.6mm |
| Tank capacity | 5l |
| MIG welding current | 40 – 500A |
| MIG duty cycle | 60% |
| Wire feeder | separated, 4 – roll gear |
| Wire feeding speed | 2,5 – 24m/min |
| Hot Start | 1 |
| Welding wire spool | ≤ 15kg / ∅200/300mm |
| TIG Lift | 1 |
| Synergy | 1 |
| 2T/4T Control | 1 |
| TIG welding current | 10 – 500A |
| MMA welding current | 10 – 500A |
| Additional MIG functions | Pre-gaz, Post-gaz, spool gun, test drutu |
| Power factor (cosφ) | 0.8 |
| Water cooler | 1 |
| Efficiency η | 90% |
| Insulation class | F |
| Protection class | IP21S |
| Weight | 101.5kg |
| Dimensions | 1100 x 500 x 1460mm |
| Down slope | 0 – 10s |
| Arc Force | 1 |
| Current consumpiton | MIG 36.3A / TIG DC 29.5A / MMA 37.5A |
Περιγραφή
SYNERGIC MIG DESIGNED FOR INDUSTRY
SPARTUS® ProMIG 505 is high-end, modern inverter welding machine constructed on the basis of advanced PWM technology and professional IGBT transistors. It enables MIG / TIG DC and MMA welding with a current up to 500A. It is powered from three phase 400V source power. The device offers a wide range of possibilities for the above-mentioned methods of joining metals.
MIG welding
ProMIG 505 is equipped with a synergistic system for MIG / MAG welding with the possibility of selecting the following programs: for mill steel, stainless steel, aluminum welding; self-shielding wire welding. It is possible to manually correct the parameters. In addition, the device has a number of functionalities supporting the welding process in the MIG method:
– 2T/4T Trigger Control
– Burn Back
– Slow Feed
– Pre Gas i Post Gas.
Separate high-class four-roller feeder ensures stable wire feeding. An important advantage is also the possibility of welding with the Spool Gun.
TIG welding
Thanks to the solutions used, the ProMIG 505 also enables advanced welding with the TIG Lift method.
ProMIG 505 has functions supporting the welding process in TIG method:
– 2T/4T Trigger Control,
– Down Slope.
MMA welding
The process of joining metals in this method is additionally supported by functions such as:
– Arc Force
– Hot Start.
Modern design, LCD function panel and the possibility of wireless control in combination with high-class components makes the SPARTUS® ProMIG 505 stand out on the market.
The professional device of the SPARTUS® Pro line s perfect suited to the production sector and industry.
