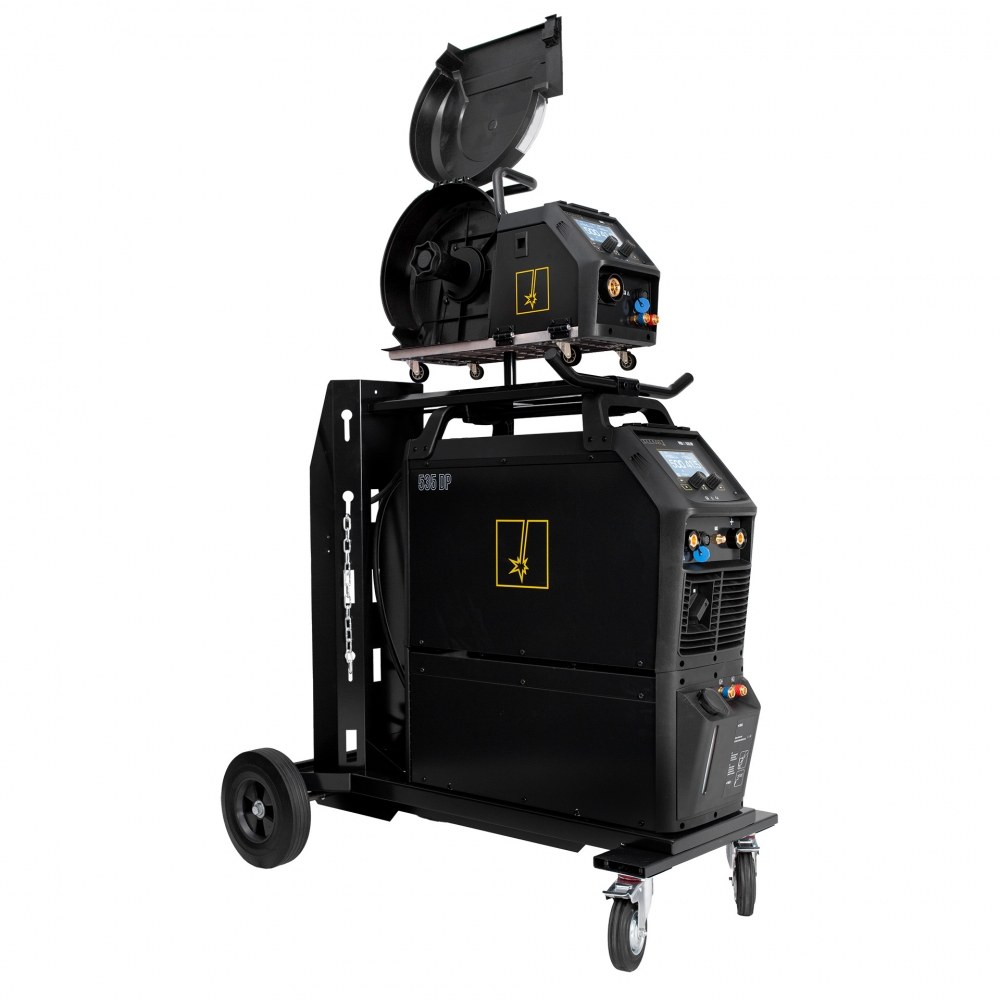

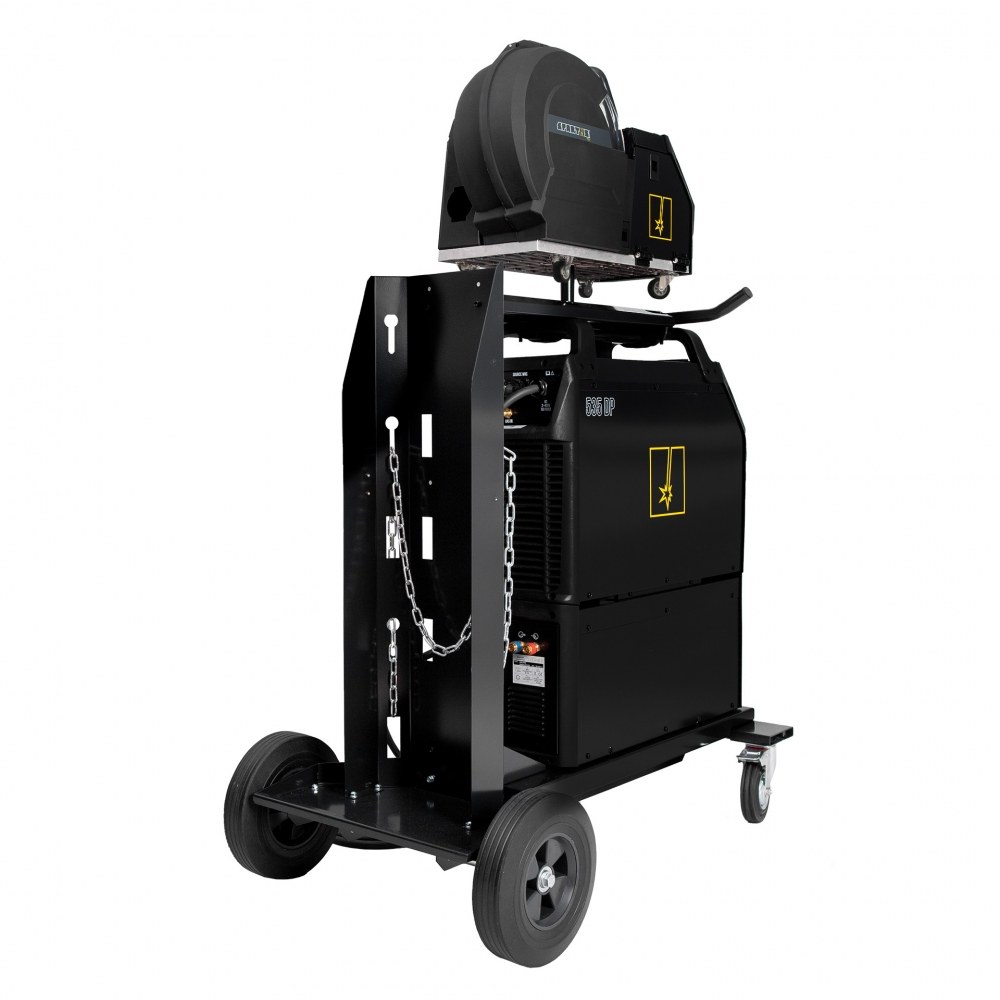

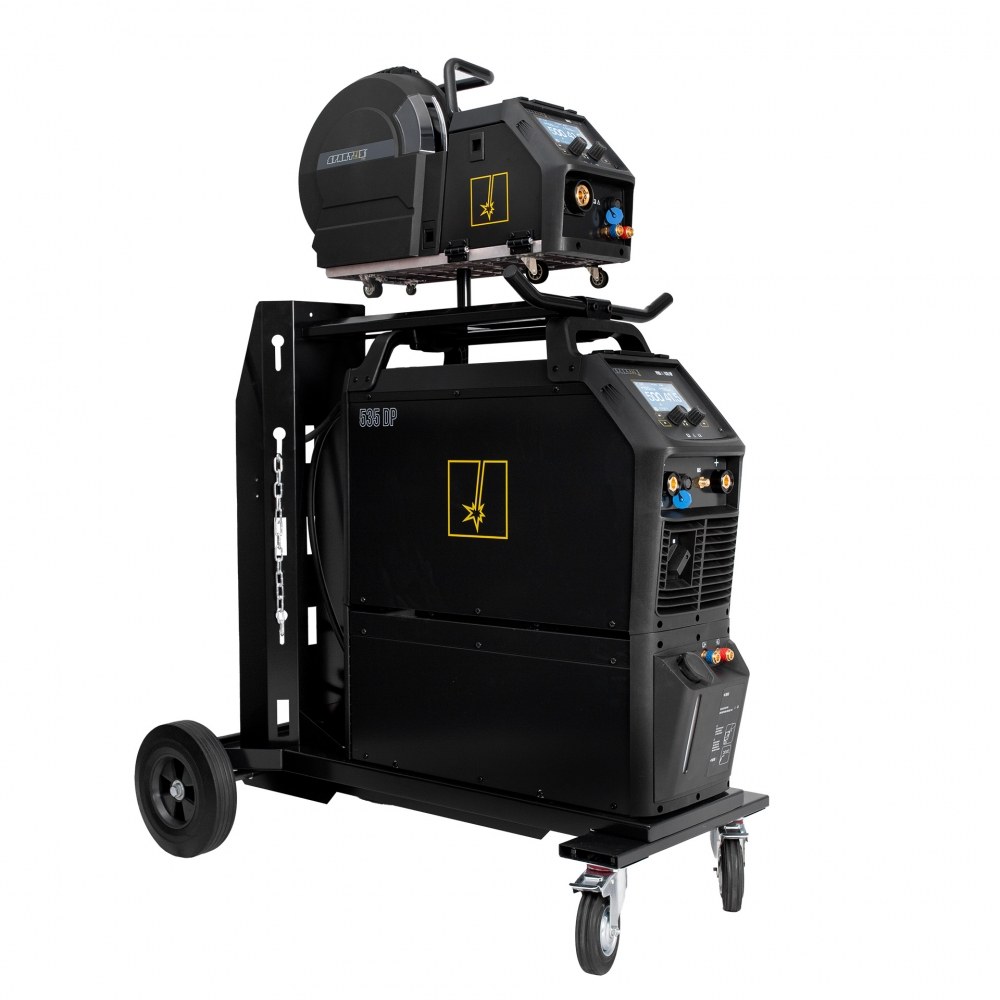

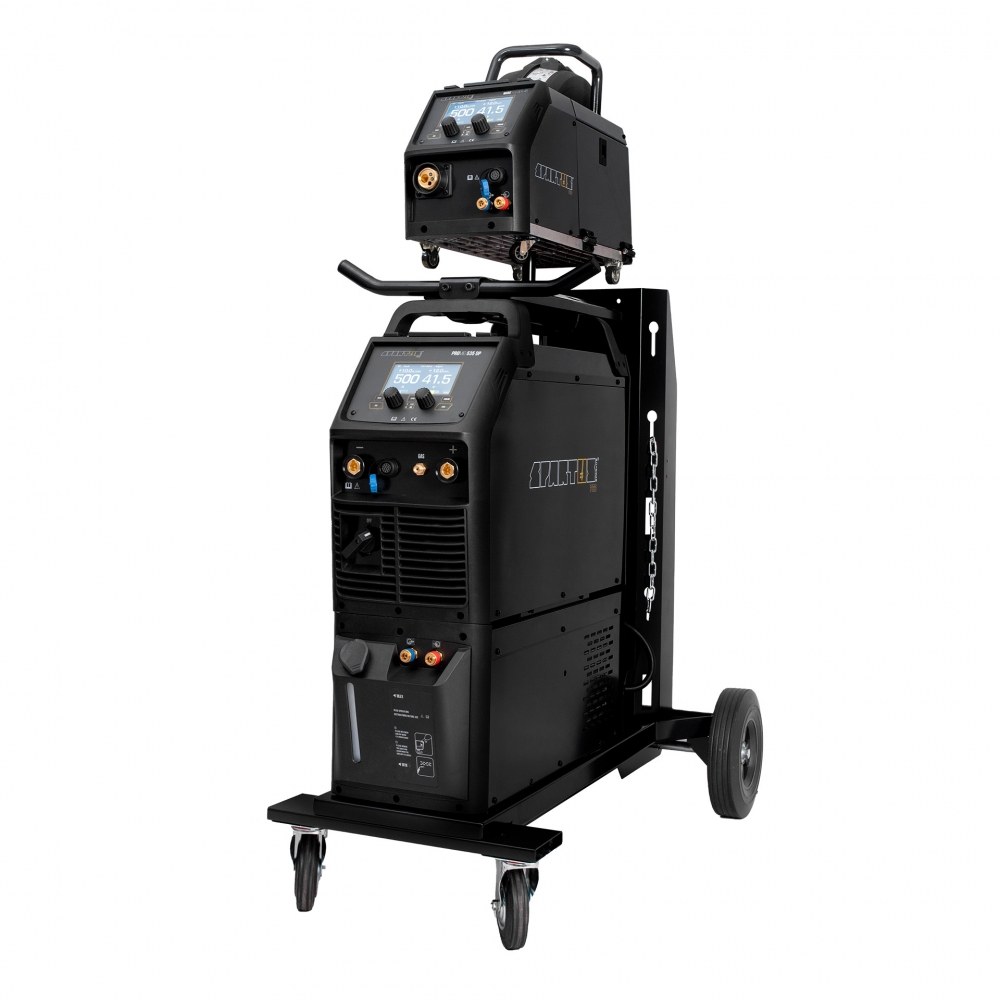

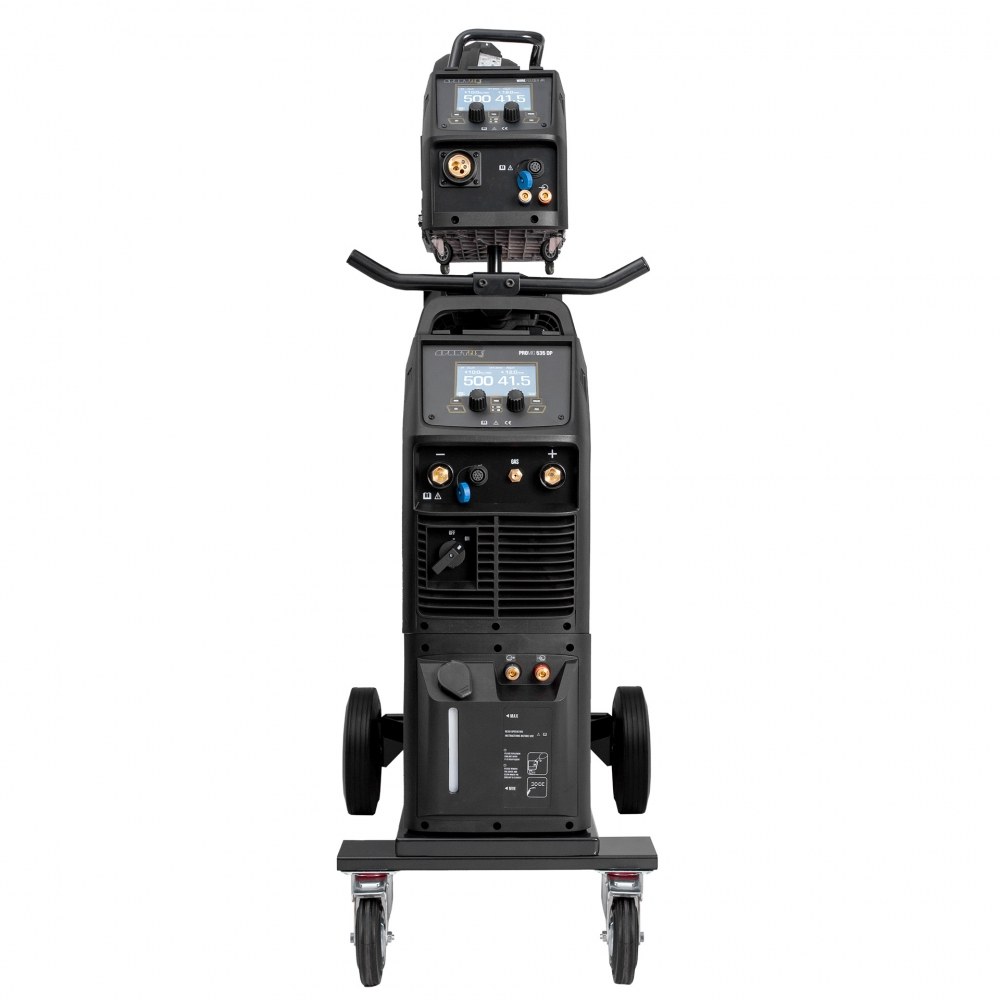

ProMIG 535 DUAL PULSE [source, cooler, wire feeder, connection cable set, driving set] package with MIG gun SPP501 – 4m
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.8 / 1.0 / 1.2 / 1.6mm |
| Tank capacity | 5l |
| MIG welding current | 10 – 500A |
| MIG duty cycle | 60% |
| Wire feeder | separated, 4 – roll gear |
| Wire feeding speed | 1.5 – 24 m/min |
| Welding wire spool | ≤ 15kg / ∅200/300mm |
| Hot Start | 1 |
| Synergy | 1 |
| TIG Lift | 1 |
| 2T/4T Control | 1 |
| s4T control | 1 |
| TIG welding current | 10 – 500A |
| MMA welding current | 10 – 500A |
| SPOT welding | 1 |
| Additional MIG functions | Burn Back, indukcyjność, Pre-gaz, Post-gaz, pulsacja, programy synergiczne, ręczna korekta parametrów, regulacja indukcyjności, spool gun, Slow Feed, test gazu, test drutu |
| Power factor (cosφ) | 0.75 |
| Water cooler | 1 |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 101.5kg |
| Dimensions | 1150 × 590 × 1430mm |
| Down slope | 0 – 10s |
| Arc Force | 1 |
| Current consumpiton | MIG 41.4A / TIG DC 34.4 / MMA 41.8A |
| Παλμός | Ναι |
Περιγραφή
SYNERGIC MIG WITH DOUBLE PULSE.
SPARTUS® ProMIG 535 DP is high-end, modern inverter welding machine constructed on the basis of advanced PWM technology and professional IGBT transistors. It enables MIG / TIG DC and MMA welding with a current up to 500A. It is powered from three phase 400V source power. The device offers a wide range of possibilities for the above-mentioned methods of joining metals.
MIG welding
ProMIG 535 DP is equipped with a synergistic system for MIG / MAG welding with the possibility of selecting the following programs: for mill steel, stainless steel, aluminum welding and braze welding. It is possible to manually correct the parameters. In addition, the device has a number of functionalities supporting the welding process in the MIG method:
– 1P (Pulse) – MIG/MAG welding with pulsation, which significantly facilitates obtaining a spray arc,
– 2P (Dual Pulse) – MIG/MAG welding with dual pulse, in TIG quality,
– JOB mode – save and call 10 different job records,
– 2T/4T / s4T / SPOT Trigger Control,
– Burn Back,
– Slow Feed,
– Pre Gas and Post Gas.
Separate high-class four-roller feeder ensures stable wire feeding. An additional advantage is also the possibility of welding with the Spool Gun.
TIG welding
Thanks to the solutions used, the ProMIG 535 DP also enables advanced welding with the TIG Lift method.
ProMIG 535 DP has functions supporting the welding process in TIG method:
– 2T/4T Trigger Control,
– Down Slope.
MMA welding
The process of joining metals in this method is additionally supported by functions such as:
– Arc Force
– Hot Start.
Modern design, LCD function panel and the possibility of wireless control in combination with high-class components makes the SPARTUS® ProMIG 535 DP stand out on the market. The professional device of the SPARTUS® Pro line is perfect suited to the production sector and industry.
