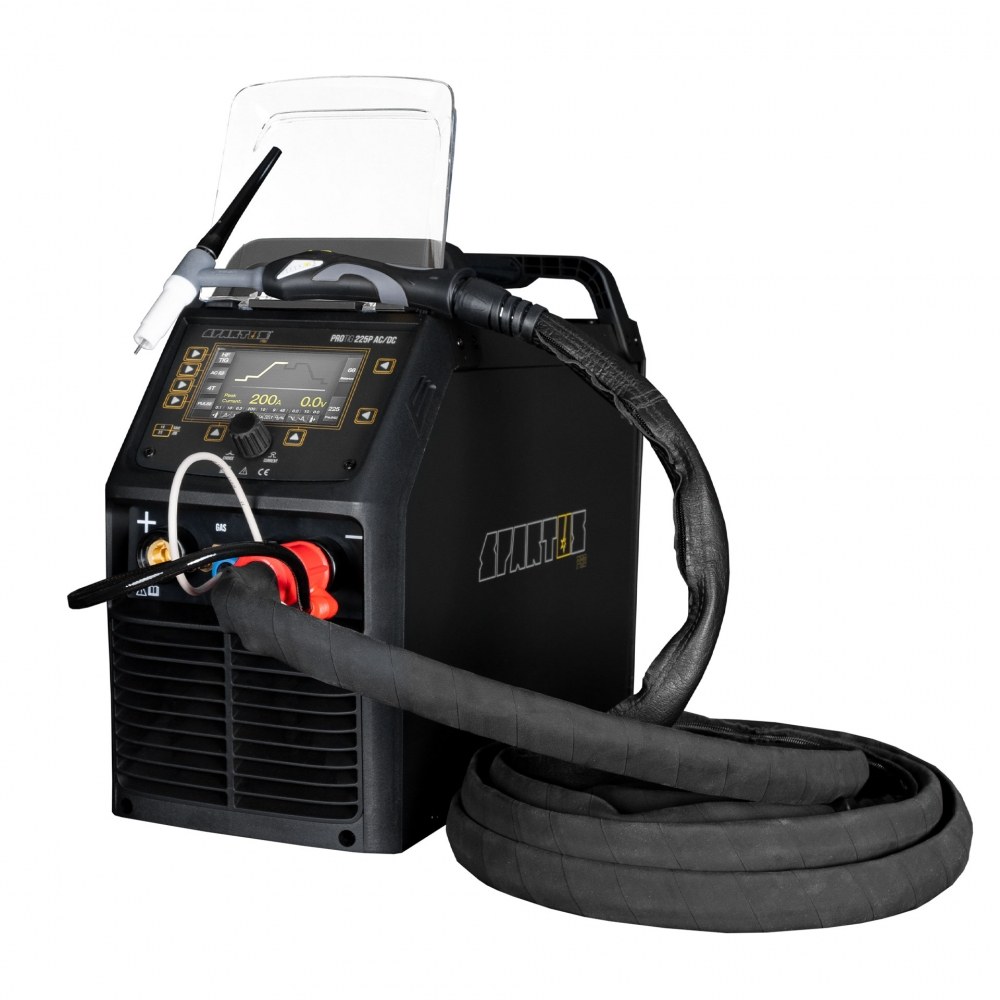

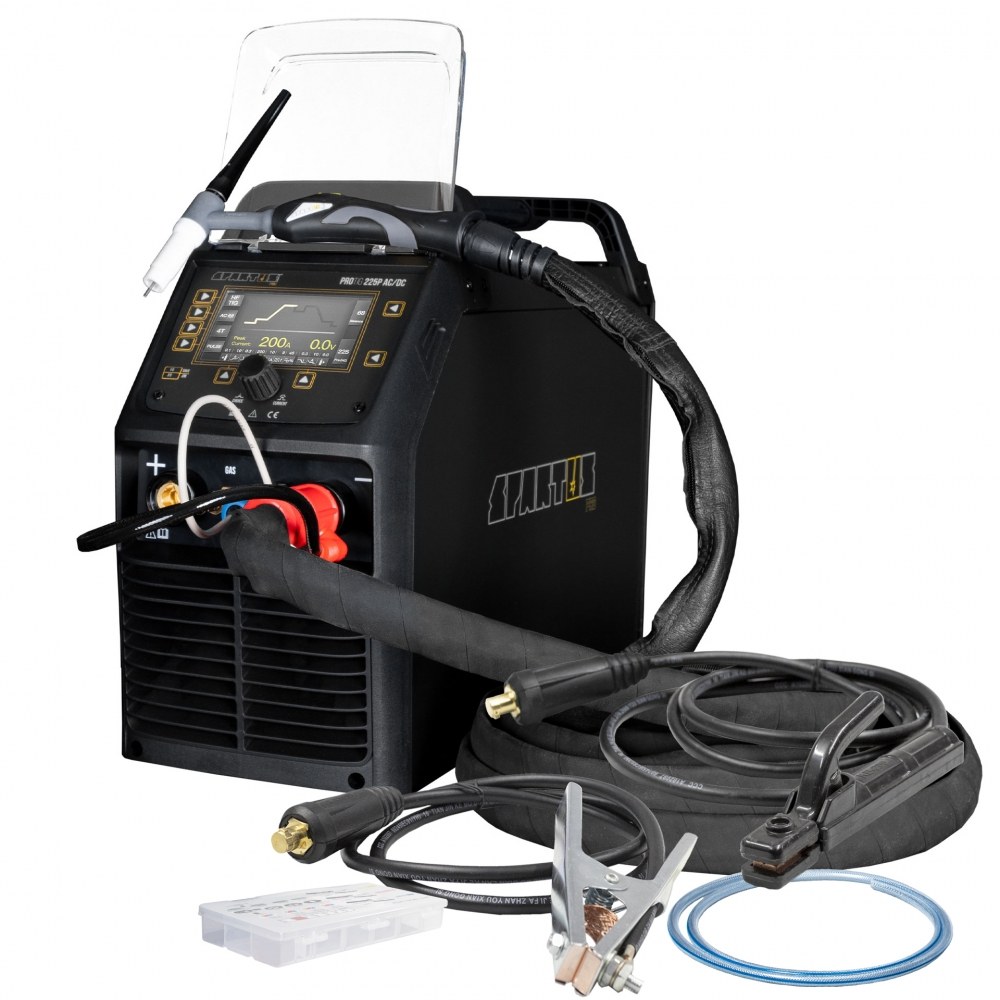

ProTIG 225P AC/DC package with TIG torch mini SPP 17 4B X – 4m
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| TIG duty cycle | 60% |
| Up slope | 0 – 10s |
| Hot Start | 1 |
| Control plug | 9SPA – SPARTUS® |
| 2T/4T Control | 1 |
| TIG welding current | 10 -200A |
| MMA welding current | 10 – 200A |
| Power factor (cosφ) | 0.99 |
| Efficiency η | 80% |
| AC wave forms | prostokątny, sinusoidalny, trójkątny |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 16kg |
| Dimensions | 605 x 215 x 410mm |
| Arc ignition | HF |
| Gas pre flow | 0.1 – 2s |
| Gas post flow | 0 – 10s |
| Down slope | 0 – 10s |
| TIG Pulse | 1 |
| Pulse Amps | 10 – 200A |
| No-load voltage | 66V |
| Pulse Width | 5 – 95 |
| Pulse frequency | 0.5 – 999Hz |
| AC frequency | 50 – 250Hz |
| AC balance | 10 – 99 |
| Control options | sterowanie nożne bezprzewodowe, sterowanie w rękojeści potencjometr |
| Arc Force | 1 |
| Current consumpiton | AC: TIG 20.4 / MMA 29.1 DC: TIG 21.5 / MMA 30.8 |
| TIG | AC/DC |
Περιγραφή

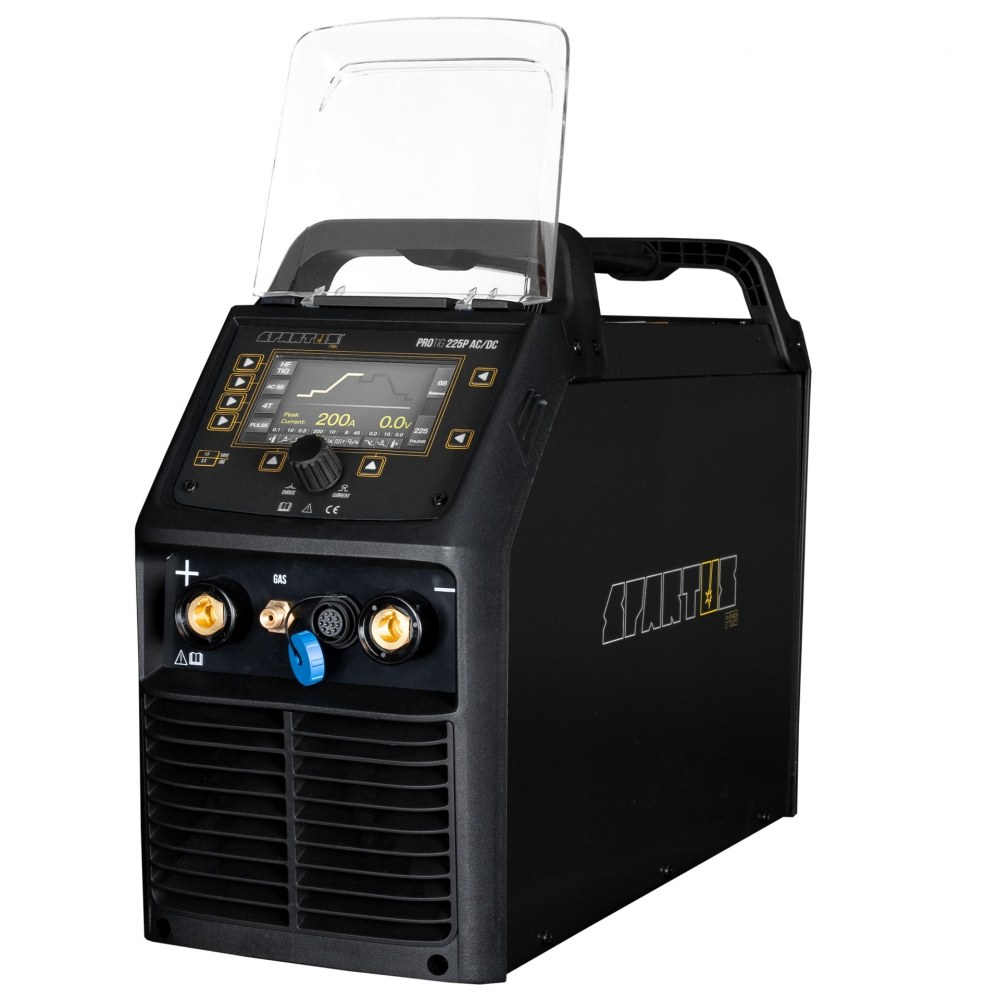

MODERN, PORTABLE TIG AC/DC PULSE
SPARTUS® ProTIG 225P AC/DC is a inverter welder in a modern edition. It allows TIG AC / DC and MMA AC / DC welding with current up to 200A. The machine is powered from a 230V one-phase network.
Thanks to the solutions used, the ProTIG 225P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The machine is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum.
ProTIG 225P AC/DC has functions supporting the welding process in TIG method:
-
- output AC waveforms: square, sinusoidal, triangular,
-
- 2T/4T Trigger Control,
-
- AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
-
- up slope and down slope adjustment,
-
- SPOT welding.
ProTIG 225P AC/DC enables MMA AC and MMA DC welding. The process of joining metals in this method is additionally supported by functions such as:
-
- Arc Force
-
- Hot Start.
Additionally the machine has 10 memory channels. The user can easily save and recall the most used settings.
Modern design, light weight and LCD function in combination with high-class components makes the ProTIG 225P AC/DC stand out on the market.
The professional machine of the SPARTUS® Pro line is perfect suited to the production sector and industry.
