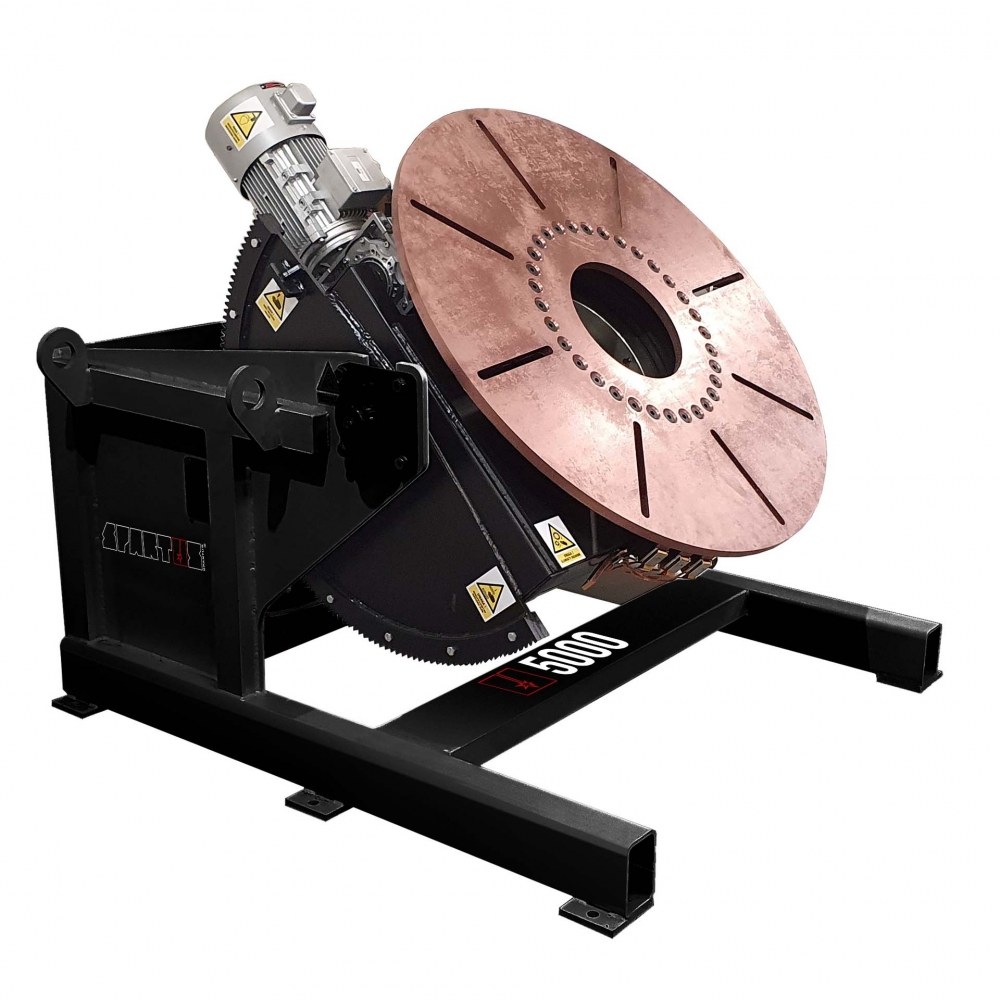

Welding positioner SPARTUS® 5000
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Load capacity | 5000kg |
| Plate diameter | 1200 mm |
| Rotation speed | 0,09 – 0,9 r/min |
| Manual table tilt | 90° / 130° |
| Weight | 1200kg |
Περιγραφή
The SPARTUS® 5000 welding positioner is ideally suited to work with very heavy components, where manual operation could be dangerous and require a lot of time. The device is controlled by buttons on the manual control panel, and the rotation is started by a foot switch. It is equipped with a brush system, it is possible to connect the mass of the welding machine directly to the body of the positioner.
Advantages:
-
smooth regulation of rotation speed and selection of the direction of rotation
-
automatic, stepless adjustment of the disc tilt angle
-
reading the current speed
-
emergency stop – safety button on the control panel
-
current load in the 60% cycle 300A.
