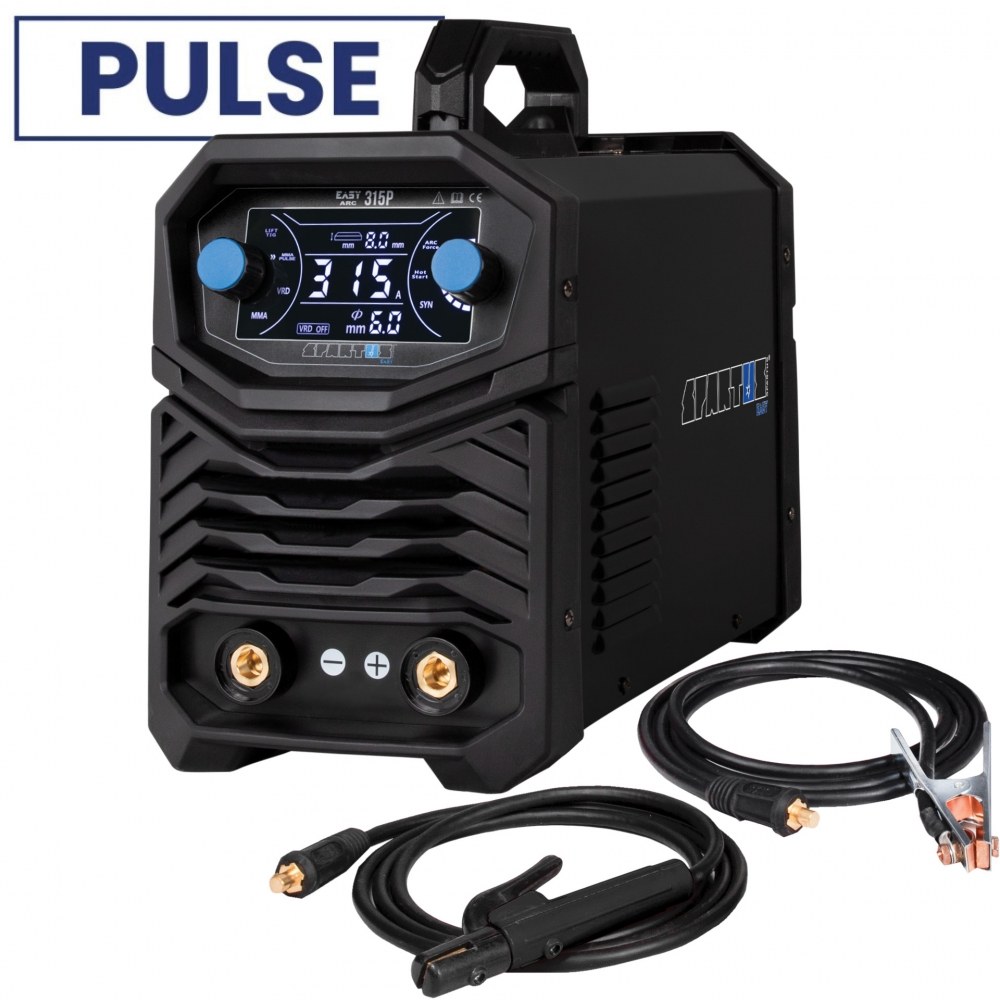

EasyARC 315P package
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| MMA duty cycle [%] | 30% |
| Pulsation | 1 |
| Hot Start | 1 |
| TIG Lift | 1 |
| MMA welding current | 10 – 315A |
| Power factor (cosφ) | 0.81 |
| Efficiency η | 88 |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 12kg |
| Dimensions | 500 × 220 × 310mm |
| VRD | 1 |
| No-load voltage | 68V |
| Arc Force | 1 |
| Current consumpiton | 22A |
Περιγραφή

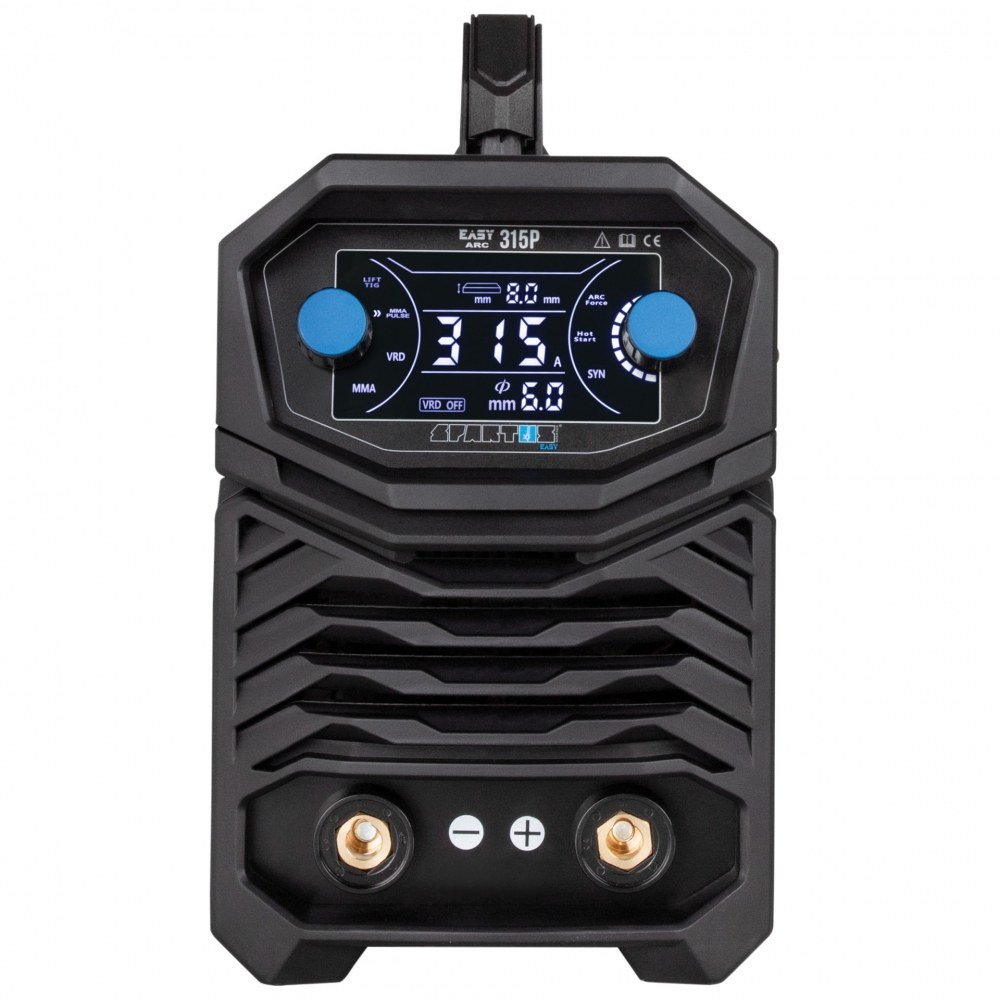

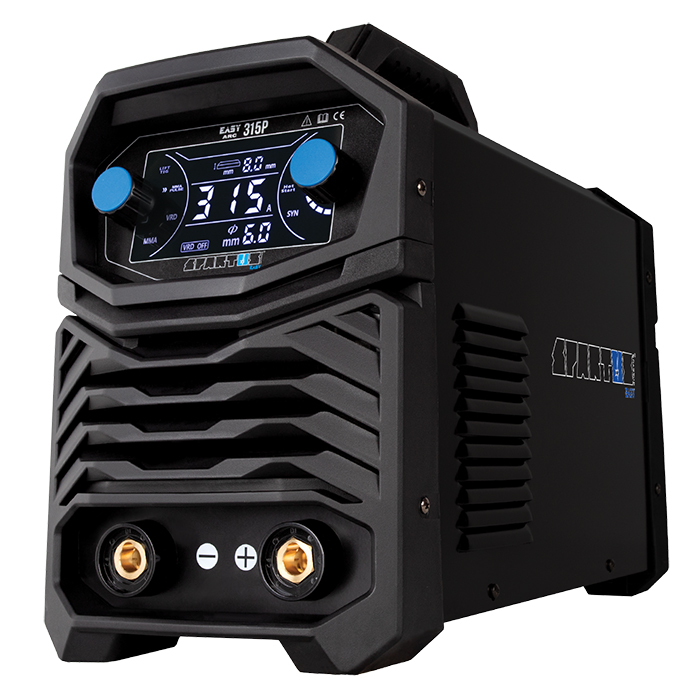

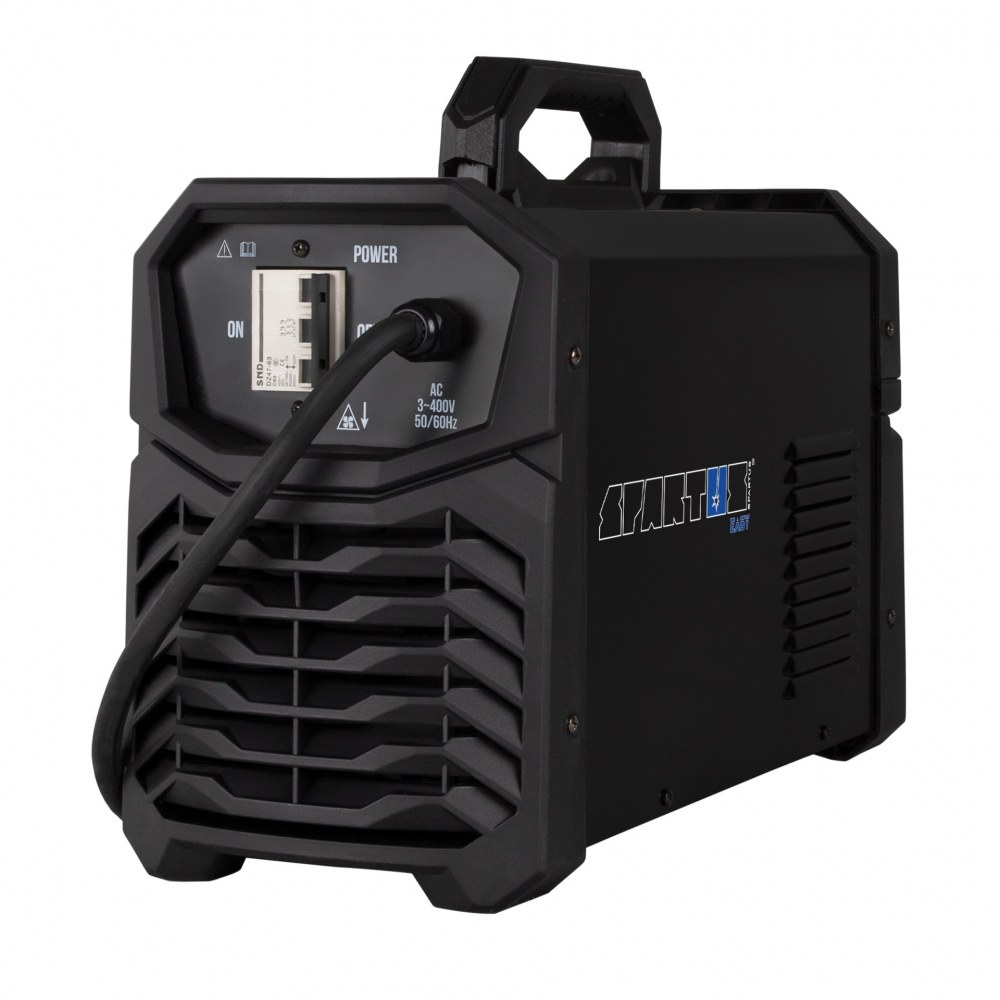

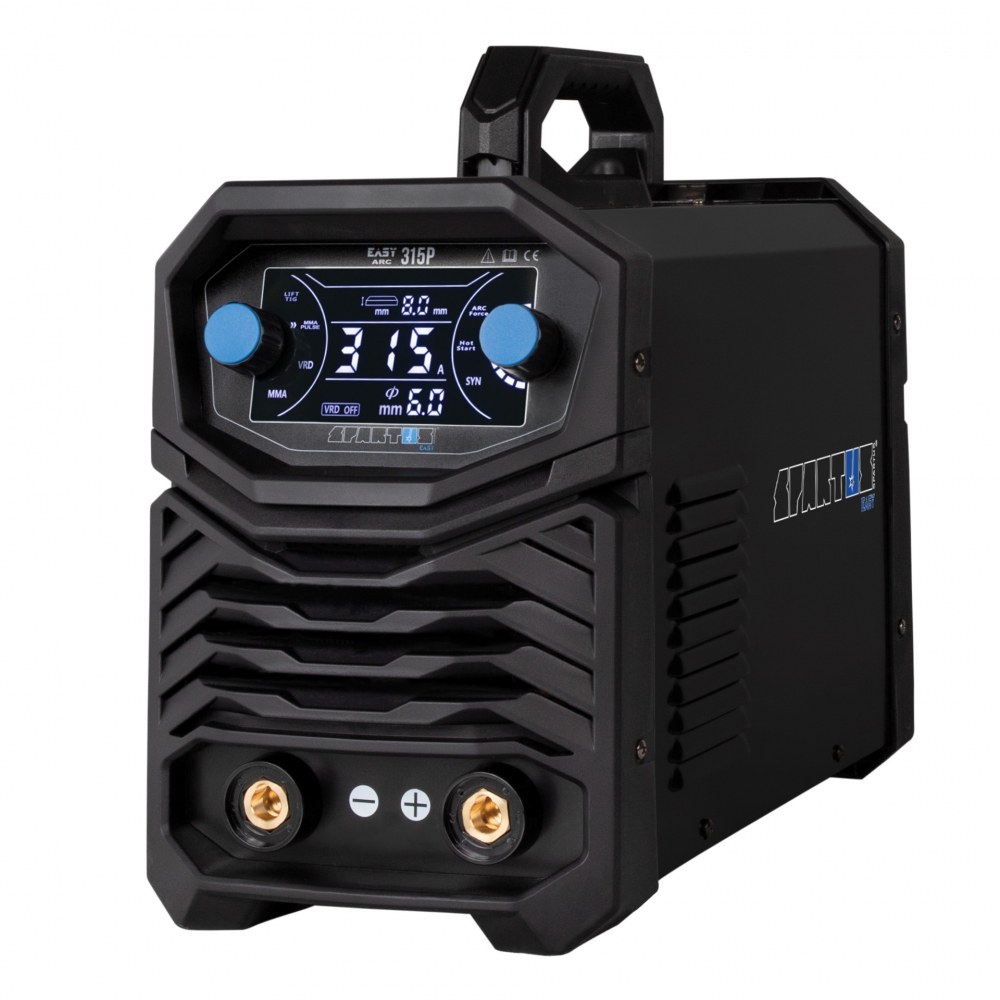

EasyARC 315P – EFFICIENT AND INTUITIVE MMA WELDER WITH PULSE
SPARTUS® EasyARC 315P is inverter welder that utilizes advanced IGBT technology. It is ideal for a wide range of welding applications, both MMA and TIG Lift, and is powered by a three-phase 400V supply.
HIGH EFFICIENCY
With current adjustment up to 300A, EasyARC 315P ensures high work efficiency. The device allows welding with electrodes up to 6mm in diameter and materials up to 8mm thick.
MMA PULSE WELDING
SPARTUS® EasyARC 315P in MMA Pulse mode provides more precise control over the welding process. Welders can set parameters such as pulse frequency and base current, which allows for precise adaptation of the device to specific conditions and materials. Pulse welding helps reduce thermal distortion, which is crucial when welding delicate materials or where minimizing deformation is key. The pulse function also reduces the risk of excessive metal spatter, thereby achieving cleaner and higher quality welds.
INNOVATIVE "SYN" FUNCTION
SPARTUS® EasyARC 315P features an innovative "SYN" function, which automatically adjusts the amperage and suggests the appropriate electrode diameter after the material thickness is entered. This function greatly simplifies and speeds up the preparation process.
ADDITIONAL SUPPORT FUNCTIONS
EasyARC 315P is equipped with supportive features such as Arc Force, Hot Start and VRD, which enhance user comfort and work efficiency by ensuring arc stability and easy arc initiation.
The modern solutions included in SPARTUS® EasyARC 315P make it an essential tool for those looking for reliability and high-quality welding in various working conditions. It is the perfect solution for workshops, production, and repair works where precision and power are required.
