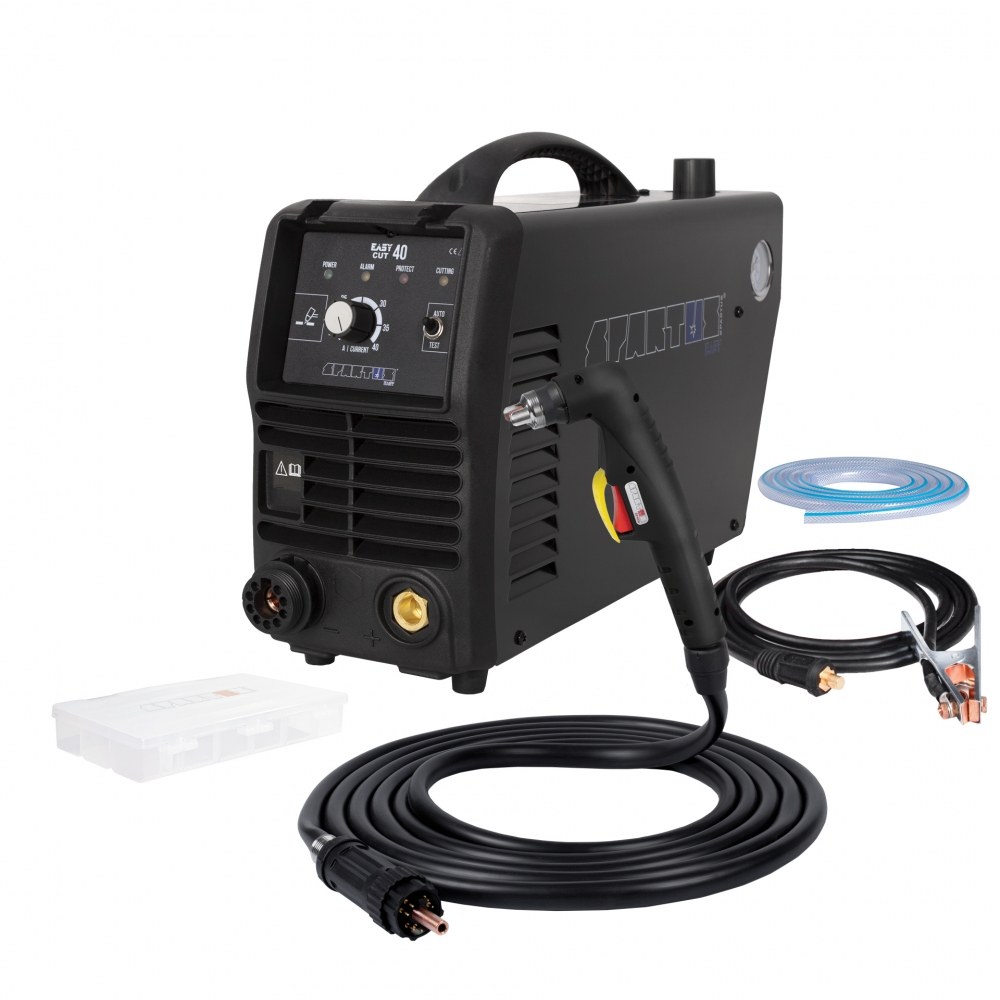

EasyCUT 40 package
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| Cutting current | 20 – 40A |
| Max. cutting thickness | 25mm |
| Duty cycle | 60% |
| Output working voltage | 88 – 96V |
| Recommended work pressure | 5bar |
| Air consumption | 150l/min |
| Gas post flow | 1 |
| Pilot arc ignition | without HF |
| Power factor (cosφ) | 0.7 |
| Efficiency η | 85% |
| Insulation class | H |
| Protection class | IP23 |
| Weight | 8,5kg |
| Dimensions | 460 x 146 x 290mm |
| Current consumpiton | 32A |
Περιγραφή
LITTLE DIMENSIONS SOURCE, GREAT POWER, EXCELLENT QUALITY OF CUTTING
This is small size inverter plasma cutter. Designed for cutting metals and other electrically conductive materials. It is powered with single-phase 230V source power.
Through the use of modern technology, we were able to get a light and compact plasma cutter with maximum power of 40 amps, which a maximum cutting thickness equals 25 mm.
SPARTUS® EasyCUT 40 has a simple-to-use function panel with adjustment knob which gives ability to adjust the cutting power between 20 – 40 amps.
The cutter is equipped with a pressure reductor with air filter which is mounted at the rear of the casing, in a place specially designed for that purpose (protection against damage eg. during the move).
SPARTUS® EasyCUT 40 machine has a lot of modern solutions to support the process of plasma cutting and functioning of the machine. Built-in system of contactless pilot arc ignition without HF – provides excellent quality of cutting edge and longer life of consumables.
Examples of use: workshop, portable repair, production.
