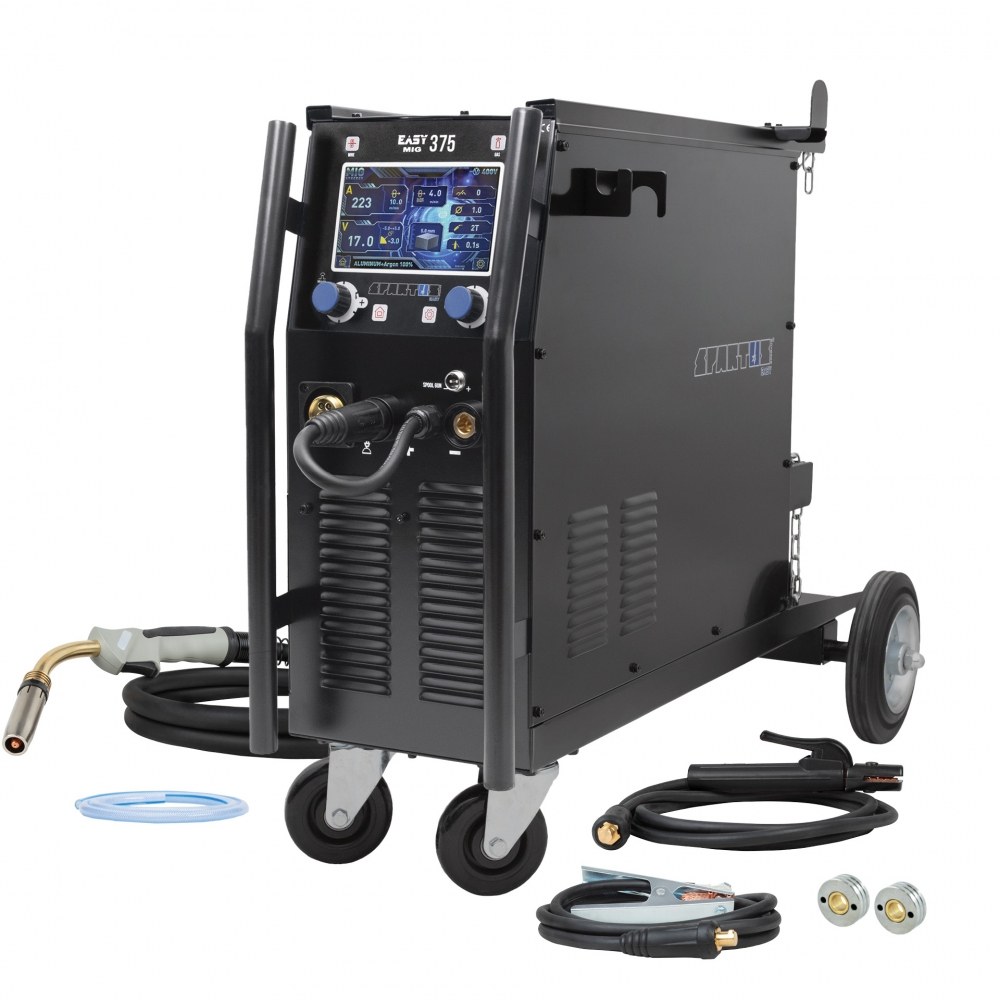

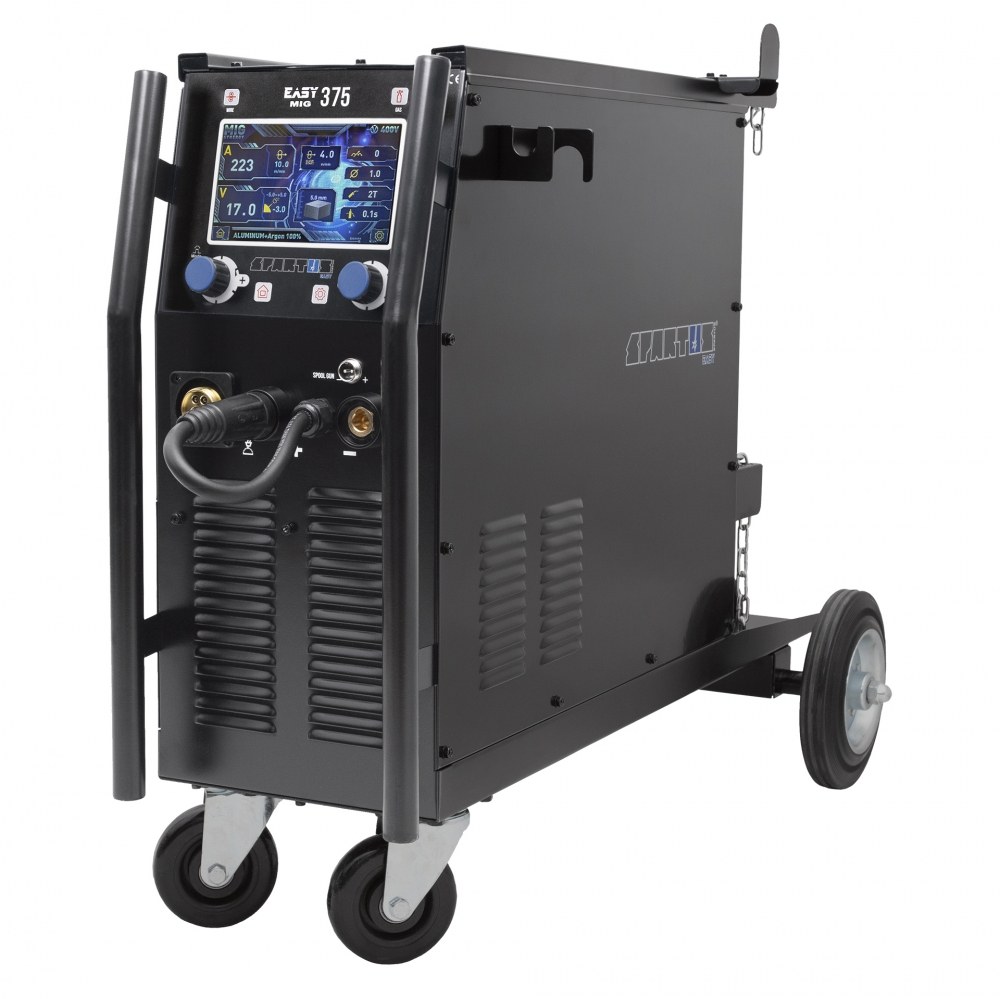

EasyMIG 375 package
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Wire diameter | 0.8 / 1.0 / 1.2mm |
| MIG welding current | 50 – 350A |
| MIG duty cycle | 60% |
| Wire feeder | built-in, 4-roll gear |
| Output working voltage | 9.9 – 35V |
| Wire feeding speed | 0.8 – 16m/min |
| Hot Start | 1 |
| Welding wire spool | ≤ 15kg / ∅200/300mm |
| Synergy | 1 |
| TIG Lift | 1 |
| 2T/4T Control | 1 |
| TIG welding current | 10 – 350A |
| MMA welding current | 10 – 300A |
| Power factor (cosφ) | 0.93 |
| Additional MIG functions | regulacja indukcyjności, test drutu, zmiana biegunowości |
| Efficiency η | 80% |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 39kg |
| Dimensions | 920 x 470 x740mm |
| VRD | 1 |
| Arc Force | 1 |
| Current consumpiton | MIG 21 / MMA 19 / TIG 16A |
Περιγραφή
SYNERGIC AND STRONG IGBT MIG WITH LCD DISPLAY
SPARTUS® EasyMIG 375 these high-end semi-automatic welding machine (compact type), made of inverter technology using IGBTs. It allows gas metal inert and active arc welding MIG/MAG), metal arc welding (MMA) and TIG Lift with arc ignition. Thanks to the ability to change polarity, it allows welding with self-shielding wire without gas.
Max welding current is 350A for MIG/TIG, for MMA – 300A and is powered from three phase 400V source power.
The device is equipped with synergic programs for MIG / MAG welding with steel wires in the 0,8 – 1,2mm diameter range. Additionally, it is possible to manually correct selected parameters.
The use of modern technological solutions has allowed the device to be equipped with a number of functions that support welding processes:
2T / 4T – selection of one of two operating modes (MIG/MAG).
Inductance – regulation of welding inductance – it allows to control the width and depth of fusion and reduce the amount of welding splashes
Slow Feed – so called gentle start-up of the wire feeder, recommended especially during welding with high amperage and high speed of wire feed.
Hot Start – for easier electrode ignition (MMA) Arc Force – for easier welding in forced positions (MMA)
VRD – lower no-load voltage (MMA).
A high-class 4-roll wire feeder, ensures stable wire feeding of steel, aluminum and stainless steel wire. Stable output parameters guarantee the appropriate quality of the weld.
