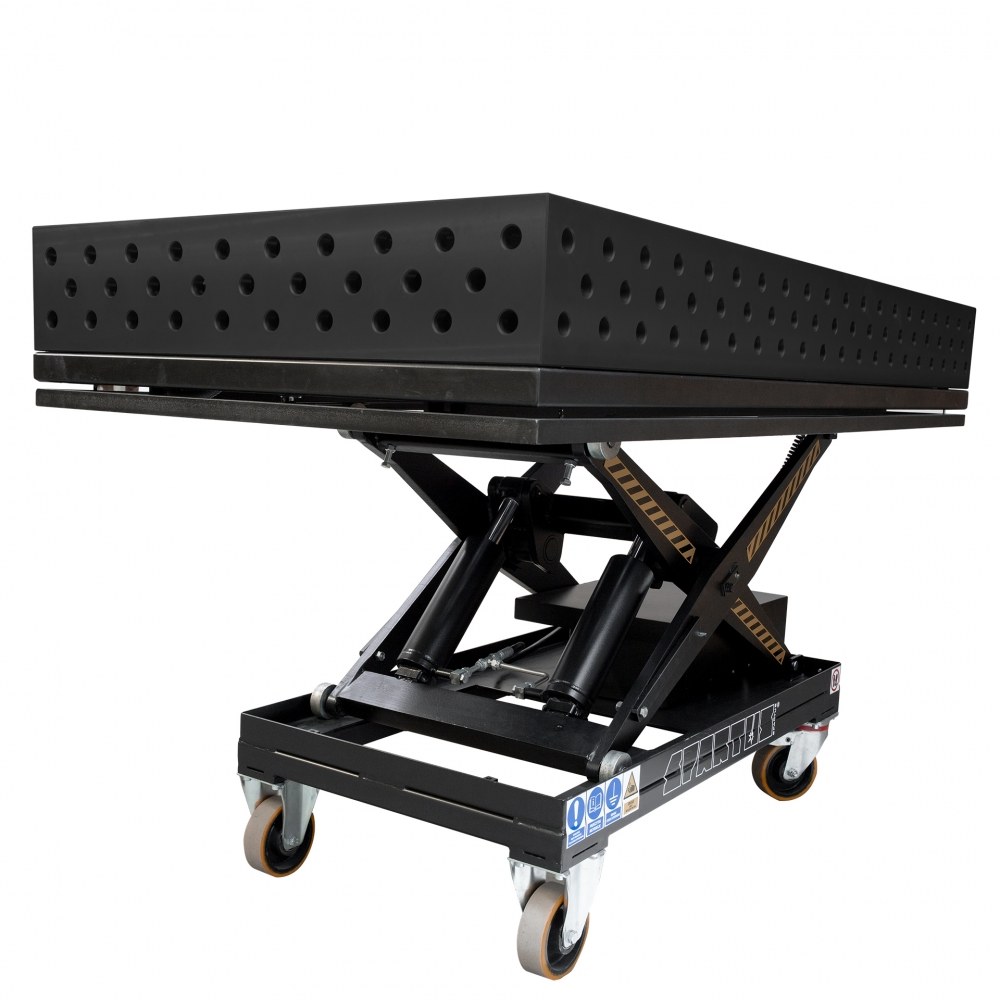

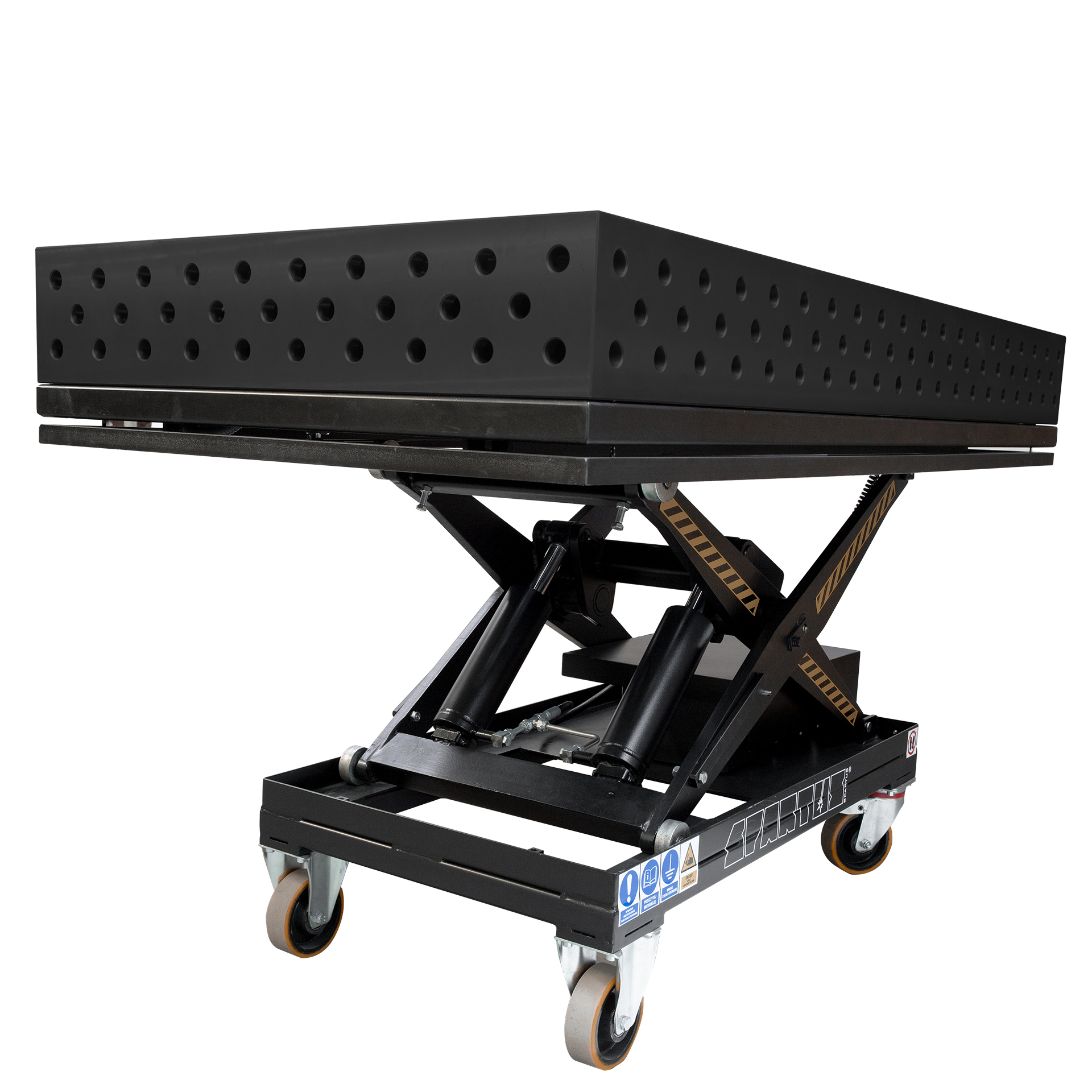

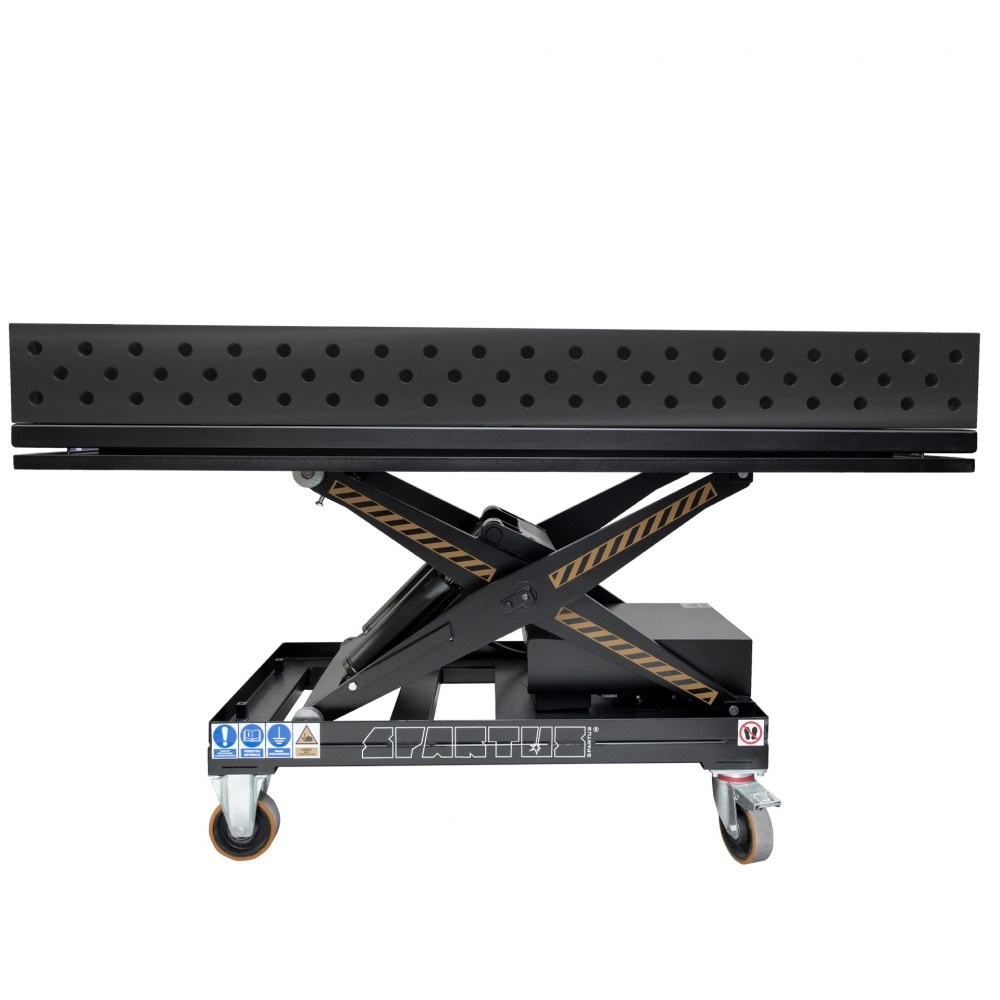

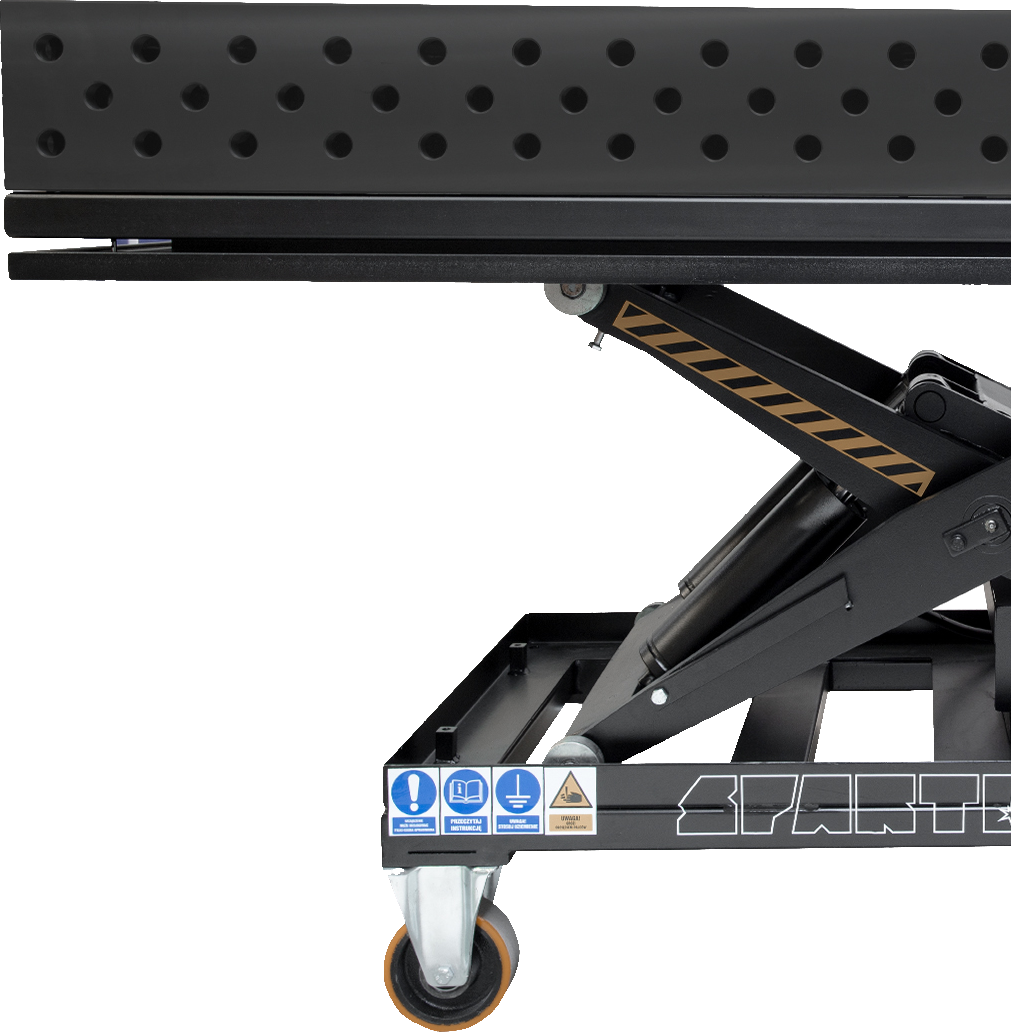

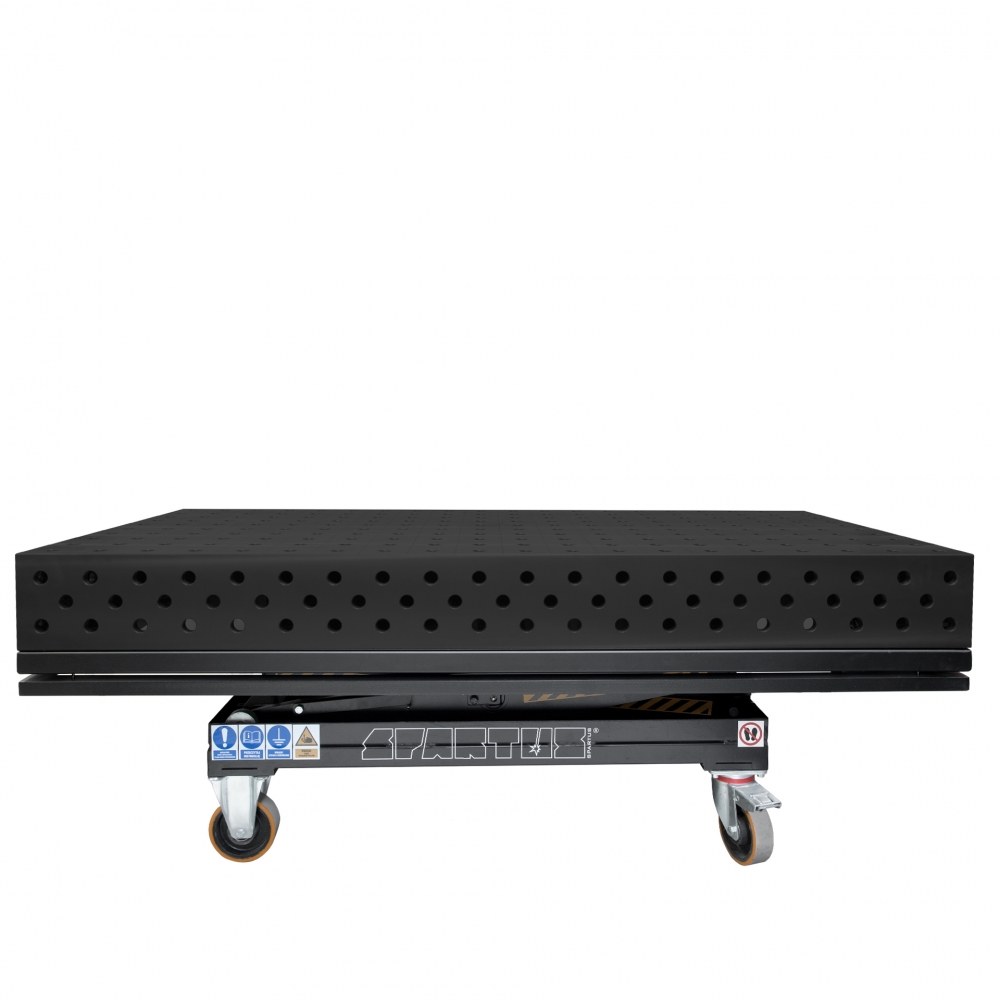

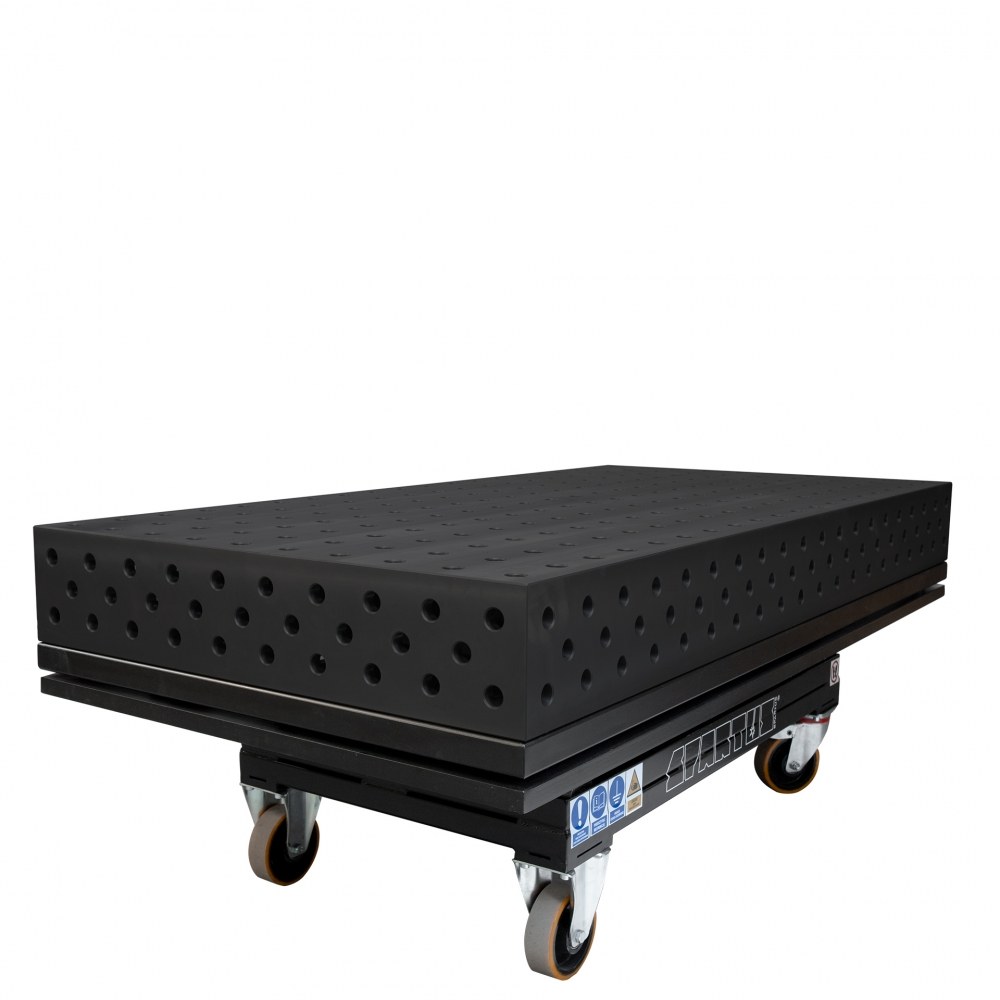

MAXIMUS 3D mobile lift welding table 2000 x 1000 (electrohydraulic version)
| Size of the work surface | 2000 x 1000 x 200mm |
|---|---|
| Input | ~3× 400V ± 10% 50 / 60 Hz |
| Made | welded with a protective coating (nitrided) |
| Material | S355J2+N steel acc. to EN 10025-2 |
| Table top thickness | 25mm |
| Table horizontal precision | 0.3/1000mm |
| Table vertical precision | 0.3/200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) |
| Supporting structure | Table lift |
| Nominal capacity (table top + details) | 2200 kg |
| Carrying capacity with tabletop | 1480 kg |
| Total table height | 730 – 1200mm |
| Lifting | electro-hydraulic |
| Lifting speed | 30mm/s |
| Lowering speed | 40mm/s |
| Maximum number of lifting cycles | 10/h |
| Table top weight | 720kg |
| Jack weight | 450kg |
Περιγραφή
GUARANTEE YOURSELF CONSTANT SUPPORT WITH MAXIMUS TABLES!
- MILLIMETRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.
- D28 SYSTEM
Drilled and chamfered holes 28mm.
The use of SPARTUS® mobile lift welding tables brings many benefits that translate into more effective and comfortable work.
- HEIGHT PRECISE ADJUSTMENT
Setting the table top at the right customised height enhances the level of comfort during the performance of lengthy tasks, which has a significant impact on the work efficiency and welding quality. The working height of the lift (without the table top) is adjustable in the range from 530mm to 1000mm.
- LIFT CAPACITY
Lifting system with a high capacity of maximum 2200kg (without the table top) allows you to load the unit with large-size elements and apply accessories to facilitate element assembly.
- MOBILITY
High loads and tough working conditions on shop floors require the application of appropriate equipment. The lift system uses wheels, including two with a braking system, supporting safe and trouble-free movement of the welding table.
- SAFETY
The mobile lift is equipped with two protections:
- maintenance interlocking system
- limit switch – crushing protection
- maintenance interlocking system
The SPARTUS® mobile lift welding tables is a modern and convenient solution for professionals who value solid solutions that facilitate the work of welders.
