ProCUT 125CNC package
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Cutting current | 20 – 100A |
| Duty cycle | 100% |
| Max. cutting thickness | 55mm |
| Output working voltage | 88 – 125V |
| Recommended work pressure | 5.5bar |
| Air consumption | 250l/min |
| Gas post flow | 1 |
| Pilot arc ignition | without HF |
| Power factor (cosφ) | 0.76 |
| Efficiency η | 85 |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 32kg |
| Dimensions | 770 x 270 x 490mm |
| Current consumpiton | 28A |
Περιγραφή
MODERN PLASMA CUTTER – MAX. CUTTING THICKNESS 55MM

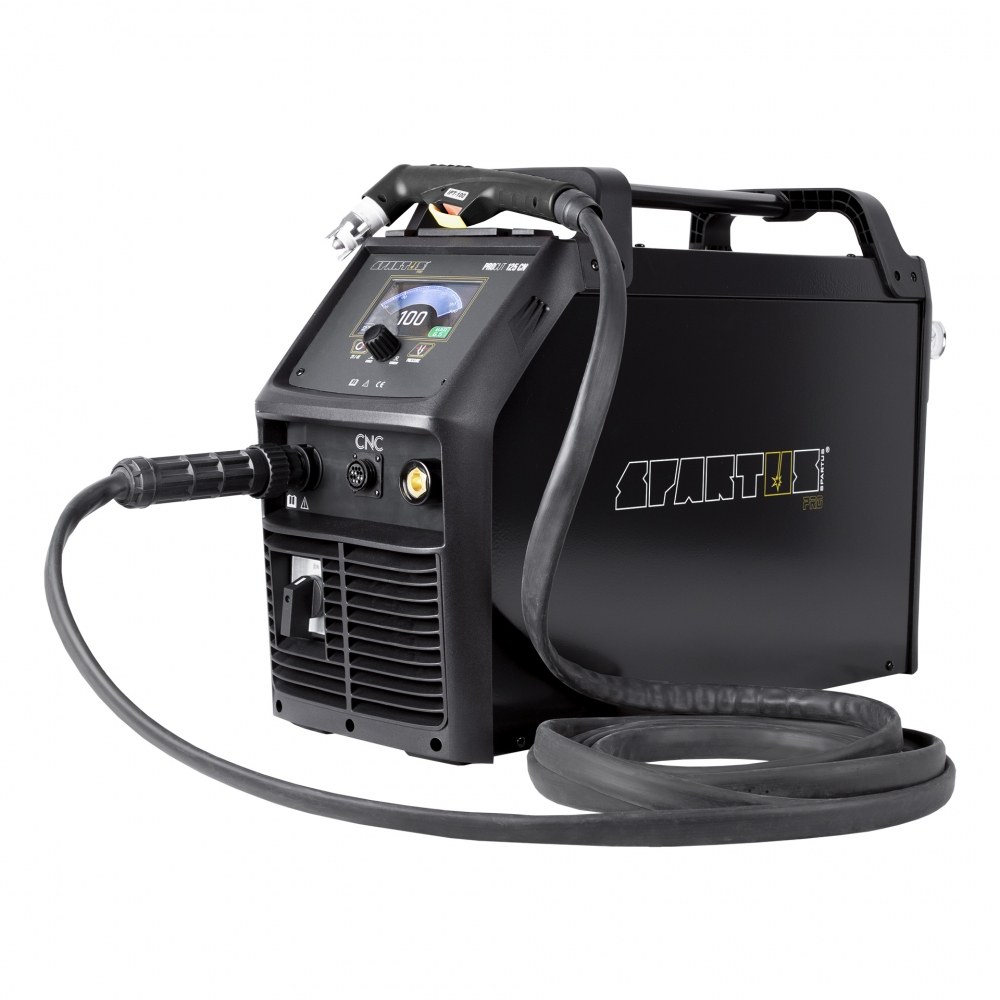

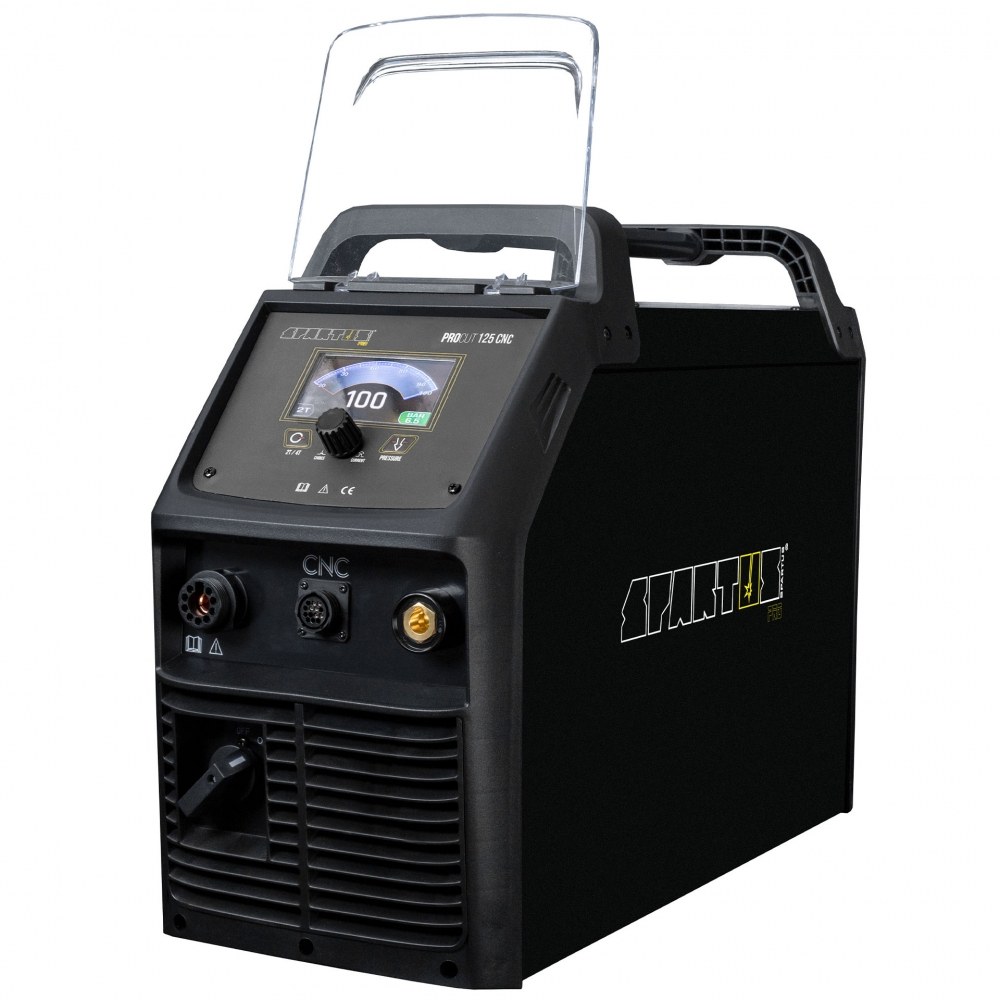

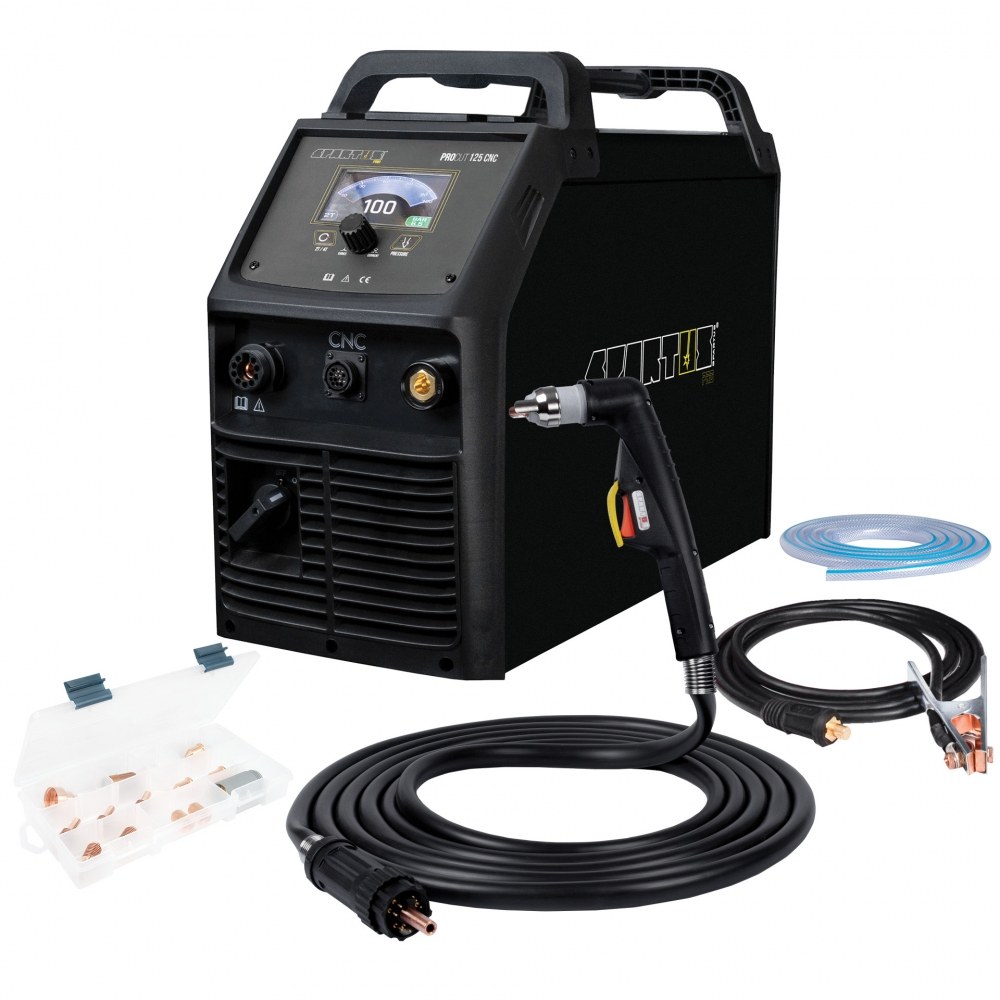

SPARTUS® ProCUT 125CNC is an inverter plasma cutter with integrated CNC control socket. Designed for cutting metals and other electrically conductive materials. It is powered with three-phase 400V source power.
Through the use of modern technology, we have obtained excellent source for professional plasma cutting. Maximum cutting current is 100A and the maximum thickness of the material being cut equals 55mm.
Built-in system of contactless pilot arc ignition without HF – provides excellent quality of cutting and longer life of consumables.

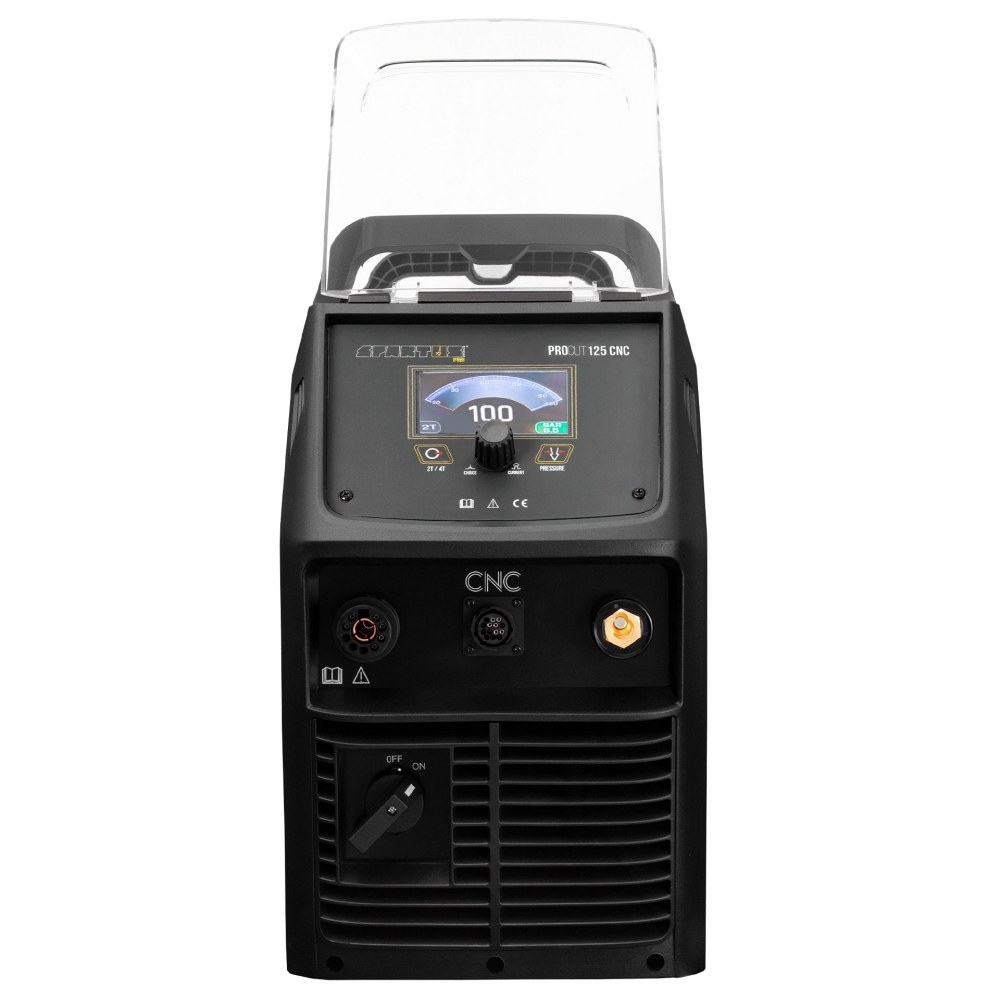

Easy to use panel with LCD display allows for smooth adjustment of the cutting current and setting the appropriate pressure. Additionally, the cutter is equipped with a switch with the 2T / 4T operation mode.
SPARTUS® ProCUT 125CNC will find its application in production sectors, industry and as a source to the CNC plasma tables.
