ProCUT 45PFC package
| Input | ~1× 230V ± 10% 50 / 60 Hz |
|---|---|
| Cutting current | 20 – 40A |
| Duty cycle | 60% |
| Max. cutting thickness | 25mm |
| Output working voltage | 18V |
| Recommended work pressure | 5bar |
| Air consumption | 150l/min |
| Gas post flow | 1 |
| Pilot arc ignition | without HF |
| Power factor (cosφ) | 0.7 |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 14kg |
| Dimensions | 600 x 215 x 405mm |
| Current consumpiton | 19.7A |
Περιγραφή
A MODERN AND LIGHT PLASMA CUTTER

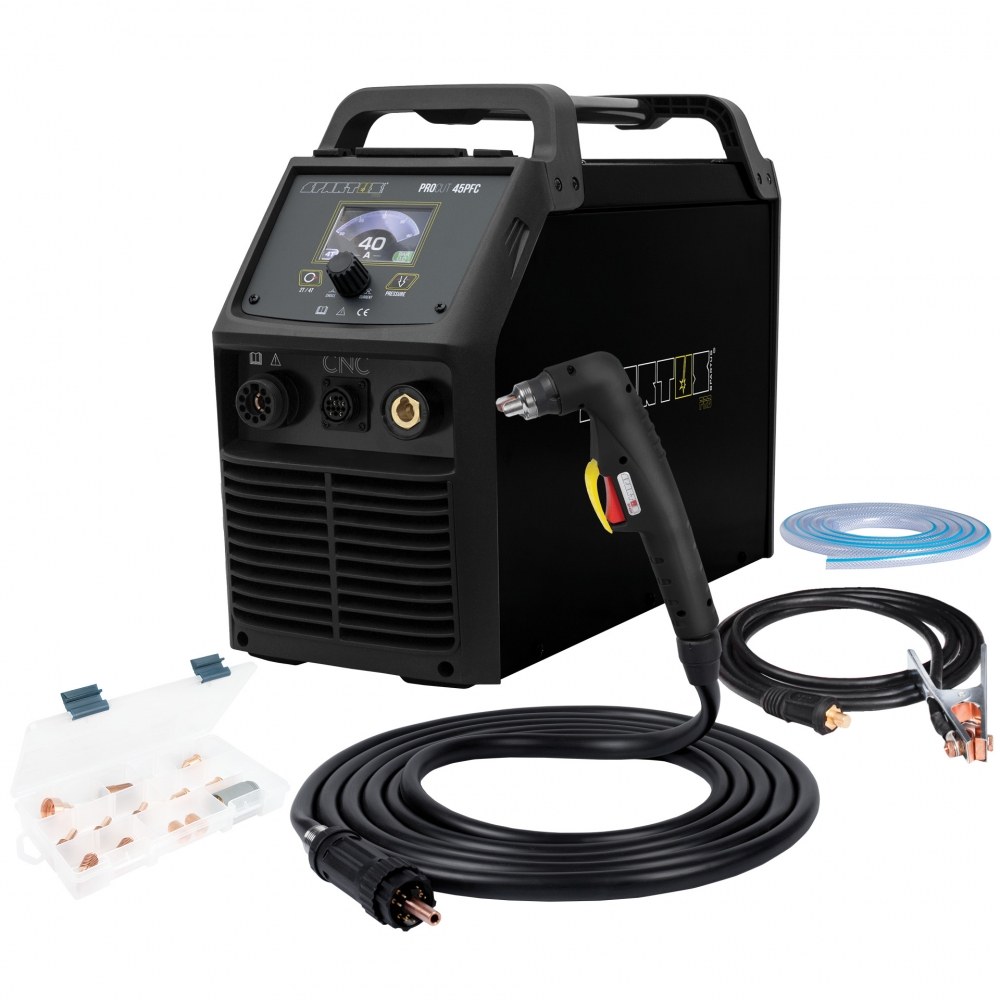

SPARTUS® ProCUT 45PFC is an inverter plasma cutter with integrated CNC control socket. Designed for cutting metals and other electrically conductive materials. It is powered with one-phase 230V source power. Through the use of modern technology, we have obtained excellent source with maximum cutting current 40A. The maximum thickness of cut material is 25mm.
Built-in system of contactless pilot arc ignition without HF – provides excellent quality of cutting edge and longer life of consumables. The easy-to-use panel with an LCD display allows for smooth adjustment of the cutting current and setting the appropriate pressure. In addition, the cutter is equipped with a 2T / 4T mode selector switch.
SPARTUS® ProCUT 45PFC is professional plasma cutter that will find application in manufacturing sectors, industry and as source of CNC plasma tables.
