ProTIG 401P AC/DC source
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| TIG duty cycle | 60% |
| Hot Start | 1 |
| Up slope | 0 – 10s |
| Control plug | 9SPA – SPARTUS® |
| 2T/4T Control | 1 |
| TIG welding current | 10 – 400A |
| MMA welding current | 10 – 400 |
| Power factor (cosφ) | 0.7 |
| Efficiency η | 85% |
| AC wave forms | prostokątny, sinusoidalny, trójkątny |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 31kg |
| Arc ignition | LIFT / HF |
| Dimensions | 700 × 260 × 480mm |
| Gas pre flow | 0.1 – 2s |
| Gas post flow | 0 – 10s |
| Down slope | 0 – 10s |
| TIG Pulse | 1 |
| Pulse Amps | 10 – 400A |
| No-load voltage | 74V |
| Pulse Width | 5 – 95% |
| Pulse frequency | 0.5 – 999Hz |
| AC frequency | 50 – 250Hz |
| AC balance | 10 – 99% |
| Control options | sterowanie w rękojeści UP&DOWN, sterowanie nożne przewodowe, pilot bezprzewodowy |
| Arc Force | 1 |
| Current consumpiton | AC: TIG 25.1 / MMA 19.4 DC: TIG 25.7 / MMA 32.7 |
Περιγραφή
STRONG AND FOOLPROOF TIG AC/DC WITH PULSE

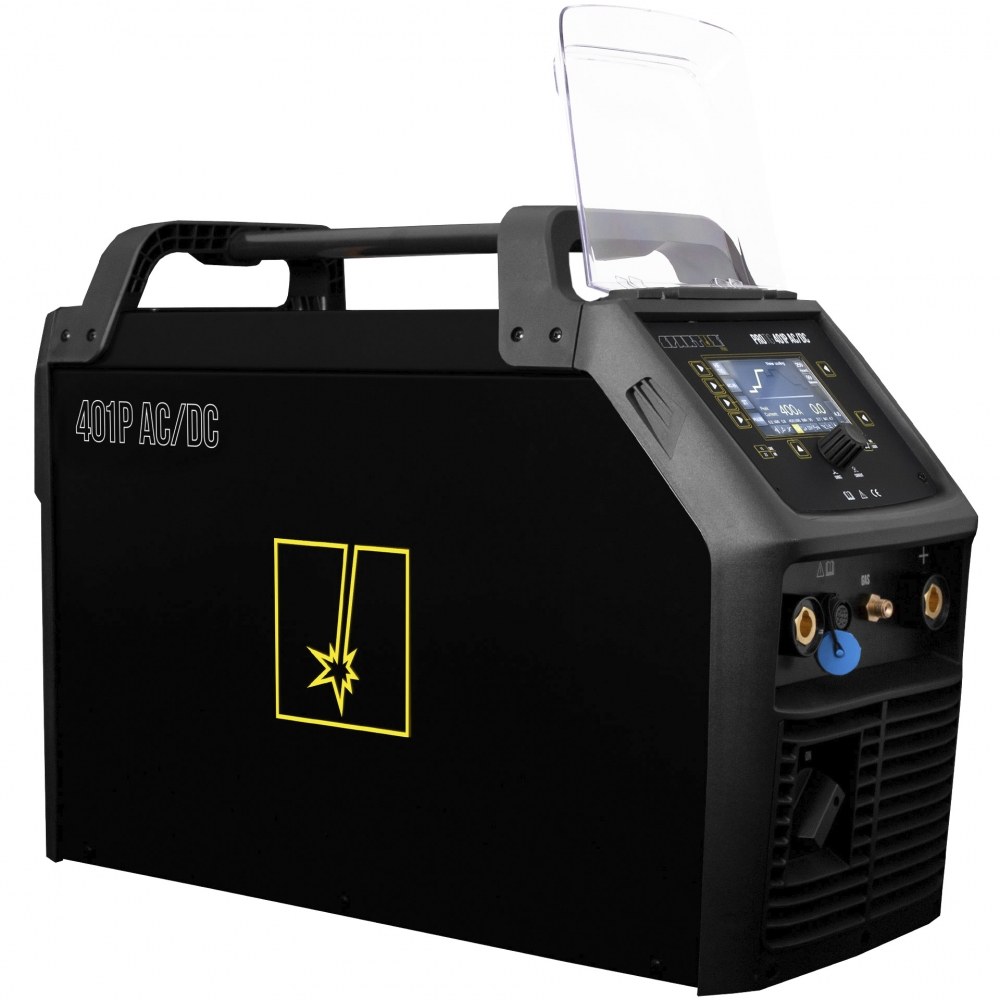

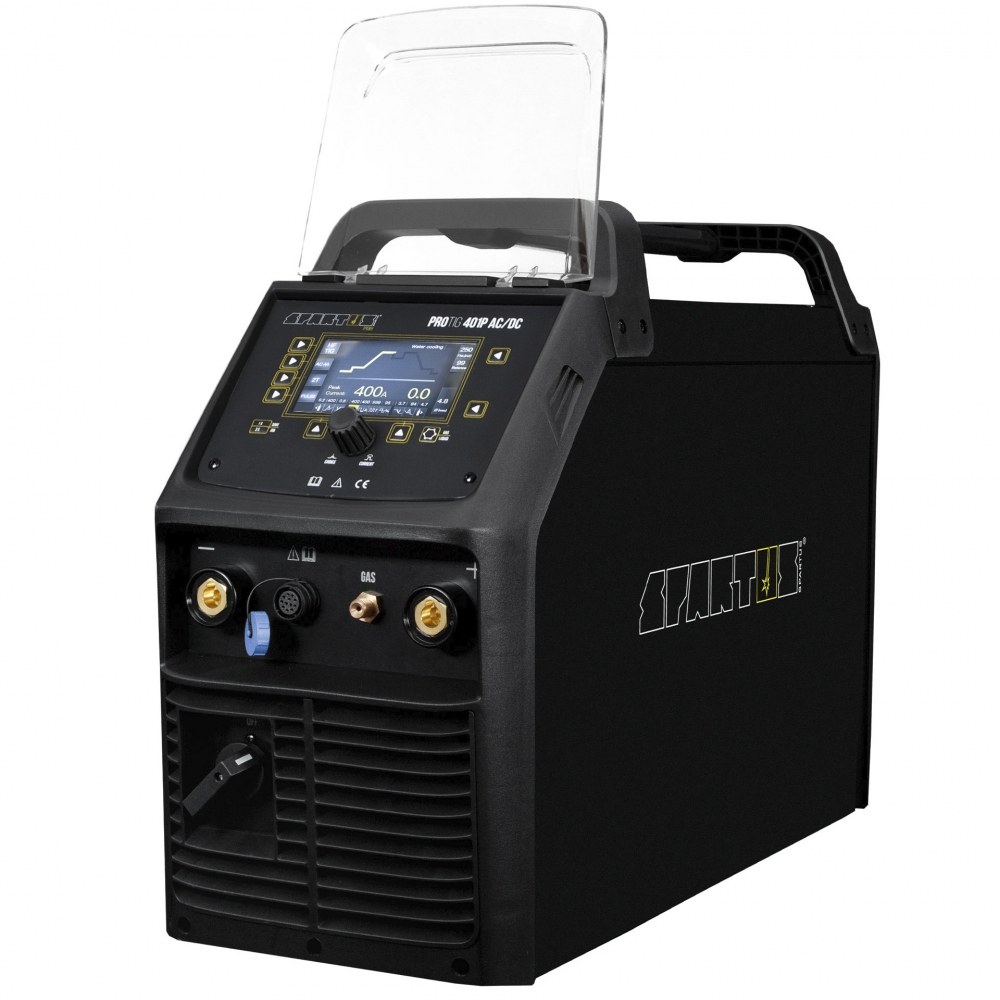

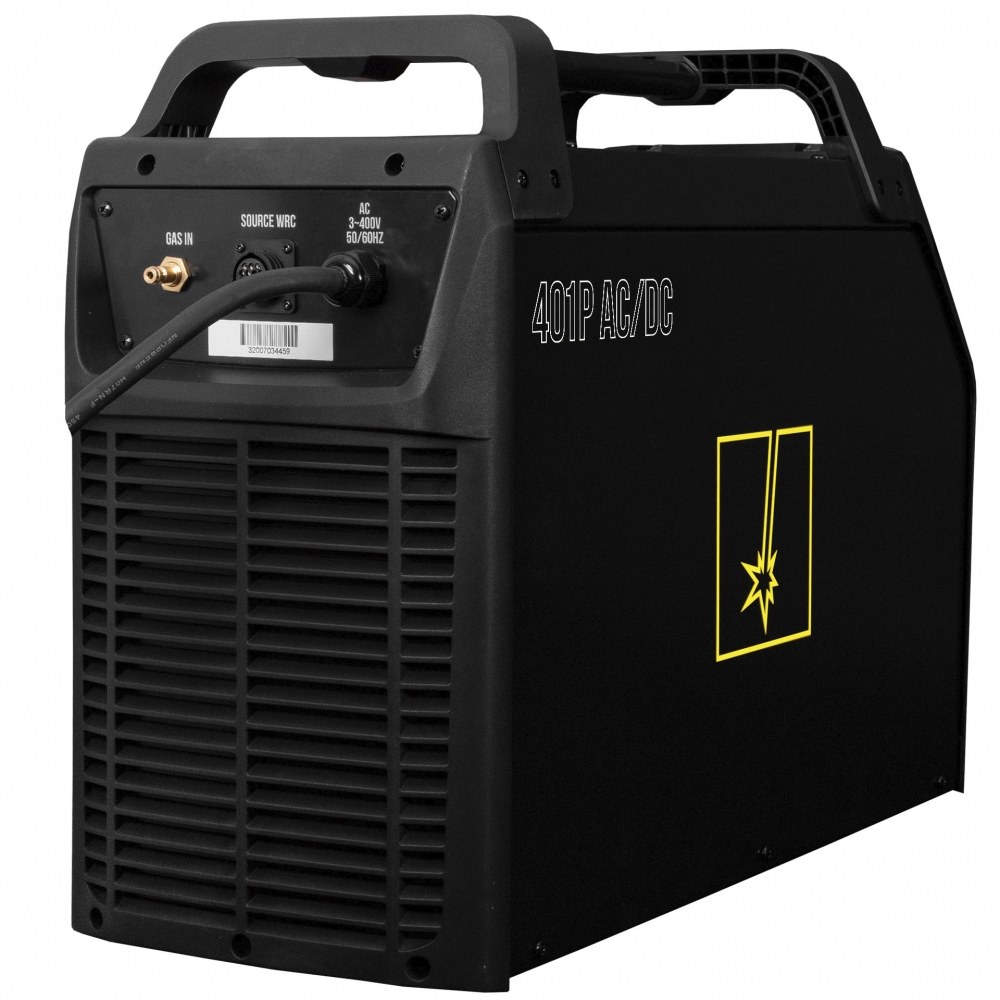

SPARTUS® ProTIG 401P AC/DC is a inverter welder in a modern edition. It allows TIG AC/DC and MMA AC/DC welding with current up to 400A. The device is powered from a 400V three-phase network.
Thanks to the solutions used, the ProTIG 401P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum.
ProTIG 401P AC/DC has functions supporting the welding process in TIG method:
- output AC waveforms: square, sinusoidal, triangular,
- 2T/4T Trigger Control,
- AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
- up slope and down slope adjustment,
- SPOT welding.
ProTIG 401P AC/DC enables MMA AC and MMA DC welding. The process of joining metals in this method is additionally supported by functions such as:
- Arc Force
- Hot Start.
Additionally the device has 10 memory channels. The user can easily save and recall the most used settings.

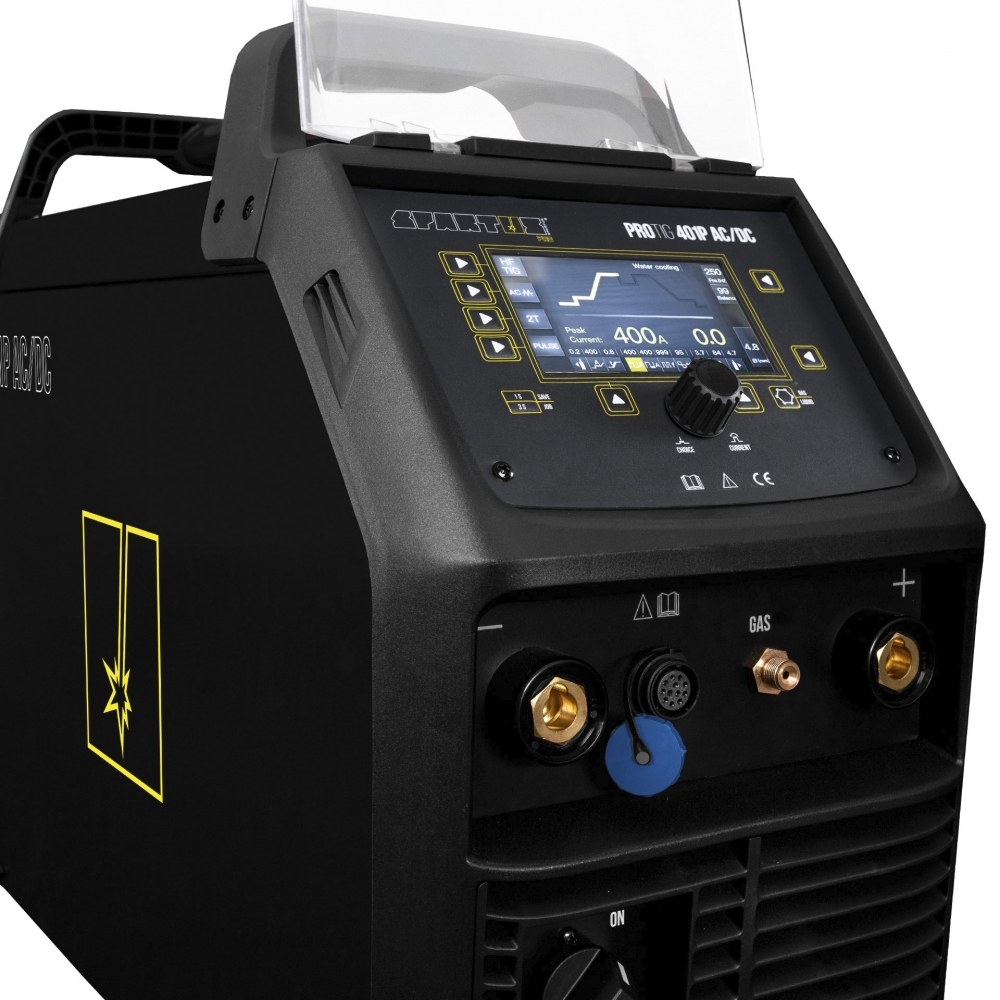

Modern design, LCD function panel and the possibility of wireless control in combination with high-class components makes the ProTIG 401P AC/DC stand out on the market.
The professional device of the SPARTUS® Pro line is perfect suited to the production sector and industry.
