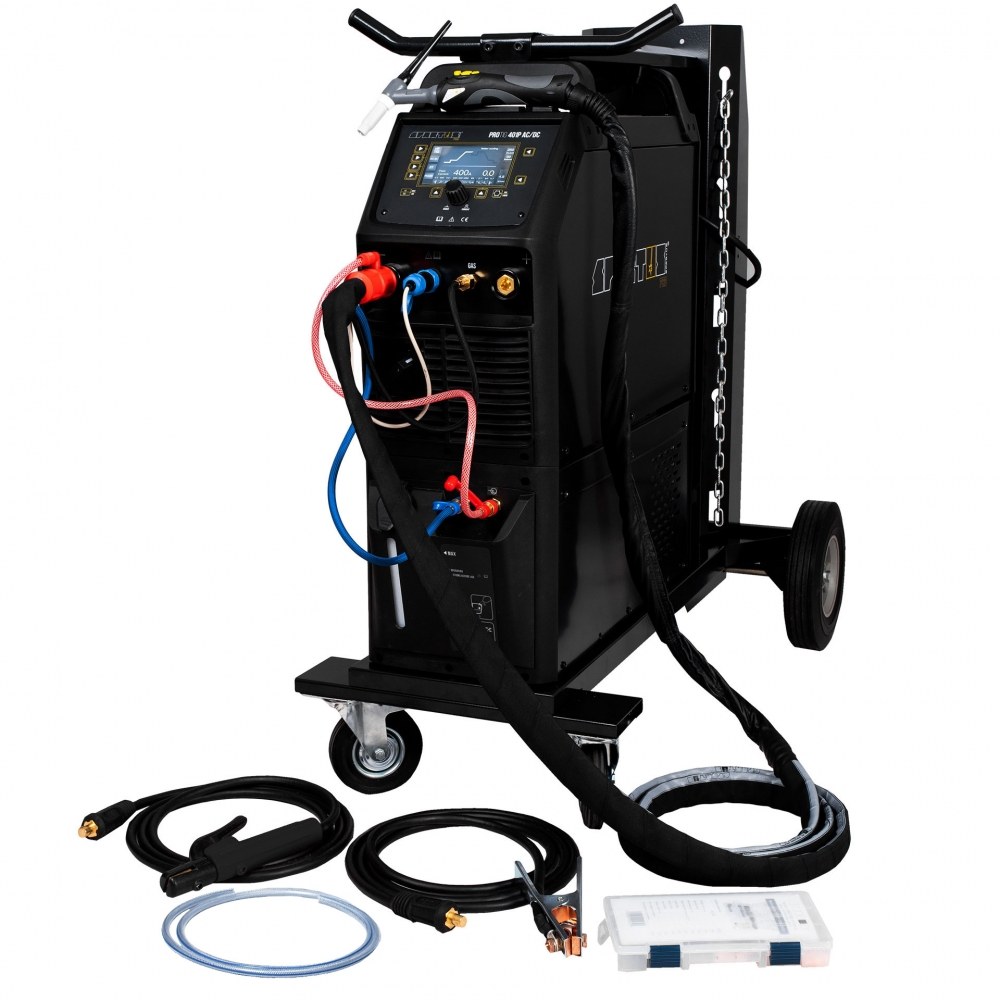

ProTIG 401PW AC/DC [source, cooler, driving set] package with TIG torch SPP 18 4B X – 4m
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Tank capacity | 5l |
| TIG duty cycle | 60% |
| Hot Start | 1 |
| Up slope | 0 – 10s |
| Control plug | 9SPA – SPARTUS® |
| 2T/4T Control | 1 |
| TIG welding current | 10 – 400A |
| MMA welding current | 10 – 400 |
| Power factor (cosφ) | 0.7 |
| Water cooler | 1 |
| Efficiency η | 85% |
| AC wave forms | prostokątny, sinusoidalny, trójkątny |
| Insulation class | H |
| Protection class | IP21S |
| Weight | 78.5kg |
| Dimensions | 1150 x 600 x 1200mm |
| Arc ignition | HF, bez HF |
| Gas pre flow | 0.1 – 2s |
| Gas post flow | 0 – 10s |
| Down slope | 0 – 10s |
| TIG Pulse | 1 |
| Pulse Amps | 10 – 400A |
| No-load voltage | 74V |
| Pulse Width | 5 – 95% |
| Pulse frequency | 0.5 – 999Hz |
| AC frequency | 50 – 250Hz |
| AC balance | 10 – 99% |
| Control options | sterowanie w rękojeści UP&DOWN, sterowanie nożne przewodowe, pilot bezprzewodowy |
| Arc Force | 1 |
| Current consumpiton | AC: TIG 25.1 / MMA 19.4 DC: TIG 25.7 / MMA 32.7 |
| TIG | AC/DC |
Περιγραφή
STRONG AND FOOLPROOF TIG AC / DC WITH PULSE
SPARTUS® ProTIG 401P AC/DC is a inverter welder in a modern edition. It allows TIG AC/DC and MMA AC/DC welding with current up to 400A. The device is powered from a 400V three-phase network. Thanks to the solutions used, the ProTIG 401P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum. ProTIG 401P AC/DC has functions supporting the welding process in TIG method:
-
- output AC waveforms: square, sinusoidal, triangular,
-
- 2T/4T Trigger Control,
-
- AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
-
- up slope and down slope adjustment,
-
- SPOT welding.
ProTIG 401P AC/DC enables MMA AC and MMA DC welding. The process of joining metals in this method is additionally supported by functions such as:
-
- Arc Force
-
- Hot Start.
Additionally the device has 10 memory channels. The user can easily save and recall the most used settings.

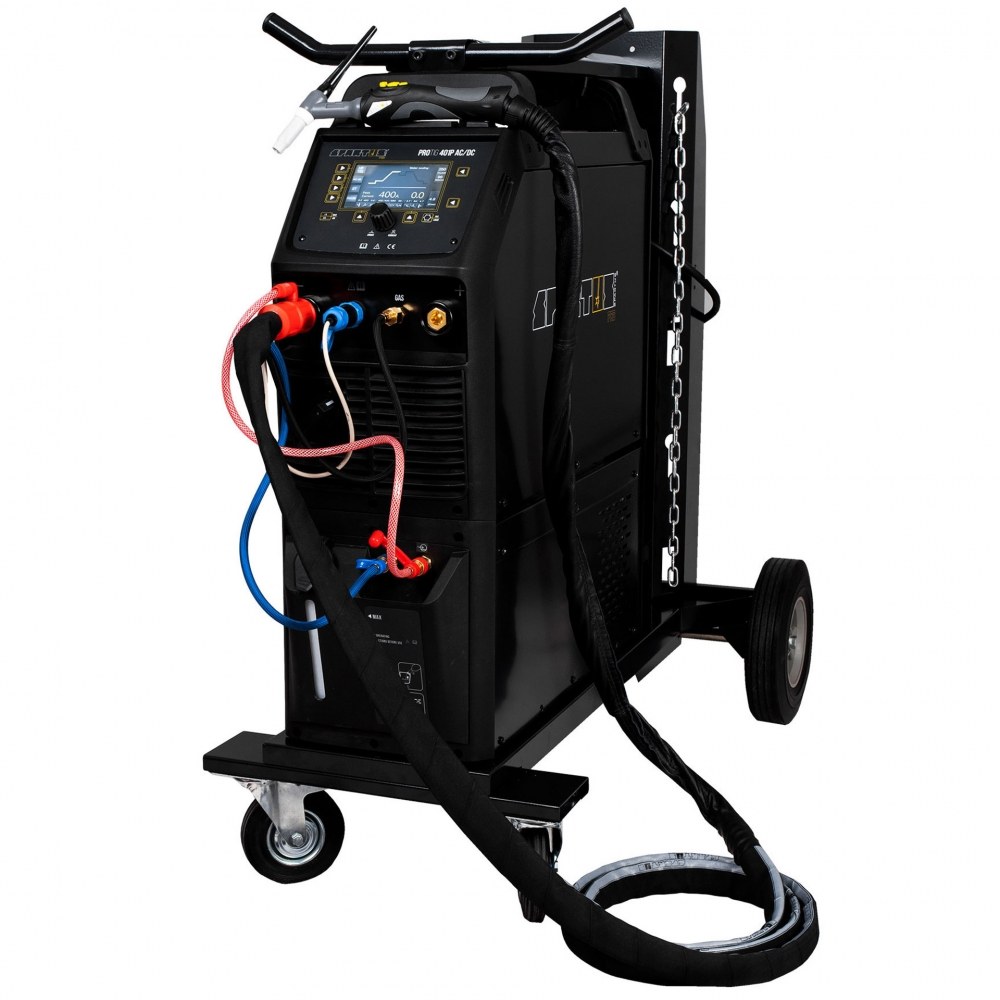

The ProTIG 401PW AC/DC model is additionally equipped with an integrated liquid cooler, whichensures efficient cooling of the torch during welding with high currents. The whole is placed ona transport cart with space for a shielding gas cylinder.
Modern design, LCD function panel and the possibility of wireless control in combination with high-class components makes the ProTIG 401P AC/DC stand out on the market.
The professional device of the SPARTUS® Pro line is perfect suited to the production sector and industry.
