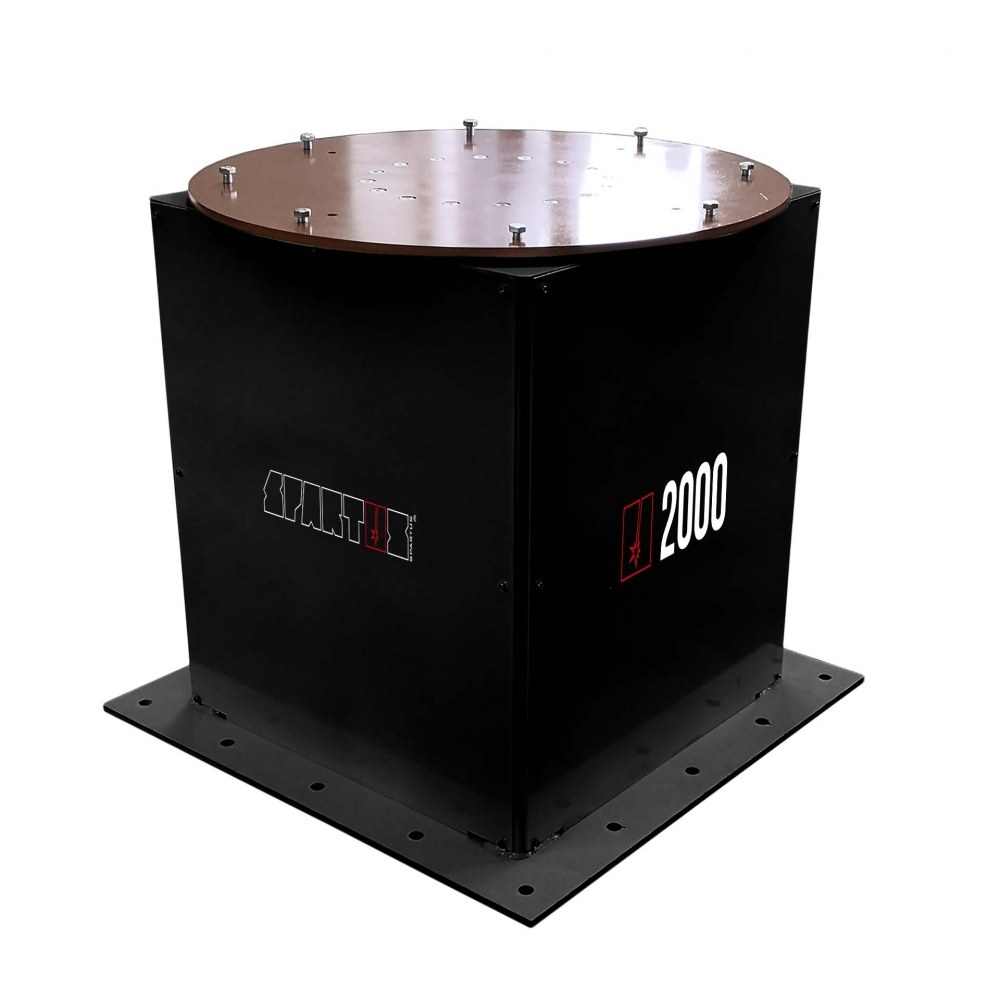

Rotary table SPARTUS® 2000
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Diameter | 500 – 1000mm |
| Load capacity | 2000kg |
| Rotation speed | 0,12 – 1,2 / 0,5 – 5r/min |
Περιγραφή
The SPARTUS® rotary tables have been specially designed to work in a vertical position. Adjustable start at smooth rotation with smooth braking is due to the use of the highest class inverter-controlled motors. The compact and compact design of the device provides good access to the workpiece, allowing for precise and comfortable work.
Control interface: manual control panel + foot switch (on separate wires)
Advantages:
- inverter-based motor control
- control pendant for work control
- foot switch
- safety button
With an additional payment, it is possible to change the control interface to manual control panel + two foot / right-left buttons (on separate wires) or integrated, free-standing control panel.
