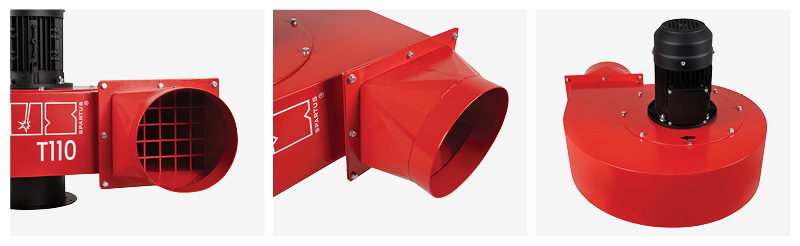

T110 exhaust fans
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| Power | 1,1kW |
| Rotation speed | 2800rpm |
| Ventilator | T110 |
| Inlet diameter | 160mm |
| Noise level | 79 dB(A) |
| Outlet diameter | 200mm |
| Flow | 1900m³/h |
| Protection class | IP54 |
| Weight | 40kg |
Περιγραφή
SPARTUS® exhaust fans
SPARTUS® exhaust fans are designed to work with extraction devices and systems that remove contaminated air. Their aluminium rotors placed in metal coverings ensure high flow efficiency and a spark-free design. SPARTUS® fans are intended for transporting non-explosive and chemically non-aggressive gases at temperatures up to 40°C. These devices excel at removing smoke or dust, especially in universal localized extraction systems, with retractable exhaust duct mechanisms or slotted duct extracts.
